Сензори за налягане

Pressure Sensors

3216 продукта · стр. 90/134

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

6087758

PFT-2DUIM

SICK

Pressure sensors | PFT-2 | PFT-2DUIM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar, 0 psi ... 362.6 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087759

PFT-2DUKM

SICK

Pressure sensors | PFT-2 | PFT-2DUKM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087760

PFT-2DULM

SICK

Pressure sensors | PFT-2 | PFT-2DULM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450.4 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087721

PFT-2LUCM

SICK

Pressure sensors | PFT-2 | PFT-2LUCM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087722

PFT-2LUDM

SICK

Pressure sensors | PFT-2 | PFT-2LUDM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087723

PFT-2LUEM

SICK

Pressure sensors | PFT-2 | PFT-2LUEM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36.3 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087724

PFT-2LUFM

SICK

Pressure sensors | PFT-2 | PFT-2LUFM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 5 bar, 0 psi ... 72.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087725

PFT-2LUGM

SICK

Pressure sensors | PFT-2 | PFT-2LUGM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087726

PFT-2LUIM

SICK

Pressure sensors | PFT-2 | PFT-2LUIM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar, 0 psi ... 362.6 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087727

PFT-2LUKM

SICK

Pressure sensors | PFT-2 | PFT-2LUKM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087728

PFT-2LULM

SICK

Pressure sensors | PFT-2 | PFT-2LULM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450.4 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6082407

PFT-FAB010SF2OHCAMSSZ

SICK

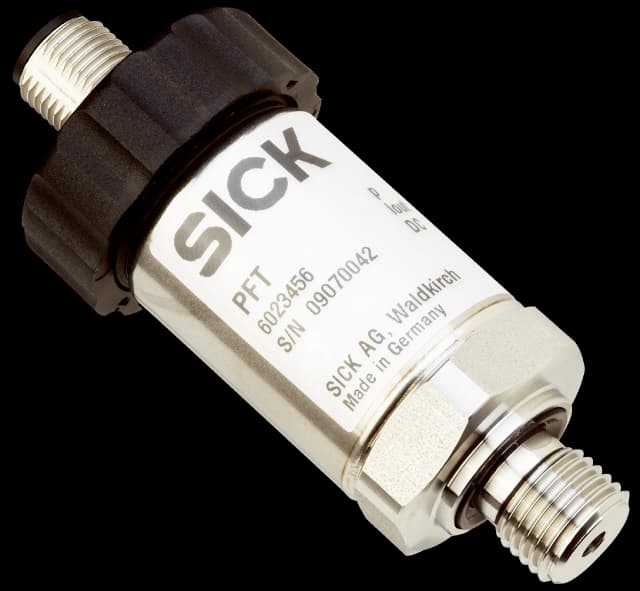

Pressure sensors | PFT | PFT-FAB010SF2OHCAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span | Process connection: G ½ B flush mounted | Pressure port: Front-flush membrane | Process temperature: –20 °C ... +150 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 10 V DC ... 30 V DC

6076813

PFT-FAB016AF2OSSAMSSZ

SICK

Pressure sensors | PFT | PFT-FAB016AF2OSSAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.25 %, of the span | Process connection: G ½ B flush mounted | Pressure port: Front-flush membrane | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 10 V DC ... 30 V DC

6048464

PFT-FAB016SF2OHCAMSSZ

SICK

Pressure sensors | PFT | PFT-FAB016SF2OHCAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) | Process connection: G ½ B flush mounted | Pressure po

6066729

PFT-FAB1X0AF1OHCVMSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X0AF1OHCVMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 0.25 %, of the span | Process connection: G 1 B flush-mounted | Pressure port: Front-flush membrane | Process temperature: –20 °C ... +150 °C | Seal: FKM | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 14 V DC ... 30 V DC

6047927

PFT-FAB1X0SF1OHCAMSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X0SF1OHCAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) | Process connection: G 1 B flush-mounted | Pressure por

6068426

PFT-FAB1X0SF1OSSALSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X0SF1OSSALSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 0.5 %, of the span | Process connection: G 1 B flush-mounted | Pressure port: Front-flush membrane | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: L-connector (DIN EN 175301-803 A), IP65 | Supply voltage: 10 V DC ... 30 V DC

6070239

PFT-FAB1X0SF1OSSULSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X0SF1OSSULSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 0.5 %, of the span | Process connection: G 1 B flush-mounted | Pressure port: Front-flush membrane | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 5 V, 3-wire | Connection type: L-connector (DIN EN 175301-803 A), IP65 | Supply voltage: 10 V DC ... 30 V DC

6049196

PFT-FAB1X6SF1OSSALSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X6SF1OSSALSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1.6 bar | Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) | Process connection: G 1 B flush-mounted | Pressure p

6070285

PFT-FAB1X6SF1OSSAMSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X6SF1OSSAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1.6 bar | Accuracy: ≤ ± 0.5 %, of the span | Process connection: G 1 B flush-mounted | Pressure port: Front-flush membrane | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 10 V DC ... 30 V DC

6083588

PFT-FAB1X6SF1OSSVLSSZ

SICK

Pressure sensors | PFT | PFT-FAB1X6SF1OSSVLSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1.6 bar | Accuracy: ≤ ± 0.5 %, of the span | Process connection: G 1 B flush-mounted | Pressure port: Front-flush membrane | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: L-connector (DIN EN 175301-803 A), IP65 | Supply voltage: 14 V DC ... 30 V DC

6050900

PFT-FAB2X5AF2OHCALSSZ

SICK

Pressure sensors | PFT | PFT-FAB2X5AF2OHCALSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 0.25 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) | Process connection: G ½ B flush mounted | Pressure

6067163

PFT-FAB2X5AF2OSCAMSSZ

SICK

Pressure sensors | PFT | PFT-FAB2X5AF2OSCAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 0.25 %, of the span | Process connection: G ½ B flush mounted | Pressure port: Front-flush membrane | Process temperature: –30 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 10 V DC ... 30 V DC

6048439

PFT-FAB2X5SF2OHCAMSSZ

SICK

Pressure sensors | PFT | PFT-FAB2X5SF2OHCAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) | Process connection: G ½ B flush mounted | Pressure p
