Сензори за налягане
Pressure Sensors
3216 продукта · стр. 88/134
PET-1RB100G1NSALA
Pressure sensors | PET | PET-1RB100G1NSALA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: For angled plug according to DIN EN 175301-803 A (without mating connector), IP65 | Supply voltage: 8 V D
PET-1RB100G1NSAMA
Pressure sensors | PET | PET-1RB100G1NSAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
PET-1RB160G1FSAMA
Pressure sensors | PET | PET-1RB160G1FSAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 160 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
PET-1RB250G1NMAMA
Pressure sensors | PET | PET-1RB250G1NMAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 250 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.6 mm pressure port | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
PET-1RB250G1NMVLC
Pressure sensors | PET | PET-1RB250G1NMVLC | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 250 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.6 mm pressure port | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: For angled plug according to DIN EN 175301-803 A (without mating connector), IP65 | Supply volt
PET-1RB250G1NSAMA
Pressure sensors | PET | PET-1RB250G1NSAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 250 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
PET-1RB250G1NSVMC
Pressure sensors | PET | PET-1RB250G1NSVMC | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 250 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 14 V DC ... 30 V DC
PET-1RB400G1FMAMA
Pressure sensors | PET | PET-1RB400G1FMAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.6 mm pressure port (avialable on request) | Process temperature: –30 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V
PET-1RB400G1FSAMA
Pressure sensors | PET | PET-1RB400G1FSAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
PET-1RB6X0G1NSAMA
Pressure sensors | PET | PET-1RB6X0G1NSAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 6 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
PET-1RB6X0G80SAMA
Pressure sensors | PET | PET-1RB6X0G80SAMA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 6 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ⅛ B (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC

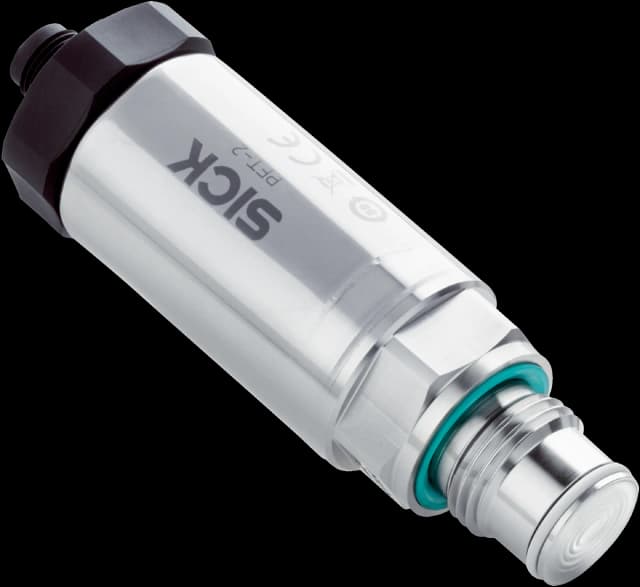

PFT-23PCM
Pressure sensors | PFT-2 | PFT-23PCM | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PDM
Pressure sensors | PFT-2 | PFT-23PDM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PEM
Pressure sensors | PFT-2 | PFT-23PEM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36.3 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PFM
Pressure sensors | PFT-2 | PFT-23PFM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 5 bar, 0 psi ... 72.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PGM
Pressure sensors | PFT-2 | PFT-23PGM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PIM
Pressure sensors | PFT-2 | PFT-23PIM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar, 0 psi ... 362.6 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PKM
Pressure sensors | PFT-2 | PFT-23PKM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23PLM
Pressure sensors | PFT-2 | PFT-23PLM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450.4 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23QCM
Pressure sensors | PFT-2 | PFT-23QCM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23QDM
Pressure sensors | PFT-2 | PFT-23QDM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23QEM
Pressure sensors | PFT-2 | PFT-23QEM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36.3 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23QFM
Pressure sensors | PFT-2 | PFT-23QFM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 5 bar, 0 psi ... 72.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
PFT-23QGM
Pressure sensors | PFT-2 | PFT-23QGM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
