Сензори за налягане

Pressure Sensors

3216 продукта · стр. 89/134

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

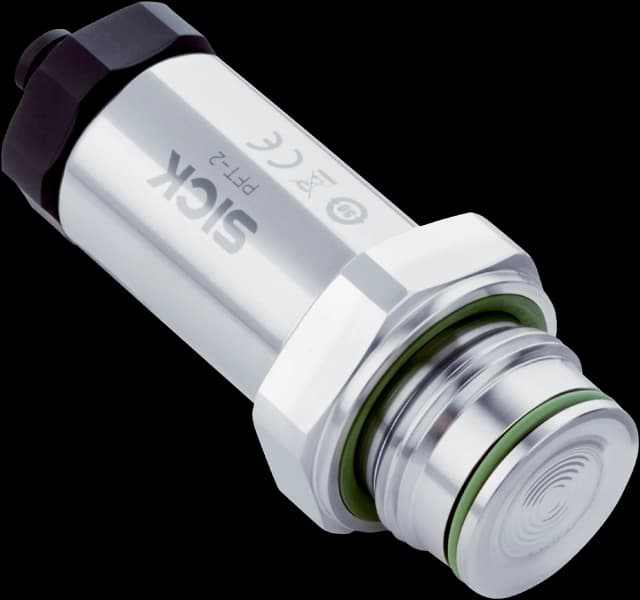

6087750

PFT-23QIM

SICK

Pressure sensors | PFT-2 | PFT-23QIM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar, 0 psi ... 362.6 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087751

PFT-23QKM

SICK

Pressure sensors | PFT-2 | PFT-23QKM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087752

PFT-23QLM

SICK

Pressure sensors | PFT-2 | PFT-23QLM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450.4 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087737

PFT-2C5CM

SICK

Pressure sensors | PFT-2 | PFT-2C5CM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087738

PFT-2C5DM

SICK

Pressure sensors | PFT-2 | PFT-2C5DM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087739

PFT-2C5EM

SICK

Pressure sensors | PFT-2 | PFT-2C5EM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36.3 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087740

PFT-2C5FM

SICK

Pressure sensors | PFT-2 | PFT-2C5FM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 5 bar, 0 psi ... 72.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087741

PFT-2C5GM

SICK

Pressure sensors | PFT-2 | PFT-2C5GM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087742

PFT-2C5IM

SICK

Pressure sensors | PFT-2 | PFT-2C5IM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar, 0 psi ... 362.6 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087743

PFT-2C5KM

SICK

Pressure sensors | PFT-2 | PFT-2C5KM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087744

PFT-2C5LM

SICK

Pressure sensors | PFT-2 | PFT-2C5LM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450.4 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

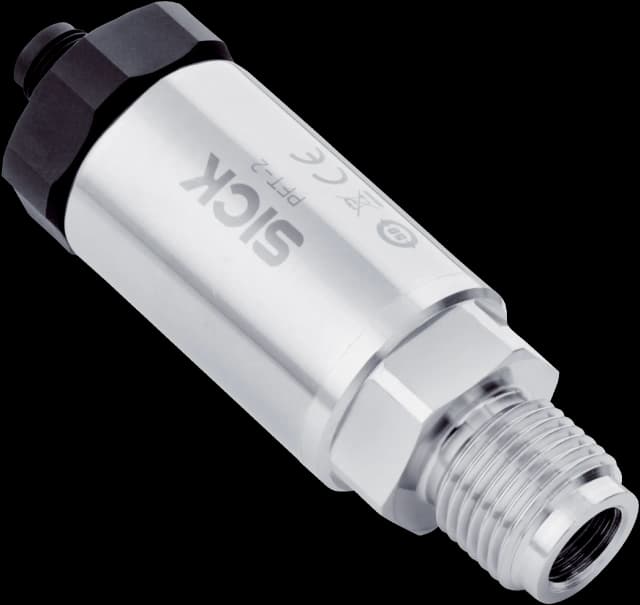

6087761

PFT-2DNCM

SICK

Pressure sensors | PFT-2 | PFT-2DNCM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087762

PFT-2DNDM

SICK

Pressure sensors | PFT-2 | PFT-2DNDM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087763

PFT-2DNEM

SICK

Pressure sensors | PFT-2 | PFT-2DNEM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36.3 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087764

PFT-2DNFM

SICK

Pressure sensors | PFT-2 | PFT-2DNFM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 5 bar, 0 psi ... 72.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087765

PFT-2DNGM

SICK

Pressure sensors | PFT-2 | PFT-2DNGM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087766

PFT-2DNIM

SICK

Pressure sensors | PFT-2 | PFT-2DNIM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar, 0 psi ... 362.6 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087767

PFT-2DNKM

SICK

Pressure sensors | PFT-2 | PFT-2DNKM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar, 0 psi ... 870.2 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087768

PFT-2DNLM

SICK

Pressure sensors | PFT-2 | PFT-2DNLM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450.4 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ external + G ¼ internal (ISO 228-1) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

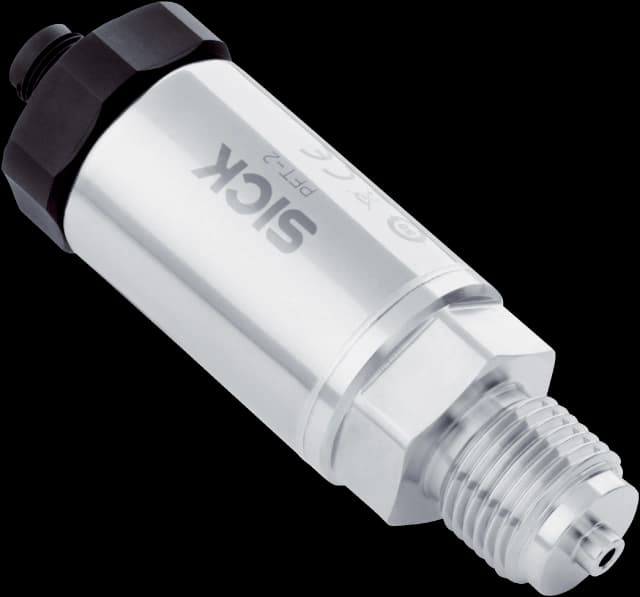

6087753

PFT-2DUCM

SICK

Pressure sensors | PFT-2 | PFT-2DUCM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087754

PFT-2DUDM

SICK

Pressure sensors | PFT-2 | PFT-2DUDM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087755

PFT-2DUEM

SICK

Pressure sensors | PFT-2 | PFT-2DUEM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36.3 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087756

PFT-2DUFM

SICK

Pressure sensors | PFT-2 | PFT-2DUFM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 5 bar, 0 psi ... 72.5 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC

6087757

PFT-2DUGM

SICK

Pressure sensors | PFT-2 | PFT-2DUGM | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1) | Process connection: G ½ B (EN 837) | Process temperature: –40 °C ... +100 °C | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67 | Supply voltage: 12 V DC ... 35 V DC
