Сензори за дебит
Flow Sensors
83 продукта · стр. 1/4
FFUC10-1C1SR
Flow sensors | FFU | FFUC10-1C1SR | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC10-1G1IO
Flow sensors | FFU | FFUC10-1G1IO | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: G ½ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC10-1G1SR
Flow sensors | FFU | FFUC10-1G1SR | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: G ½ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC10-1N1IO
Flow sensors | FFU | FFUC10-1N1IO | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: ½" NPT | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC15-1C1SR
Flow sensors | FFU | FFUC15-1C1SR | Nominal width measuring tube: DN 15 | Maximum flow: ≤ 36 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC15-1G1IO
Flow sensors | FFU | FFUC15-1G1IO | Nominal width measuring tube: DN 15 | Maximum flow: ≤ 36 l/min | Wetted parts: PPSU, EPDM | Process connection: G ¾ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC15-1G1SR
Flow sensors | FFU | FFUC15-1G1SR | Nominal width measuring tube: DN 15 | Maximum flow: ≤ 36 l/min | Wetted parts: PPSU, EPDM | Process connection: G ¾ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUC20-1C1SR
Flow sensors | FFU | FFUC20-1C1SR | Nominal width measuring tube: DN 20 | Maximum flow: ≤ 60 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC20-1G1IO
Flow sensors | FFU | FFUC20-1G1IO | Nominal width measuring tube: DN 20 | Maximum flow: ≤ 60 l/min | Wetted parts: PPSU, EPDM | Process connection: G 1 | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC20-1G1SR
Flow sensors | FFU | FFUC20-1G1SR | Nominal width measuring tube: DN 20 | Maximum flow: ≤ 60 l/min | Wetted parts: PPSU, EPDM | Process connection: G 1 | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC20-1N1IO
Flow sensors | FFU | FFUC20-1N1IO | Nominal width measuring tube: DN 20 | Maximum flow: ≤ 60 l/min | Wetted parts: PPSU, EPDM | Process connection: 1" NPT | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC25-1C1SR
Flow sensors | FFU | FFUC25-1C1SR | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 240 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC25-1G1IO
Flow sensors | FFU | FFUC25-1G1IO | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 240 l/min | Wetted parts: PPSU, EPDM | Process connection: G 1 ¼ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC25-1G1SR
Flow sensors | FFU | FFUC25-1G1SR | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 240 l/min | Wetted parts: PPSU, EPDM | Process connection: G 1 ¼ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC25-1N1IO
Flow sensors | FFU | FFUC25-1N1IO | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 240 l/min | Wetted parts: PPSU, EPDM | Process connection: 1 ¼" NPT | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar
FFUC25-1N1SR
Flow sensors | FFU | FFUC25-1N1SR | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 240 l/min | Wetted parts: PPSU, EPDM | Process connection: 1 ¼" NPT | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar

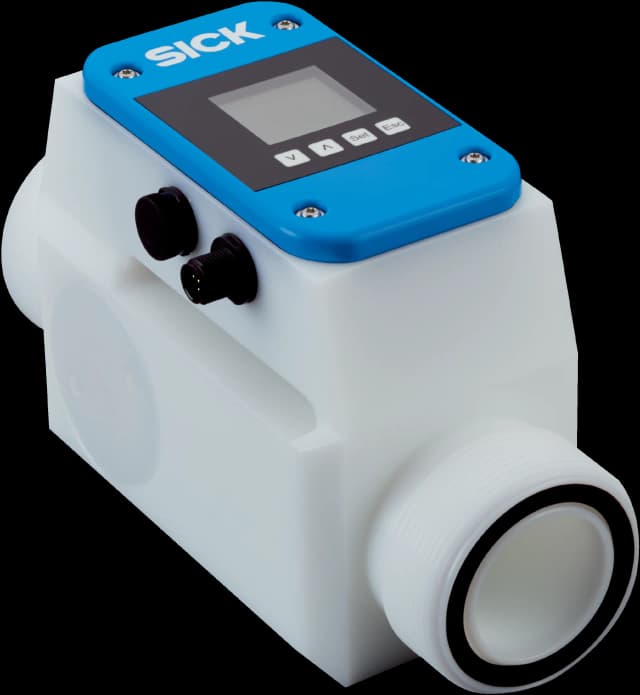

FFUC25-3G1IO
Flow sensors | FFU | FFUC25-3G1IO | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 180 l/min | Wetted parts: HDPE (polyethylene), EPDM | Process connection: GF connection G 1 ½ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +50 °C | Process pressure: ≤ 10 ba
FFUC32-3G1IO
Flow sensors | FFU | FFUC32-3G1IO | Nominal width measuring tube: DN 32 | Maximum flow: ≤ 300 l/min | Wetted parts: HDPE (polyethylene), EPDM | Process connection: GF connection G 2 | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +50 °C | Process pressure: ≤ 10 bar
FFUC40-3G1IO
Flow sensors | FFU | FFUC40-3G1IO | Nominal width measuring tube: DN 40 | Maximum flow: ≤ 480 l/min | Wetted parts: HDPE (polyethylene), EPDM | Process connection: GF connection G 2 ¼ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +50 °C | Process pressure: ≤ 10 ba
FFUC50-3G1IO
Flow sensors | FFU | FFUC50-3G1IO | Nominal width measuring tube: DN 50 | Maximum flow: ≤ 900 l/min | Wetted parts: HDPE (polyethylene), EPDM | Process connection: GF connection G 2 ¾ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +50 °C | Process pressure: ≤ 10 ba
FFUS10-1C1IO
Flow sensors | FFU | FFUS10-1C1IO | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUS10-1C1SR
Flow sensors | FFU | FFUS10-1C1SR | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUS10-1G1IO
Flow sensors | FFU | FFUS10-1G1IO | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: G ½ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 1 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, dosing output, flow direction (dependent on type) | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
FFUS10-1G1SR
Flow sensors | FFU | FFUS10-1G1SR | Nominal width measuring tube: DN 10 | Maximum flow: ≤ 21 l/min | Wetted parts: PPSU, EPDM | Process connection: G ½ | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 16 bar
