Влакнооптични сензори

Fiber Optic Sensors

478 продукта · стр. 5/20

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

5308091

LL3-DH01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

5321260

LL3-DH01-03

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH01-03 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 3,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

5308092

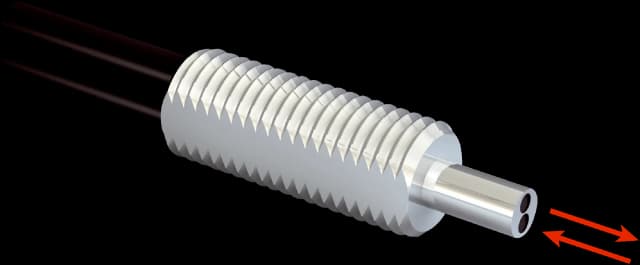

LL3-DH02

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH02 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

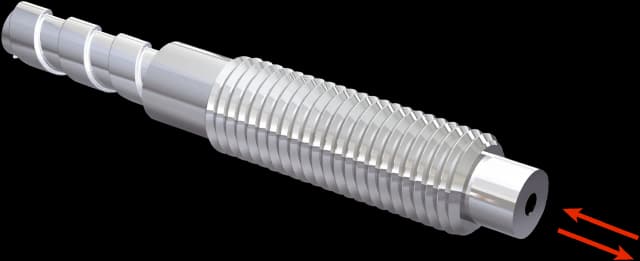

5324787

LL3-DH03

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH03 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer

5324788

LL3-DH03-03

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH03-03 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 3,000 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer

5340698

LL3-DH03750

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH03750 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 750 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer

5326022

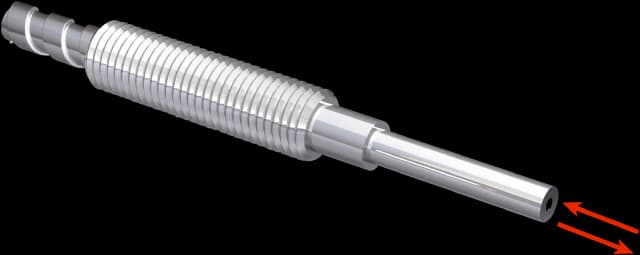

LL3-DH04

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH04 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, Long end sleeve, Bendable sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer

5326031

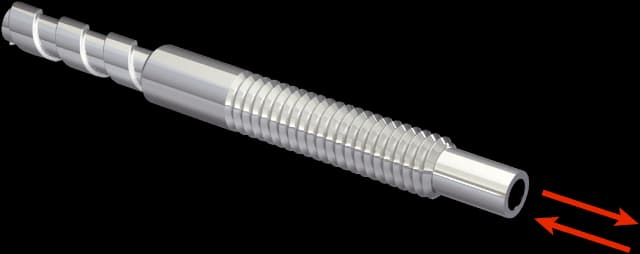

LL3-DH07

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH07 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 1,000 mm | Thread diameter (housing): M4 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M4 hexagon nut, 1 x washer

5342745

LL3-DH072000

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH072000 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M4 hexagon nut, 1 x washer

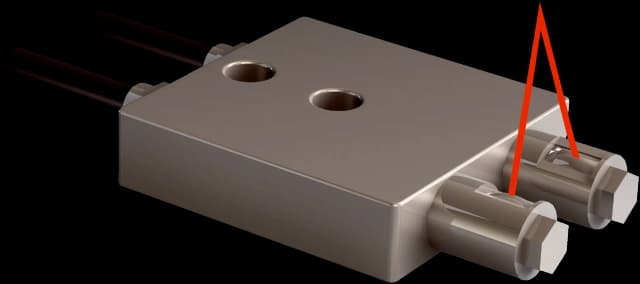

5326025

LL3-DH08

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH08 | Functional principle: Proximity system | Fiber-optic head design: Flat type | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Chemical-resistant plastic | Fiber head material: Stainless steel

5326023

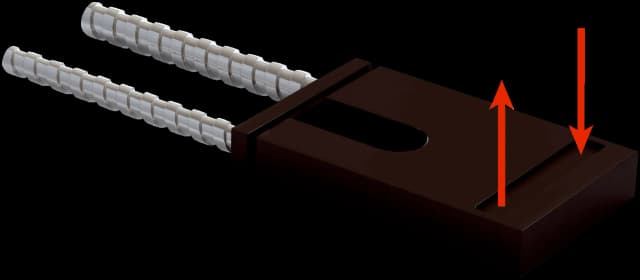

LL3-DH10

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH10 | Functional principle: Proximity system | Fiber-optic head design: Flat type | Fiber length: 3,000 mm | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Plastic

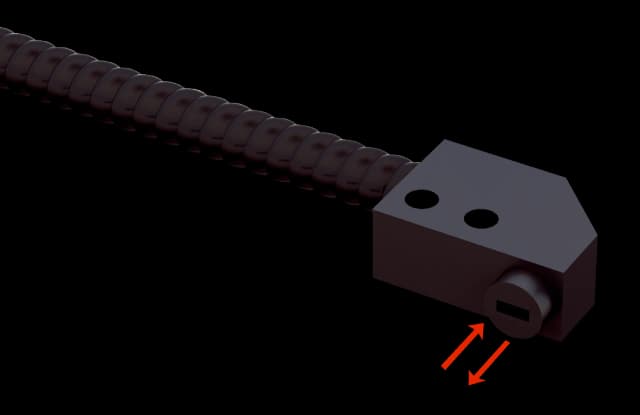

2106741

LL3-DH5010000

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH5010000 | Functional principle: Proximity system | Fiber-optic head design: Flat type, 90° deflection | Fiber length: 10,000 mm | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Aluminum

2083802

LL3-DH50500

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DH50500 | Functional principle: Proximity system | Fiber-optic head design: Flat type, 90° deflection | Fiber length: 500 mm | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Aluminum

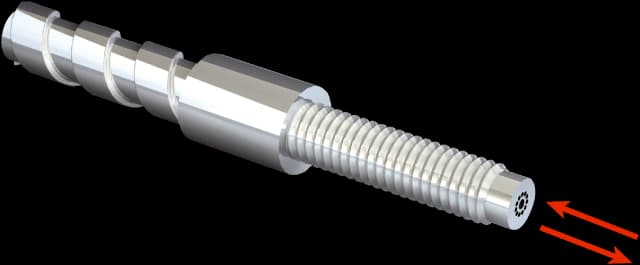

5325989

LL3-DJ01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DJ01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 1,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Stainless steel | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M3 hexagon nut, 1 x washer, adapter sleeves, 1 x BF-WLL160-10 (1.0 mm) adapter sleeve, 1 x BF-WLL160-13 (1.3 mm) adapter sleeve, FC fiber cutter (5304141)

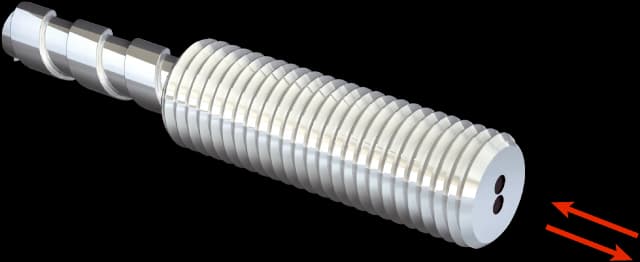

5325992

LL3-DJ02

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DJ02 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 1,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer

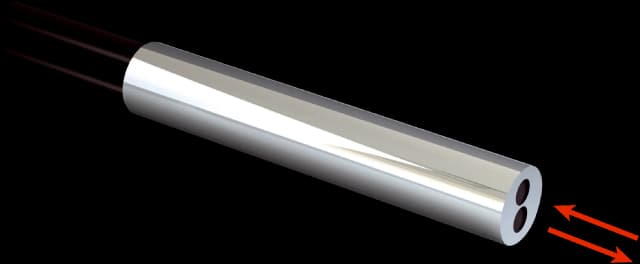

5313020

LL3-DK04

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK04 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)

5342636

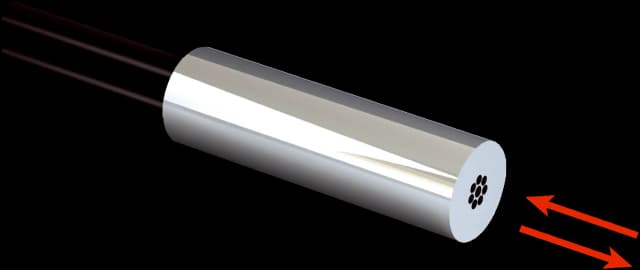

LL3-DK051000

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK051000 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve | Fiber length: 1,000 mm | Smooth sleeve diameter: 5 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel

5313019

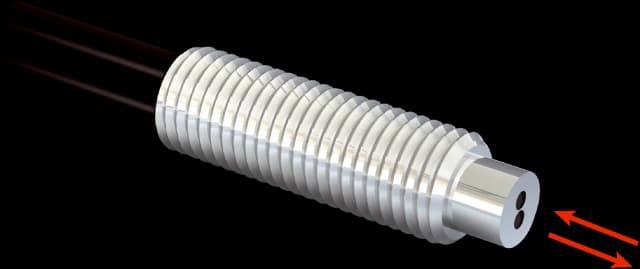

LL3-DK06

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK06 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

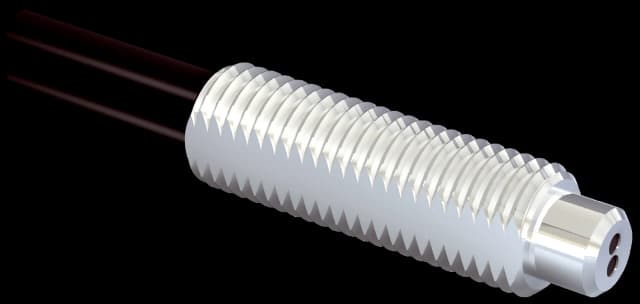

5326997

LL3-DK06-01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK06-01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 1,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

5327794

LL3-DK06-S01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK06-S01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)

5338135

LL3-DK063000

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK063000 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 3,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

5350097

LL3-DK08

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK08 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M3 hexagon nut, 1 x washer, FC fiber cutter (LLAC-FC 2119448), adapter sleeves LLAC-AB13 (1.3 mm)

5313023

LL3-DK21

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK21 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 500 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M3 hexagon nut, 2 x washer

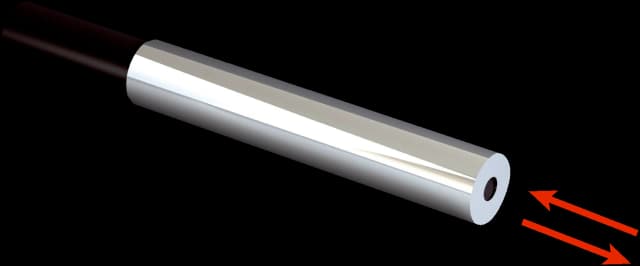

5313022

LL3-DK23

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-DK23 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve | Fiber length: 500 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel
