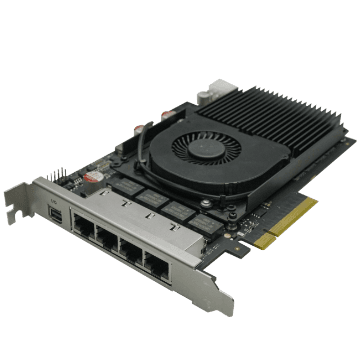

MV-GT1104P

Производител: Hikrobot#MV-GT1104P

Модел

Шина: PCI-E gen3 × 8
Пропускателна способност: 7000 MB/s (max. transmission bandwidth) 6750 MB/s (sustained transmission bandwidth)
Индикатор на шината: 1

Стандарт: GigE Vision V2.0
Интерфейс: RJ45 × 4, supports PoE
Поддържан тип камери: GigE industrial camera, 10 GigE industrial camera, and 2.5 GigE industrial camera
Брой поддържани камери: 4 at most (total bandwidth up to 40 Gbps)
Скорост на връзката с камерата: 10 Gbps
Потоци: 4
Индикатор на потока: 4 pairs

Формат на пикселите: Mono 8/10/10p/12/12p/16 Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8

Тип I/O: Configurable input/output × 6, compatible with single-ended/differential, and supports cascading of multiple frame grabbers I/O on bracket: Line 0/1/2/3 supports 3.3 VDC to 24 VDC input, and 3.3 VDC output, N-terminal reference voltage is adjustable simultaneously I/O on PCB: Line 4/5 supports 3.3 VDC to 24 VDC input and 3.3 VDC output
Конектор: I/O on bracket: Mini-DP, female, 20-pin I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes)

Габаритни размери: 181 mm × 126.3 mm × 22.4 mm (7.1" × 5.0" × 0.9")
Температура: Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Влажност: 10% RH to 95% RH (no condensation)

Основни характеристики

Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
Supports PCI-E gen3 × 8 bus interface and the max. bus bandwidth of 40 Gbps.
Supports card-end pre-processing to reduce CPU load.
Supports data packet resending, event control, etc.
Adopts multiple I/O connectors for input and output.
Provides SDK for secondary development.
Complies with Genlcam standard.
