Сензори за ниво
Level Sensors
1206 продукта · стр. 50/51
UP56-211156S01
Level sensors | UP56 | UP56-211156S01 | Communication interface: - | Process connection: GF connection D40 | Remote amplifier: No | Output signal: 4 mA ... 20 mA | Connection type: Connecting cable, flying leads, 5-wire, shielded, PVC | Process temperature: –25 °C ... +85 °C | Process pressure: 0 bar ... 2 bar | Wetted parts: PTFE, FFKM | Housing material: PP | Measuring range in tank: 30 mm ... 250 mm | Measuring range immersion tube: 30 mm ... 500 mm | Enclosure rating: IP67 | Display: no | PW
UP56-2111A8
Level sensors | UP56 | UP56-2111A8 | Communication interface: - | Process connection: 1" NPT | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 30 mm ... 250 mm | Measuring range immersion tube: 30 mm ... 990 mm | Enclo
UP56-212112
Level sensors | UP56 | UP56-212112 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 2 x PNP | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enclosure rating: IP67 | Display: ye
UP56-212114
Level sensors | UP56 | UP56-212114 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enclosure rating: IP67 | Display: ye
UP56-212115
Level sensors | UP56 | UP56-212115 | Communication interface: IO-Link | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 85 mm ... 350 mm | M
UP56-212118
Level sensors | UP56 | UP56-212118 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Encl
UP56-212128
Level sensors | UP56 | UP56-212128 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571 | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enclosure rati
UP56-212148
Level sensors | UP56 | UP56-212148 | Communication interface: - | Process connection: GF connection D40 | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +85 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: PTFE, FFKM | Housing material: PTFE, PP | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enclosure rating: IP67 | Display:
UP56-212156
Level sensors | UP56 | UP56-212156 | Communication interface: - | Process connection: GF connection D40 | Remote amplifier: No | Output signal: 4 mA ... 20 mA | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +85 °C | Process pressure: 0 bar ... 2 bar | Wetted parts: PTFE, FFKM | Housing material: PTFE, PP | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | B
UP56-2121A8
Level sensors | UP56 | UP56-2121A8 | Communication interface: - | Process connection: 1" NPT | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enc
UP56-213112
Level sensors | UP56 | UP56-213112 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 2 x PNP | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 200 mm ... 1,300 mm | Measuring range immersion tube: 200 mm ... 5,000 mm | Enclosure rating: IP67 | Display
UP56-213114
Level sensors | UP56 | UP56-213114 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 200 mm ... 1,300 mm | Measuring range immersion tube: 200 mm ... 5,000 mm | Enclosure rating: IP67 | Display
UP56-213115
Level sensors | UP56 | UP56-213115 | Communication interface: IO-Link | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 200 mm ... 1,300 mm
UP56-213118
Level sensors | UP56 | UP56-213118 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 200 mm ... 1,300 mm | Measuring range immersion tube: 200 mm ... 5,000 mm |
UP56-213128
Level sensors | UP56 | UP56-213128 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571 | Measuring range in tank: 200 mm ... 1,300 mm | Measuring range immersion tube: 200 mm ... 5,000 mm | Enclosure
UP56-2131A8
Level sensors | UP56 | UP56-2131A8 | Communication interface: - | Process connection: 1" NPT | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 200 mm ... 1,300 mm | Measuring range immersion tube: 200 mm ... 5,000 mm |

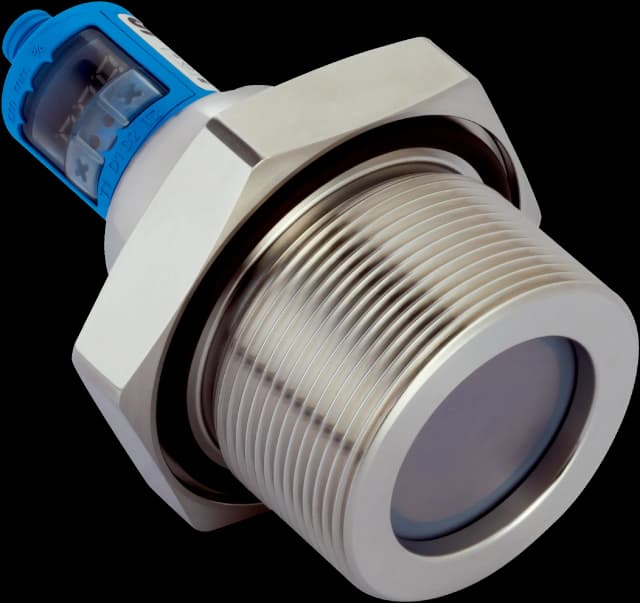

UP56-214112
Level sensors | UP56 | UP56-214112 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x PNP | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclosure rating: IP67 | Di
UP56-214114
Level sensors | UP56 | UP56-214114 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclosure rating: IP67 | Di
UP56-214115
Level sensors | UP56 | UP56-214115 | Communication interface: IO-Link | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm ... 3,40
UP56-214118
Level sensors | UP56 | UP56-214118 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000

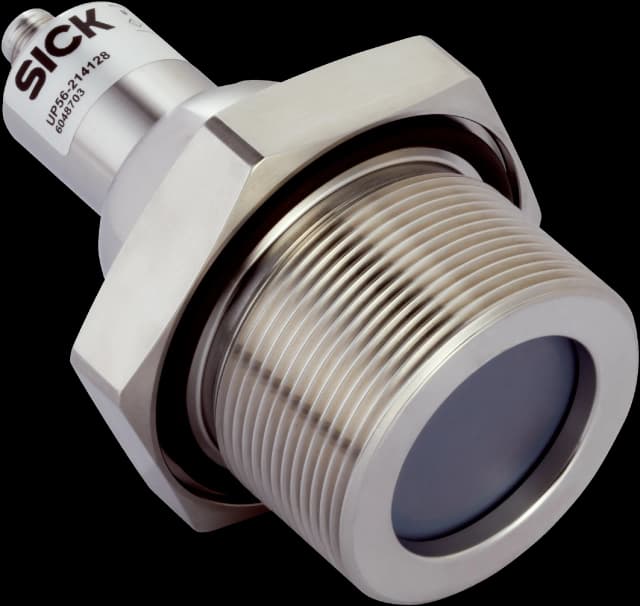

UP56-214128
Level sensors | UP56 | UP56-214128 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 1 x PNP + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571 | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclo
UP56-214172
Level sensors | UP56 | UP56-214172 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x PNP | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: PVDF, FFKM | Housing material: PVDF, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclosure rating: IP67 | Display: yes | PWIS-cleaned: no | Blue
UP56-214174
Level sensors | UP56 | UP56-214174 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: PVDF, FFKM | Housing material: PVDF, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclosure rating: IP67 | Display: yes | PWIS-cleaned: no | Blue
UP56-214175
Level sensors | UP56 | UP56-214175 | Communication interface: IO-Link | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: PVDF, FFKM | Housing material: PVDF, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tub
