Сензори за ниво
Level Sensors
1206 продукта · стр. 47/51
LXRC-1XXXGXXAAMAAX
Level sensors | LXRC-1 | LXRC-1XXXGXXAAMAAX | Communication interface: IO-Link | Process connection: ¾" NPT, PN16, ASME B1.20.1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, FKM | Housing material: Stainless steel 1.4404

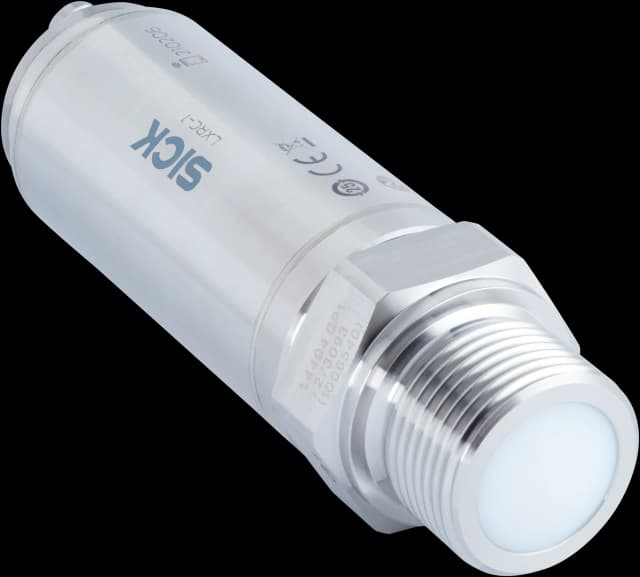

LXRC-1XXXJXXABEXAB
Level sensors | LXRC-1 | LXRC-1XXXJXXABEXAB | Communication interface: IO-Link | Process connection: G 1, PN16, DIN3852-A | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404 / 316L
LXRC-1XXXJXXABEXAX
Level sensors | LXRC-1 | LXRC-1XXXJXXABEXAX | Communication interface: IO-Link | Process connection: G 1, PN16, DIN3852-A | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404 / 316L

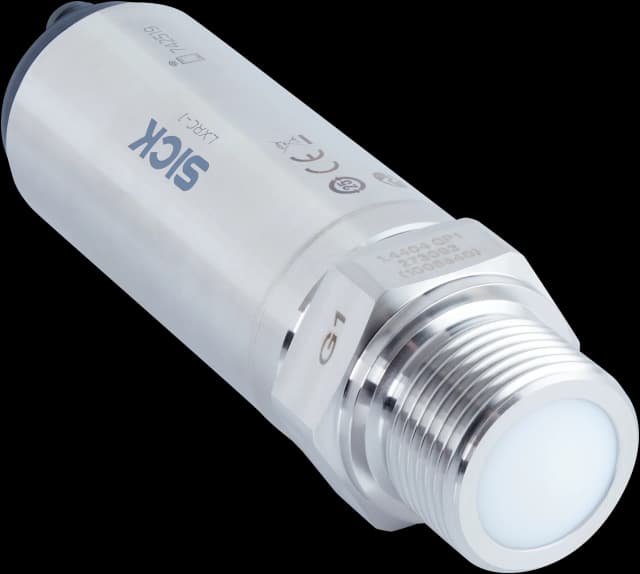

LXRC-1XXXJXXABMAAB
Level sensors | LXRC-1 | LXRC-1XXXJXXABMAAB | Communication interface: IO-Link | Process connection: G 1, PN16, DIN3852-A | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404 / 316L
LXRC-1XXXJXXABMAAX
Level sensors | LXRC-1 | LXRC-1XXXJXXABMAAX | Communication interface: IO-Link | Process connection: G 1, PN16, DIN3852-A | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404 / 316L
LXRC-1XXXKXXABEXAB
Level sensors | LXRC-1 | LXRC-1XXXKXXABEXAB | Communication interface: IO-Link | Process connection: 1" NPT, PN16, ASME B1.20.1 | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404
LXRC-1XXXKXXABEXAX
Level sensors | LXRC-1 | LXRC-1XXXKXXABEXAX | Communication interface: IO-Link | Process connection: 1" NPT, PN16, ASME B1.20.1 | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404
LXRC-1XXXKXXABMAAB
Level sensors | LXRC-1 | LXRC-1XXXKXXABMAAB | Communication interface: IO-Link | Process connection: 1" NPT, PN16, ASME B1.20.1 | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404
LXRC-1XXXKXXABMAAX
Level sensors | LXRC-1 | LXRC-1XXXKXXABMAAX | Communication interface: IO-Link | Process connection: 1" NPT, PN16, ASME B1.20.1 | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404

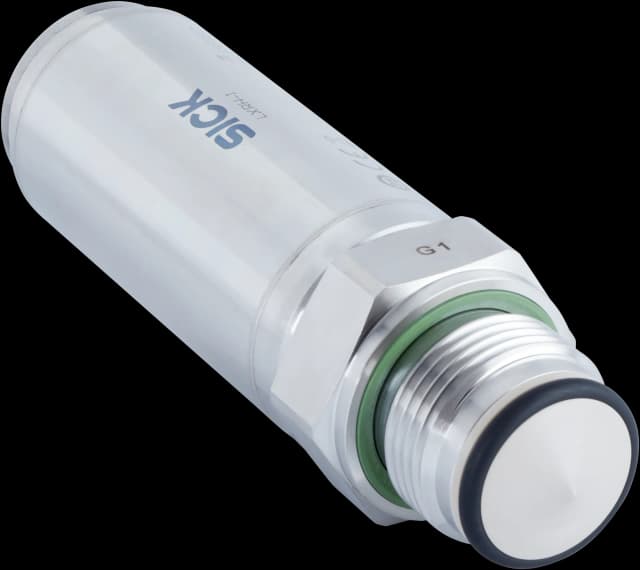

LXRH-1XXXMXXA7EXAB
Level sensors | LXRH-1 | LXRH-1XXXMXXA7EXAB | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, EPDM | Housing material: Stainless steel 1.4404 / 316L
LXRH-1XXXMXXA7EXAX
Level sensors | LXRH-1 | LXRH-1XXXMXXA7EXAX | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, EPDM | Housing material: Stainless steel 1.4404 / 316L
LXRH-1XXXMXXA7MAAB
Level sensors | LXRH-1 | LXRH-1XXXMXXA7MAAB | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, EPDM | Housing material: Stainless steel 1.4404 / 316L
LXRH-1XXXMXXA7MAAX
Level sensors | LXRH-1 | LXRH-1XXXMXXA7MAAX | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, EPDM | Housing material: Stainless steel 1.4404 / 316L

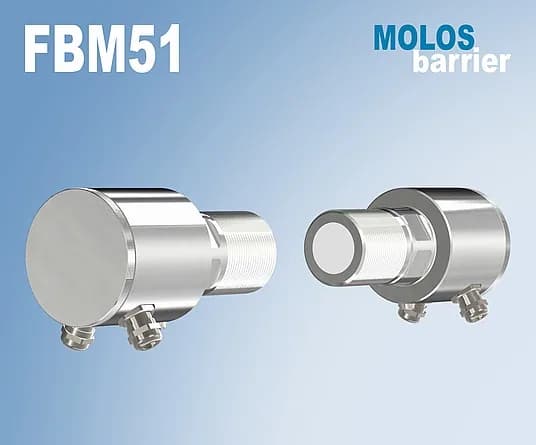

MOLOSbarrier FBM51
With the MOLOSbarrier FBM microwave barrier, you can check the level of bulk solids quickly and without direct contact. As a full, empty or demand indicator, as well as for level monitoring in pipe systems, this switch ensures safe and uncomplicated level monitoring in a wide range of applications.

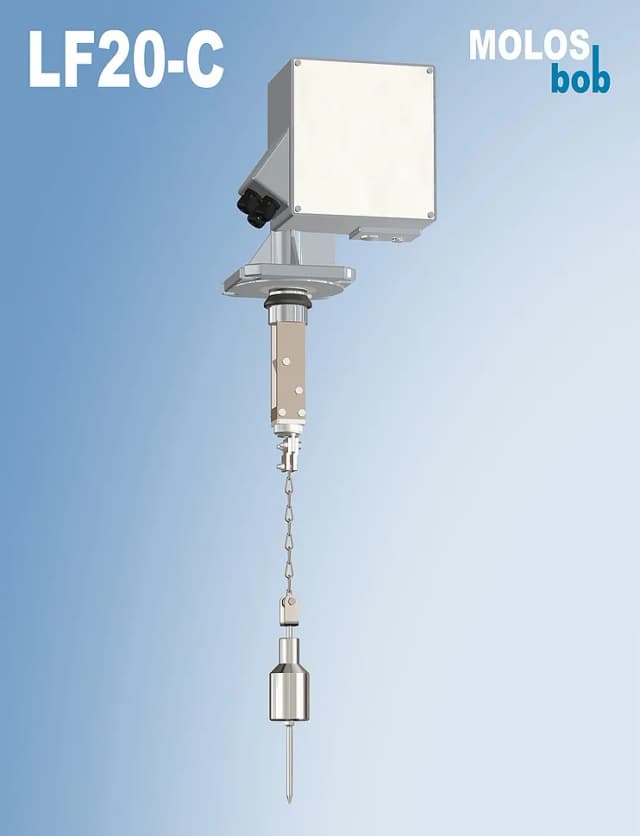

MOLOSbob LF20
The MOLOSbob LF20 enables simple level measurement in silos and bunkers up to 42 m. With the aid of different sensor weights, the Yo-Yo system delivers reliable measurement results regardless of the bulk solids properties and thus without complex parameterization. The measured value is output as a 4-20 mA signal and visualized via display instruments. In the LF20-T version, the MOLOSbob is also used for interface measurement.
MOLOSmembran MFA
The MOLOSmembrane MFA is suitable for level monitoring in small containers and hoppers and as a jam indicator. Its simple design guarantees a reliable and cost-effective solution for your measuring task.
MOLOSmembran MFB
The MOLOSmembran MFB scores as a robust full, empty or demand indicator in silos and larger containers, even in potentially explosive areas. Particularly in coarse-grained solids, this robust device also shows its strengths as a dynamic level indicator and delivers reliable measurement results at an attractive price in demanding applications.
MOLOSmembran MFD
The MOLOSmembran MFD is a good choice for level indication in silos, hoppers and containers with bulk solids up to a grain size of 30 mm. Thanks to various options, this flexible full, empty or demand indicator can also be optimally adapted to your needs as a level indicator. This means you always enjoy precise and reliable fill level monitoring.
MOLOSmembran MFE
The MOLOSmembrane MFE is ideally suited for level indication in silos, hoppers and containers with granulates and granular bulk solids. Particularly practical: The MFEF device version with a recessed flange effectively prevents bulk material deposits in front of the membrane.
MOLOSmembran MFE-A
The MOLOSmembran MFE-A has been specially developed for level measurement of granulates and granular bulk solids in areas where there is a risk of explosion due to gas or dust. With its aluminum housing, it offers maximum safety there.
MOLOSpendu PF
Our MOLOSpendu level indicators have been developed for full detection in mechanically filled silos and on stockpiles fed by conveyor belts. Thanks to their uncomplicated design, these detectors offer a cost-effective and reliable solution for your level indication without additional operating energy.
MOLOSpendu PSF
The check indicator MOLOSpendu PSF is an universal pendulum rod switch with numerous application possibilities. With a simple design, this detector offers a cost-effective and reliable solution for monitoring bulk materials in motion. The PF-B1-S variant can also be used in areas with a risk of dust explosion.
MOLOSroto DF11
The MOLOSroto DF11 is your versatile partner for level monitoring in simple applications. Whether as a full, empty or demand indicator in silos and containers - this all-rounder is convincing in every situation. A selection of options enables it to be adapted to specific conditions.
MOLOSroto DF21
With numerous options and an extensive range of accessories, the MOLOSroto DF21 can be precisely adapted to the specific requirements of your applications and always guarantees optimum measurement results. This rotating paddle detector works reliably in all bulk solids as a full, empty or demand indicator.
