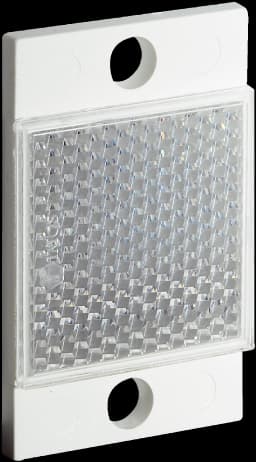

PL10F
Reflectors and optics | Reflectors | PL10F | Description: Fine triple reflector, screw connection, suitable for laser sensors | Dimensions: 20 mm 3.5 mm 32 mm | Ambient operating temperature: –30 °C ... +65 °C
CM30-16BAP-KW1
Capacitive proximity sensors | CM | CM30-16BAP-KW1 | Sensing range Sn: 2 mm ... 16 mm | Installation type: Flush | Electrical wiring: AC 2-wire | Connection type: Cable, 2-wire | Output function: NC or NO

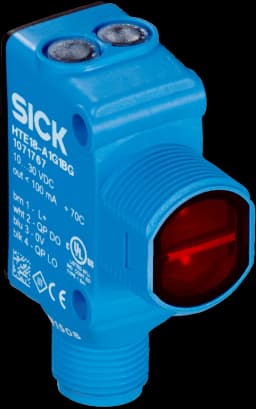

HL18-P4A3BA
Photoelectric sensors | H18 Sure Sense | HL18-P4A3BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right
YF12U13-2550K4051A
Connectors and cables | Field-wireable connectors | YF12U13-2550K4051A | Description: Sensor/actuator cable | Connection type head A: Female connector, M12, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Connection systems: IDC quick connection | Permitted cross-section: 0.25 mm² ... 0.5 mm² | Application: Zones with oils and lubricants

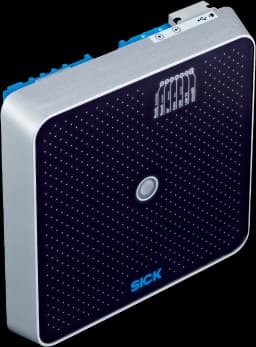

RFU630-13100
RFID | RFU63x | RFU630-13100 | Radio approval: European Union, South Africa, Saudi Arabia, United Arab Emirates, Qatar | Frequency band: UHF (860 MHz ... 960 MHz) | Reading range: ≤ 10 m | Enclosure rating: IP67

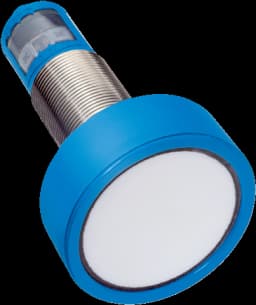

UM30-215113
Ultrasonic distance sensors | UM30 | UM30-215113 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Type of analog output: Current output / voltage output
YF8U13-C60UA1XLEAX
Connectors and cables | Sensor-actuator cables | YF8U13-C60UA1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 0.6 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
OD2000-7002T15
Laser distance sensors | OD2000 | OD2000-7002T15 | Communication interface: IO-Link | Digital output: 2 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 200 mm ... 1,200 mm | Repeatability: 100 µm | Laser class: 2 | Typ. light spot size (distance): Ø 1 mm (700 mm) | Housing material: Plastic | Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm
GTB6-N1211
Photoelectric sensors | G6 | GTB6-N1211 | Sensing range max.: 5 mm ... 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular

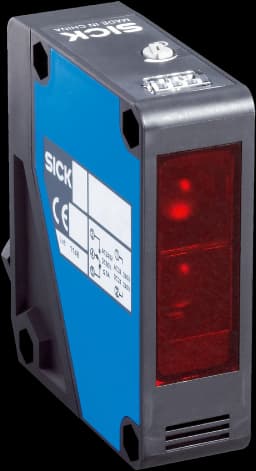

WL280-2H4331
Photoelectric sensors | W280 | WL280-2H4331 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Relay | Switching mode: Light switching | Connection type: Cable gland | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W280, Reflector P250
MASQ47-36PEKU1SA10
Absolute encoders | MAS | MASQ47-36PEKU1SA10 | Dimensions (W x H x D): 47 mm x 47 mm x 10 mm | Measuring range: 0° ... 360° | Resolution: 12 bit | Electrical wiring: DC 5-wire
LMS511-20190
Flow sensors | Bulkscan | LMS511-20190 | Output signal: Ethernet, Digital inputs and digital outputs, USB auxiliary interface, RS-232/RS-422 | Connection type: M12 round connector | Communication interface: Serial, USB | Display: no | Laser class: 1, eye-safe (IEC 60825-1:2014) | Working range: 0.5 m ... 20 m | Switching outputs: 6 | Supply voltage scanner/heater: 19.2 V ... 28.8 V | Enclosure rating: IP67 | Calibration certificate: no
IMC18-07BPDZC0SA05
Inductive proximity sensors | SAM | IMC18-07BPDZC0SA05 | Sensing range Sn: 7 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Speed monitor

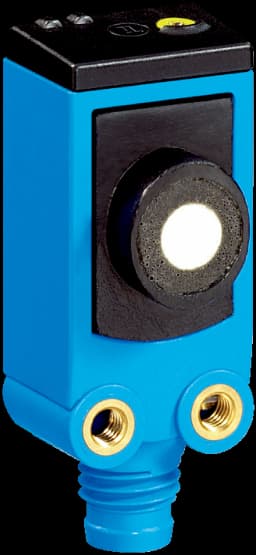

UC4-11341
Ultrasonic distance sensors | UC4 | UC4-11341 | Communication interface: - | Operating range, limiting range: 13 mm ... 100 mm, 150 mm | Connection type: Male connector, M8, 3-pin | Sending axis: Straight | Response time: 24 ms | Digital output: 1 x PNP

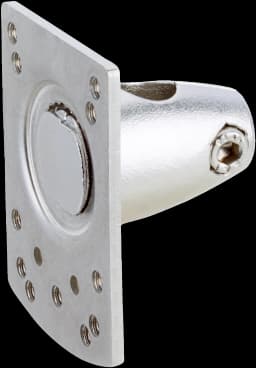

BEF-KHS-N02
Mounting systems | Brackets | BEF-KHS-N02 | Description: Plate N02 for universal clamp bracket | Material: Steel, zinc diecast | Details: Zinc plated steel (sheet), Zinc die cast (clamping bracket) | Items supplied: Universal clamp (5322626), mounting hardware | Usable for: W4S-3 Glass, W10, W4SLG-3, W4S-3 Inox, W4S-3 Inox Glass, W9, W11-2, W12-3, W12-2 Laser, W12G, W12 Teflon, W16, W250, W250-2, PowerProx, W11G-2, TranspaTect, WTT12, UC12, P250, G6 Inox, W4S, W4SL-3V, W4SLG-3V, W4SL-3H
C4C-SA04510A10000, C4C-EA04510A10000
Safety light curtains | deTec | C4C-SA04510A10000, C4C-EA04510A10000 | Product version: deTec4 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 10 m | Protective field height: 450 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instru

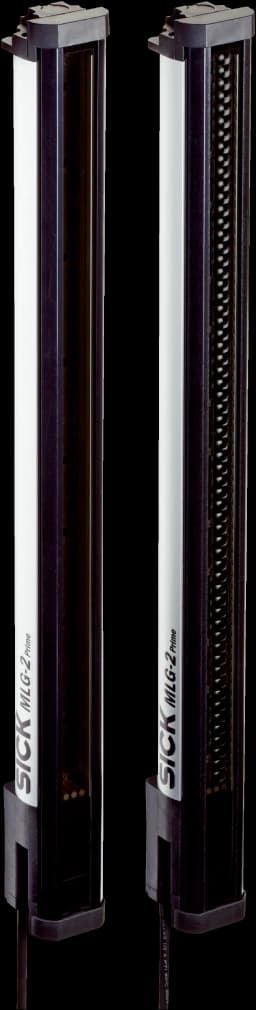

MLG10S-1040A10501
Automation light grids | MLG-2 | MLG10S-1040A10501 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,040 mm | Length of cable: 0.22 m, 0.22 m | Response time: 12.7 ms | Software feature (default setting - see technical data/features): 01

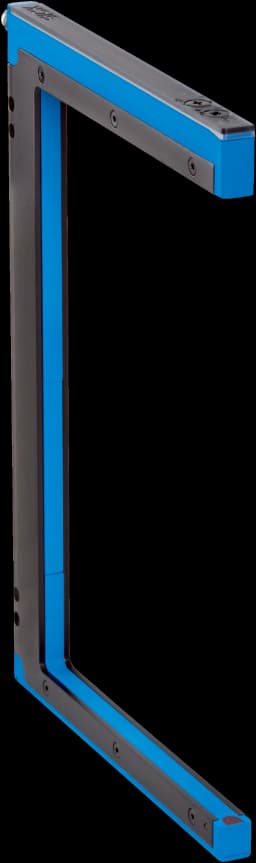

WFE-180120B337
Fork sensors | WFE | WFE-180120B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 180 mm, 120 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

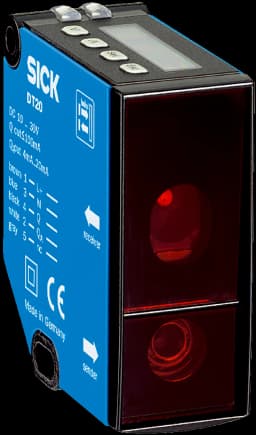

DT20-P224B
Laser distance sensors | DT20 Hi | DT20-P224B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 1,000 mm | Repeatability: ≥ 2.5 mm | Laser class: 2 | Typ. light spot size (distance): 6 mm x 12 mm (1000 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
MPS-G50CSH55D43ZZZ
Cylinder sensors | MPS-G | MPS-G50CSH55D43ZZZ | Connection type: Cable with plug, M8, 4-pin, with knurled screws, 0.5 m | Output function: Analog | Measuring range: 50 mm | Preferred manufacturer slot: SMC, PHD, Bimba | Communication interface: -
