Сензори за налягане
Pressure Sensors
3216 продукта · стр. 133/134
PTAC-1XXXFARFVEZX
Pressure sensors | PTA | PTAC-1XXXFARFVEZX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: - 1 bar ... + 5 bar, - 14.5 psi ... + 72.5 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: Clamp 2" PN40 (ø64 mm) DIN32676, ISO2852; flush-mounted / 316L (Ra< 0.76 µm) | Process temperature: –15 °C ... +130 °C | Seal: FFKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connecti
PTAC-1XXXX88A4MZB
Pressure sensors | PTA | PTAC-1XXXX88A4MZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: –0.2 bar ... 0.2 bar, –2.9 psi ... 2.9 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ A (ISO 1179-2) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Sup
PTAC-1XXXX88ABMZB
Pressure sensors | PTA | PTAC-1XXXX88ABMZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 0.1 bar, 0 psi ... 1.45 bar | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ A (ISO 1179-2) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply v
PTAC-1XXXX88ABMZX
Pressure sensors | PTA | PTAC-1XXXX88ABMZX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 0.1 bar, 0 psi ... 1.45 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ A (ISO 1179-2) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply voltage:
PTAC-1XXXX88AIMAB
Pressure sensors | PTA | PTAC-1XXXX88AIMAB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 25 bar, 0 psi ... 360 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ A (ISO 1179-2) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link, Bluetooth | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin,
PTAC-1XXXX88ARMAX
Pressure sensors | PTA | PTAC-1XXXX88ARMAX | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 60 bar, 0 psi ... 870 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ A (ISO 1179-2) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP66, I
PTAC-1XXXX9LA9MZX
Pressure sensors | PTA | PTAC-1XXXX9LA9MZX | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ flush-mounted (DIN 3852-A) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Sup
PTAC-1XXXXAVAFMAB
Pressure sensors | PTA | PTAC-1XXXXAVAFMAB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 5 bar, 0 psi ... 72 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L (Ra < 0.38 μm) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link, Bluetooth | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-w
PTAC-1XXXXC3AEMZX
Pressure sensors | PTA | PTAC-1XXXXC3AEMZX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply voltage: 12 V
PTAC-1XXXXC3AFMZB
Pressure sensors | PTA | PTAC-1XXXXC3AFMZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 5 bar, 0 psi ... 72 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply voltage:
PTAC-1XXXXC3AQMAB
Pressure sensors | PTA | PTAC-1XXXXC3AQMAB | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 25 bar, 0 psi ... 360 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP
PTAC-1XXXXC5ABMZX
Pressure sensors | PTA | PTAC-1XXXXC5ABMZX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 0.1 bar, 0 psi ... 1.45 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Suppl
PTAC-1XXXXC5ACMZB
Pressure sensors | PTA | PTAC-1XXXXC5ACMZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 5.8 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G 1 flush-mounted (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69
PTAC-1XXXXDUA7MZB
Pressure sensors | PTA | PTAC-1XXXXDUA7MZB | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply volt

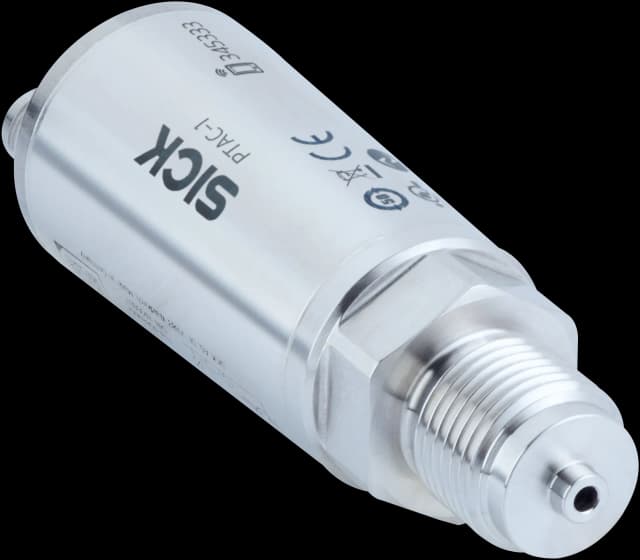

PTAC-1XXXXDUAMEZX
Pressure sensors | PTA | PTAC-1XXXXDUAMEZX | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 1 bar, 0 psi ... 14.5 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply volt
PTAC-1XXXXTIF7MAB
Pressure sensors | PTA | PTAC-1XXXXTIF7MAB | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: ¼'' NPT | Process temperature: –15 °C ... +130 °C | Seal: FFKM | Communication interface: IO-Link, Bluetooth | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP66,
PTAC-1XXXXTJAGMAB
Pressure sensors | PTA | PTAC-1XXXXTJAGMAB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link, Bluetooth | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP6
PTAC-1XXXXTJAGMAX
Pressure sensors | PTA | PTAC-1XXXXTJAGMAX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link | Output signal: 4 mA ... 20 mA, IO-Link, transistor, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP
PTAC-1XXXXTJAGMZB
Pressure sensors | PTA | PTAC-1XXXXTJAGMZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply voltage
PTAC-1XXXXTJAGMZX
Pressure sensors | PTA | PTAC-1XXXXTJAGMZX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply voltage: 12 V D
PTAM-1XXXF3P4EZB
Pressure sensors | PTA | PTAM-1XXXF3P4EZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Metallic pressure measuring cell | Measuring range: –0.2 bar ... 0.2 bar, –2.9 psi ... 2.9 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: EPDM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Round connector M12 x 1, 4-pin, stainless
PTAM-1XXXFLXGMAX
Pressure sensors | PTA | PTAM-1XXXFLXGMAX | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Metallic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G1 flush-mounted (ISO 228-1) with O-ring seal | Process temperature: –20 °C ... +130 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: IO-Link, 3-wire, 2x transistor or 4 ... 20 mA plus 1x transistor | Connection
PTAM-1XXXX3PFMZB
Pressure sensors | PTA | PTAM-1XXXX3PFMZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Metallic pressure measuring cell | Measuring range: 0 bar ... 5 bar, 0 psi ... 72 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | S
PTAM-1XXXX3PLMAB
Pressure sensors | PTA | PTAM-1XXXX3PLMAB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Metallic pressure measuring cell | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ½ flush-mounted (ISO 228-1) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: IO-Link, Bluetooth | Output signal: IO-Link, 3-wire, 2x transistor or 4 ... 20 mA plus 1x transistor | Connection ty
