Сензори за налягане
Pressure Sensors
3216 продукта · стр. 120/134

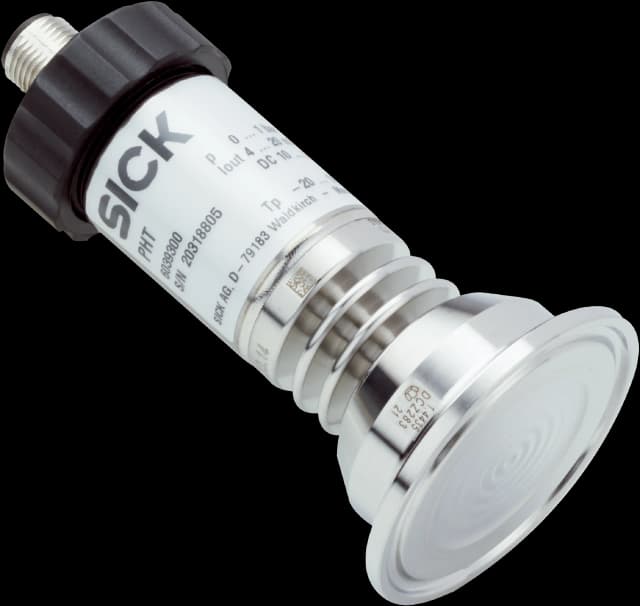

PHT-CB1X0SD30S0ALS0Z
Pressure sensors | PHT | PHT-CB1X0SD30S0ALS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 0 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Clamp (DIN 32676) DN 32 | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: L-connector (DIN EN 175301-803 A
PHT-CB1X0ST10S0AMS0Z
Pressure sensors | PHT | PHT-CB1X0ST10S0AMS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 0 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pi

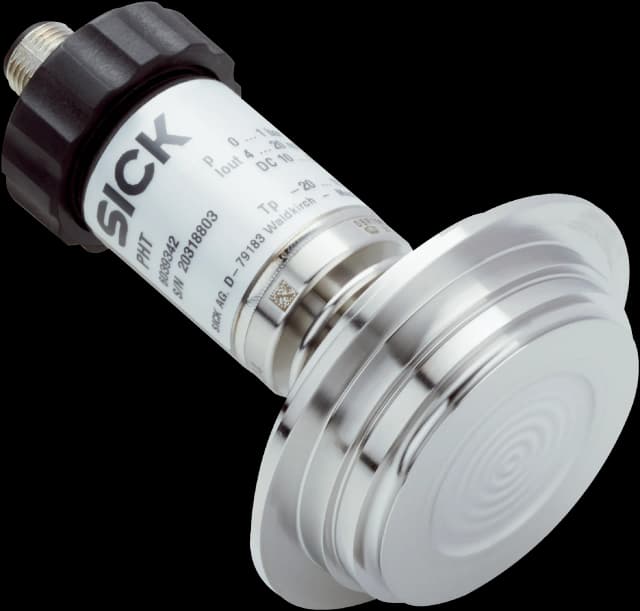

PHT-CB4X0EVN0SEAFT0Z
Pressure sensors | PHT | PHT-CB4X0EVN0SEAFT0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Varivent connection type N | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field housing, IP67 | Supply voltage
PHT-CB4X0EVN0SEAMS0Z
Pressure sensors | PHT | PHT-CB4X0EVN0SEAMS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Varivent connection type N | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67
PHT-CB4X0ST10S0AMS0Z
Pressure sensors | PHT | PHT-CB4X0ST10S0AMS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pi
PHT-CB4X0SVN0SEAFT0Z
Pressure sensors | PHT | PHT-CB4X0SVN0SEAFT0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Varivent connection type N | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field housing, IP67 | Supply voltage:
PHT-CB6X0E540SEAMS0Z
Pressure sensors | PHT | PHT-CB6X0E540SEAMS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round con
PHT-CB6X0ST10SEALS0Z
Pressure sensors | PHT | PHT-CB6X0ST10SEALS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: L-connector (DIN EN 175301-803 A), IP
PHT-CB6X0ST10SEAMS0Z
Pressure sensors | PHT | PHT-CB6X0ST10SEAMS0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67
PHT-CB6X0ST10SEVMZ0Z
Pressure sensors | PHT | PHT-CB6X0ST10SEVMZ0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: M12 round connector x 1, 4-pin, IP67 |
PHT-CP015ST10SEAMS0Z
Pressure sensors | PHT | PHT-CP015ST10SEAMS0Z | Pressure type: Compound pressure | Pressure unit: psi | Measuring range: –14.5 psi ... 0 psi | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP
PHT-RB010E520S0AMS0Z
Pressure sensors | PHT | PHT-RB010E520S0AMS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 25 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 roun
PHT-RB010E550S0AFT0Z
Pressure sensors | PHT | PHT-RB010E550S0AFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 50 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field ho
PHT-RB010ED30S0AMS0Z
Pressure sensors | PHT | PHT-RB010ED30S0AMS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Clamp (DIN 32676) DN 32 | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP
PHT-RB010EVN0SEAFT0Z
Pressure sensors | PHT | PHT-RB010EVN0SEAFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Varivent connection type N | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field housing, IP67 | Supply voltage: 1
PHT-RB010S520SEALS0Z
Pressure sensors | PHT | PHT-RB010S520SEALS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 25 with union nut | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: L-connector (DIN
PHT-RB010S540S0AFT0Z
Pressure sensors | PHT | PHT-RB010S540S0AFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field hou
PHT-RB010S540S0ALS0Z
Pressure sensors | PHT | PHT-RB010S540S0ALS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: L-connect
PHT-RB010S540S0AMS0Z
Pressure sensors | PHT | PHT-RB010S540S0AMS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round
PHT-RB010S540SEVMZ0Z
Pressure sensors | PHT | PHT-RB010S540SEVMZ0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +150 °C | Seal: EPDM | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: M12 round connector
PHT-RB010S550S0AFT0Z
Pressure sensors | PHT | PHT-RB010S550S0AFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 50 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field hou
PHT-RB010S550S0ALS0Z
Pressure sensors | PHT | PHT-RB010S550S0ALS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 50 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: L-connect
PHT-RB010S550S0AMS0Z
Pressure sensors | PHT | PHT-RB010S550S0AMS0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 50 with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round

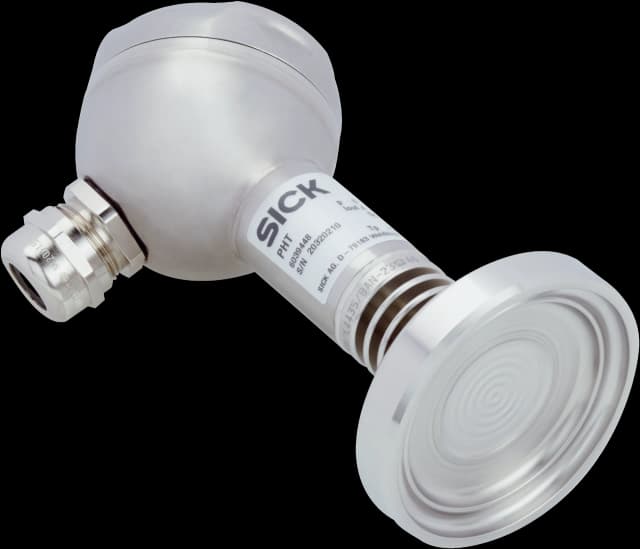

PHT-RB010S640S0AFT0Z
Pressure sensors | PHT | PHT-RB010S640S0AFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Coupling (DIN 11864-1) DN 40 form A with union nut | Process temperature: –20 °C ... +150 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: Field ho
