Енкодери с изтеглящо се въже

Wire Draw Encoders

204 продукта · стр. 2/9

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

1061032

BCG13-A1CM0521

SICK

Wire draw encoders | EcoLine | BCG13-A1CM0521 | Measuring range: 0 m ... 5 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: AFM60 SSI, AFM60B-S1AC008192, 1037863 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: no

1068868

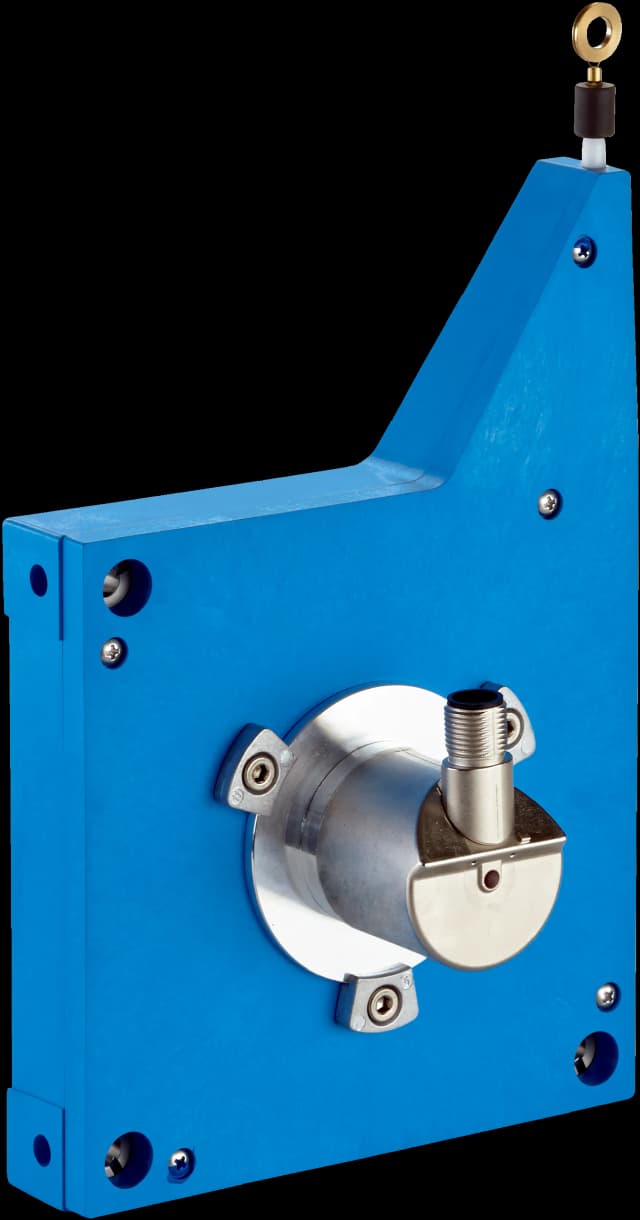

BCG13-A1NM0521

SICK

Wire draw encoders | EcoLine | BCG13-A1NM0521 | Measuring range: 0 m ... 5 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, universal | Mounted encoder: AHM36 SSI, AHM36A-S3PC013X12, 1068330 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1068869

BCG13-C1QM0543

SICK

Wire draw encoders | EcoLine | BCG13-C1QM0543 | Measuring range: 0 m ... 5 m | Communication interface: CANopen | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 CANopen, AHM36A-S3CC014x12, 1065999 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1061038

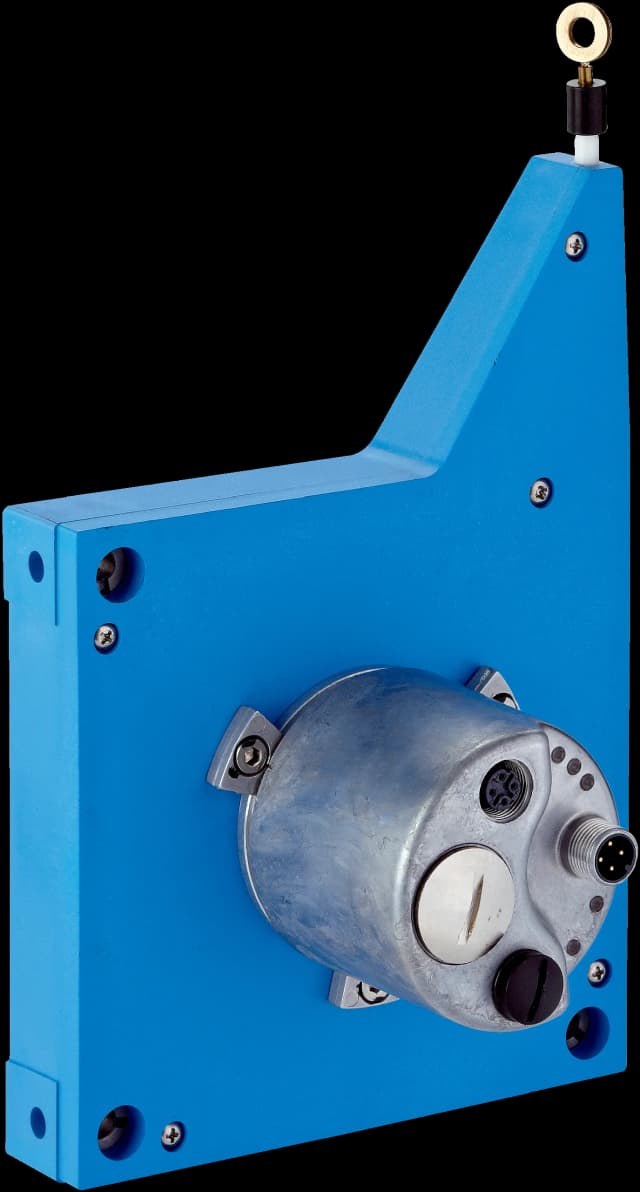

BCG13-E1BM0599

SICK

Wire draw encoders | EcoLine | BCG13-E1BM0599 | Measuring range: 0 m ... 5 m | Communication interface: EtherCAT® | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherCAT®, AFM60A-S1EB018x12, 1059061 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1061037

BCG13-I1BM0599

SICK

Wire draw encoders | EcoLine | BCG13-I1BM0599 | Measuring range: 0 m ... 5 m | Communication interface: EtherNet/IP™ | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherNet/IP, AFM60A-S1IB018x12, 1055331 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1127304

BCG13-J1QM0564

SICK

Wire draw encoders | EcoLine | BCG13-J1QM0564 | Measuring range: 0 m ... 5 m | Communication interface: SAE J1939 | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 SAE J1939, AHM36A-S3JC014x12, 1120251 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

6039749

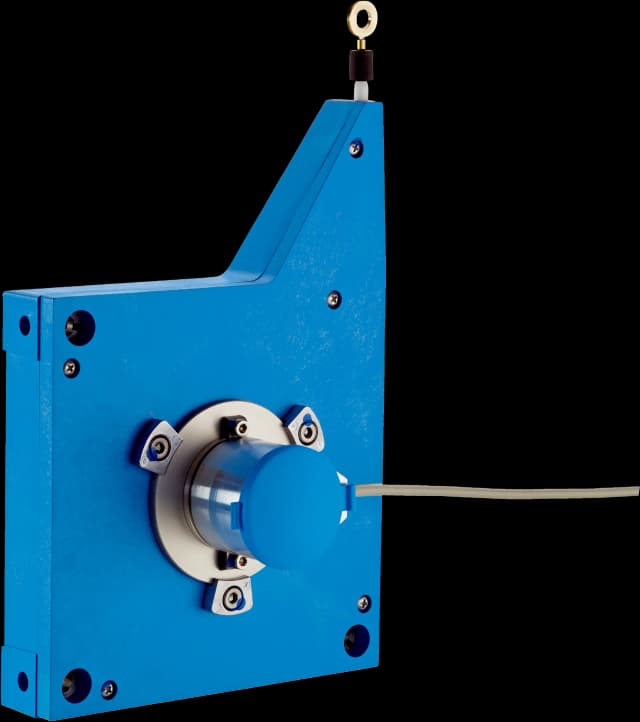

BCG13-K1KM05PP

SICK

Wire draw encoders | EcoLine | BCG13-K1KM05PP | Measuring range: 0 m ... 5 m | Communication interface: - / Current / 4...20 mA | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-K1K0-K01, 6039751 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: no

6039750

BCG13-L1KM05PP

SICK

Wire draw encoders | EcoLine | BCG13-L1KM05PP | Measuring range: 0 m ... 5 m | Communication interface: - / Voltage / 0...10 V | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-L1K0-K01, 6039752 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: no

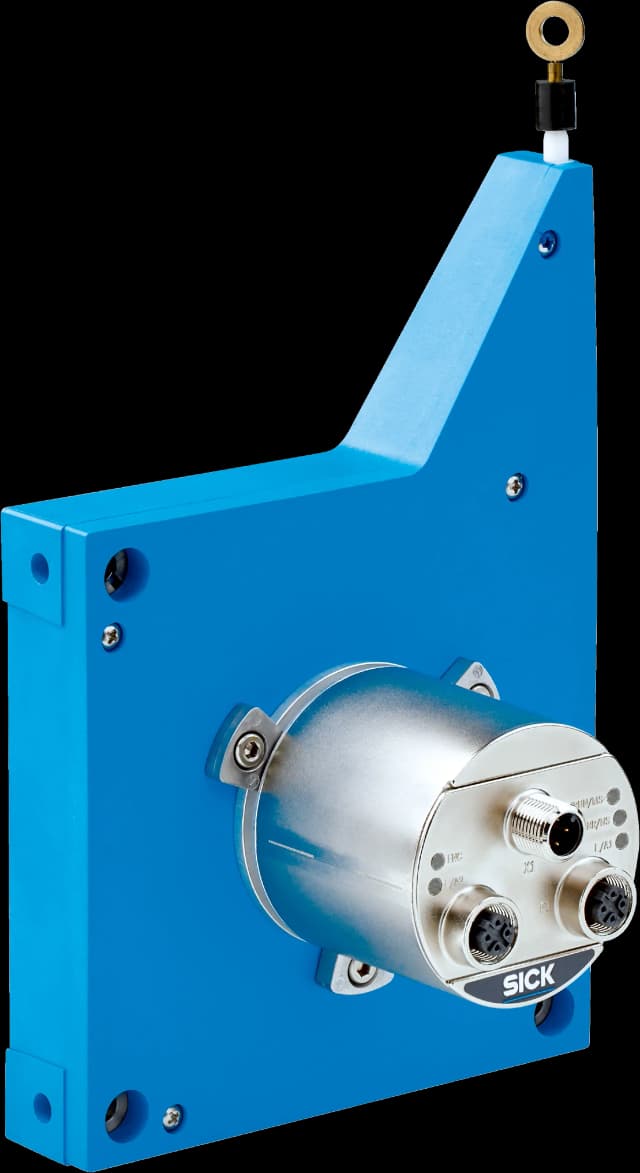

1150698

BCG13-N1BM0577

SICK

Wire draw encoders | EcoLine | BCG13-N1BM0577 | Measuring range: 0 m ... 5 m | Communication interface: PROFINET | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: ANM58 PROFINET, ANM58B-SANNB0000101000XX018X16, 1145910 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1061036

BCG13-N1BM0599

SICK

Wire draw encoders | EcoLine | BCG13-N1BM0599 | Measuring range: 0 m ... 5 m | Communication interface: PROFINET | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 PROFINET, AFM60A-S1NB018x12, 1059040 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1052619

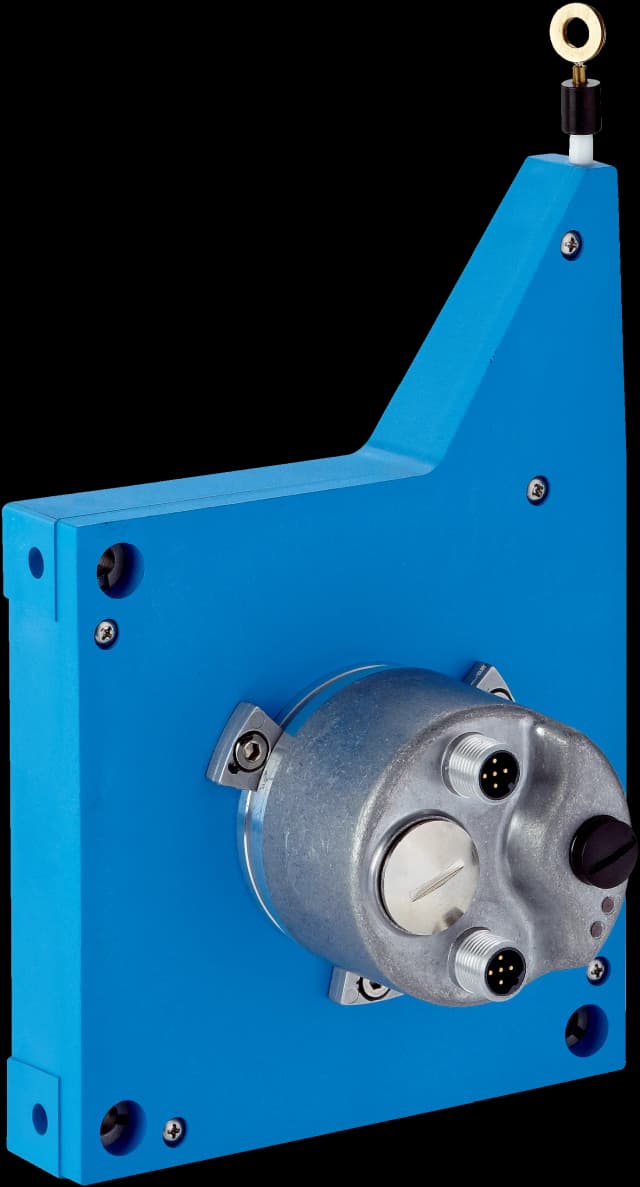

BCG13-P1BM0521

SICK

Wire draw encoders | EcoLine | BCG13-P1BM0521 | Measuring range: 0 m ... 5 m | Communication interface: PROFIBUS DP | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 2x, M12, 5-pin, axial, Female connector, 1x, M12, 5-pin, axial | Mounted encoder: A3M60, A3M60B-S1PB013X13, 1051018 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1097306

BCG13-Q1PM0561

SICK

Wire draw encoders | EcoLine | BCG13-Q1PM0561 | Measuring range: 0 m ... 5 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

1110590

BCG13-Q1PM0562

SICK

Wire draw encoders | EcoLine | BCG13-Q1PM0562 | Measuring range: 0 m ... 5 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Advanced, AHM36A-S3QC014X12, 1101532 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: yes

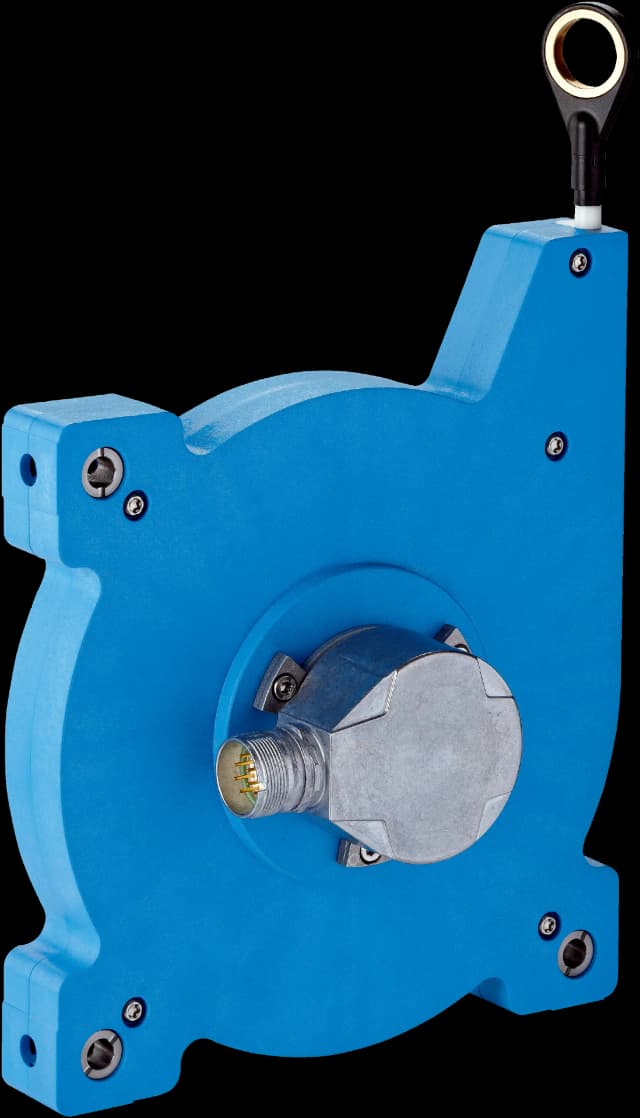

1056983

BCG19-A1AM1007

SICK

Wire draw encoders | EcoLine | BCG19-A1AM1007 | Measuring range: 0 m ... 10 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: AFM60 SSI, AFM60B-S1AA004096, 1037868 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: no

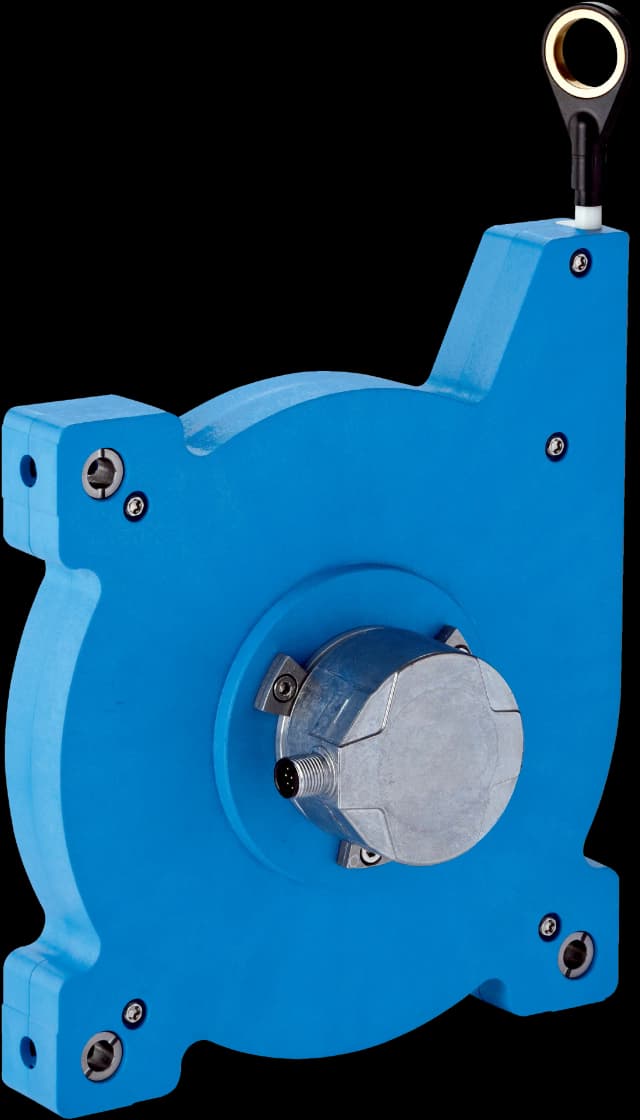

1061039

BCG19-A1CM1007

SICK

Wire draw encoders | EcoLine | BCG19-A1CM1007 | Measuring range: 0 m ... 10 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: AFM60 SSI, AFM60B-S1AC004096, 1037869 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: no

1061040

BCG19-A1CM1015

SICK

Wire draw encoders | EcoLine | BCG19-A1CM1015 | Measuring range: 0 m ... 10 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: AFM60 SSI, AFM60B-S1AC008192, 1037863 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: no

1068870

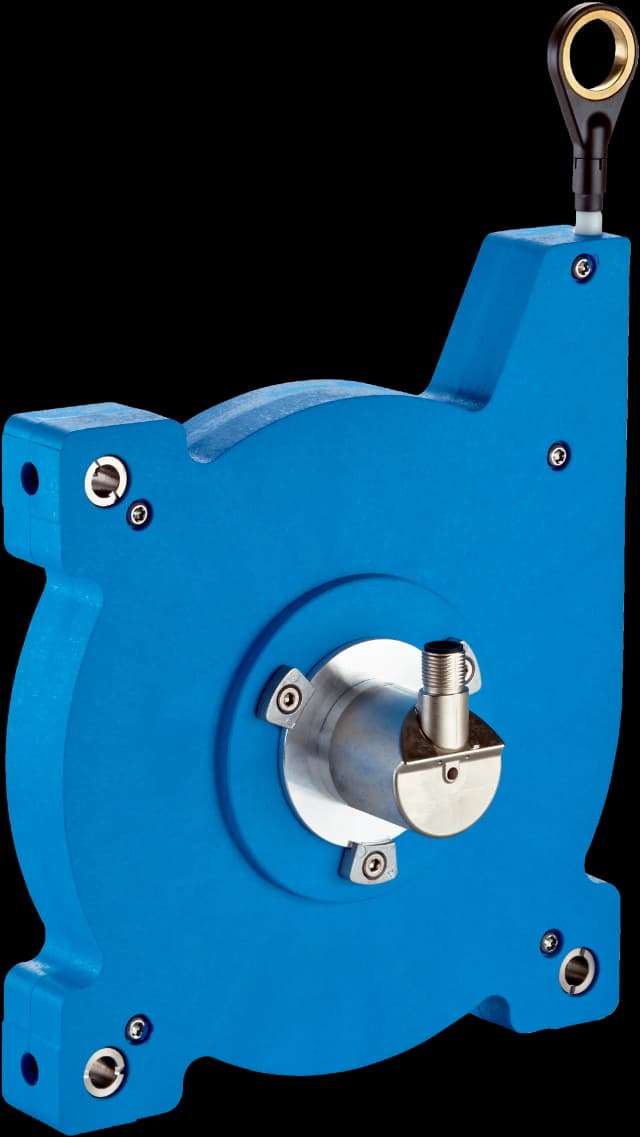

BCG19-A1NM1015

SICK

Wire draw encoders | EcoLine | BCG19-A1NM1015 | Measuring range: 0 m ... 10 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, universal | Mounted encoder: AHM36 SSI, AHM36A-S3PC013X12, 1068330 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes

1068871

BCG19-C1QM1029

SICK

Wire draw encoders | EcoLine | BCG19-C1QM1029 | Measuring range: 0 m ... 10 m | Communication interface: CANopen | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 CANopen, AHM36A-S3CC014x12, 1065999 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes

1061045

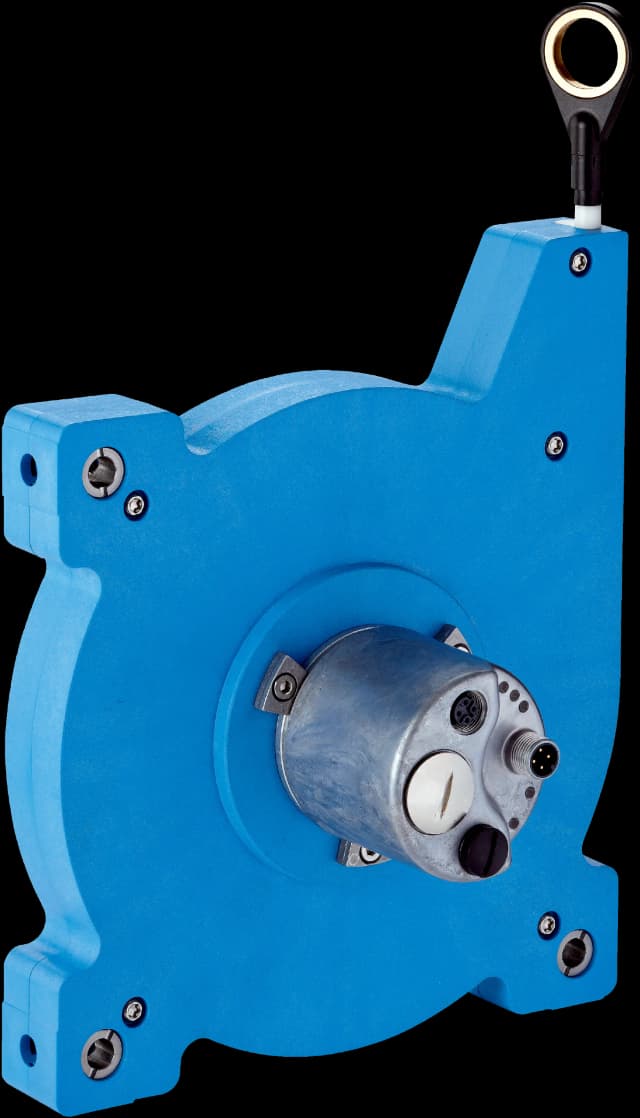

BCG19-E1BM1099

SICK

Wire draw encoders | EcoLine | BCG19-E1BM1099 | Measuring range: 0 m ... 10 m | Communication interface: EtherCAT® | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherCAT®, AFM60A-S1EB018x12, 1059061 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes

1061044

BCG19-I1BM1099

SICK

Wire draw encoders | EcoLine | BCG19-I1BM1099 | Measuring range: 0 m ... 10 m | Communication interface: EtherNet/IP™ | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherNet/IP, AFM60A-S1IB018x12, 1055331 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes

1127305

BCG19-J1QM1064

SICK

Wire draw encoders | EcoLine | BCG19-J1QM1064 | Measuring range: 0 m ... 10 m | Communication interface: SAE J1939 | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 SAE J1939, AHM36A-S3JC014x12, 1120251 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes

6048294

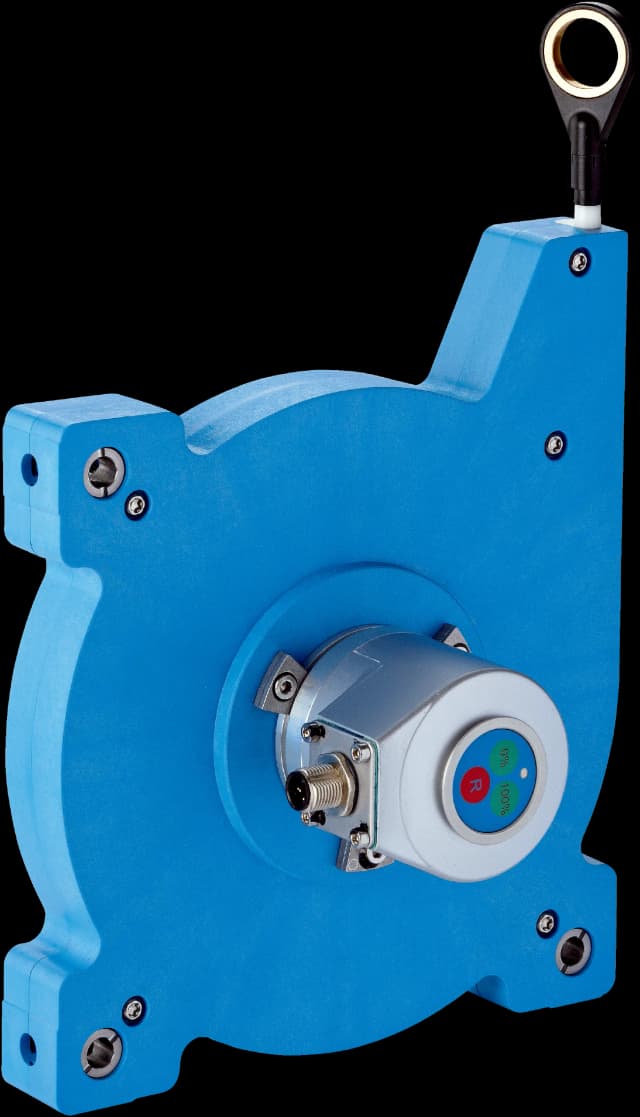

BCG19-K1EM10PP

SICK

Wire draw encoders | EcoLine | BCG19-K1EM10PP | Measuring range: 0 m ... 10 m | Communication interface: - / Current / 4...20 mA | Supply voltage: 18 V DC ... 33 V DC | Connection type: Male connector, M12, 5-pin, radial | Mounted encoder: ACM60, ACM60B-S1KE13X06, 6045312 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: no

6048295

BCG19-L1EM10PP

SICK

Wire draw encoders | EcoLine | BCG19-L1EM10PP | Measuring range: 0 m ... 10 m | Communication interface: - / Voltage / 0...10 V | Supply voltage: 18 V DC ... 33 V DC | Connection type: Male connector, M12, 5-pin, radial | Mounted encoder: ACM60, ACM60B-S1LE13X06, 6045313 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: no

1150697

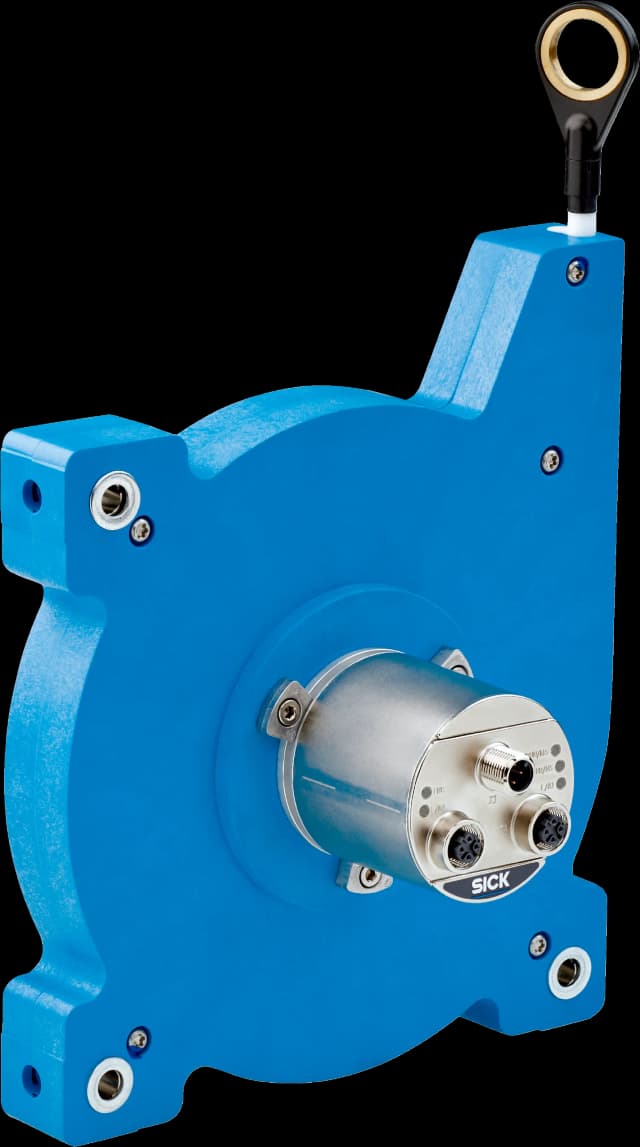

BCG19-N1BM1077

SICK

Wire draw encoders | EcoLine | BCG19-N1BM1077 | Measuring range: 0 m ... 10 m | Communication interface: PROFINET | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: ANM58 PROFINET, ANM58B-SANNB0000101000XX018X16, 1145910 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes
