Енкодери с изтеглящо се въже

Wire Draw Encoders

204 продукта · стр. 1/9

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

1068864

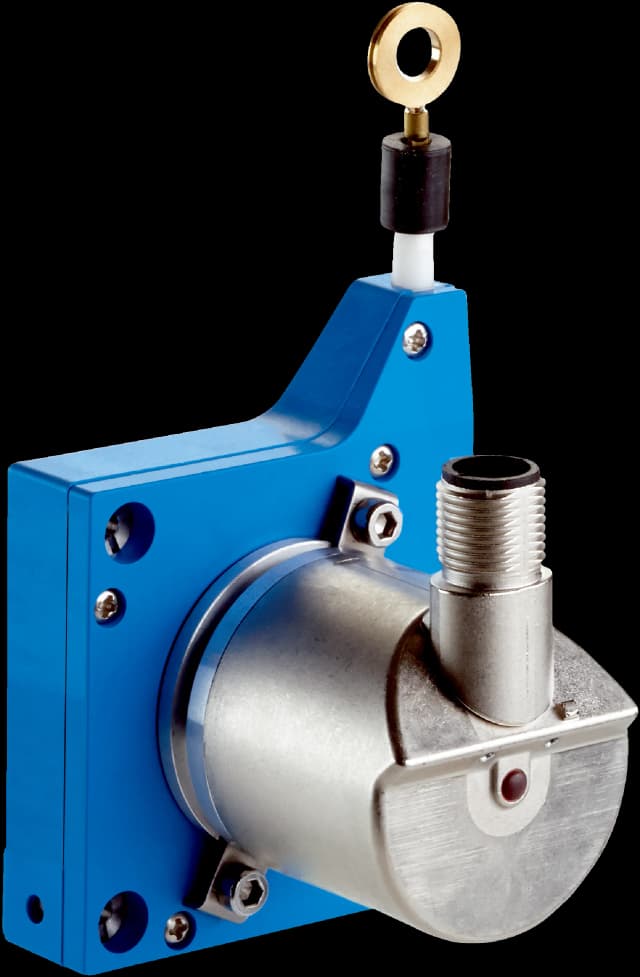

BCG05-A1NM0155

SICK

Wire draw encoders | EcoLine | BCG05-A1NM0155 | Measuring range: 0 m ... 1.25 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, universal | Mounted encoder: AHM36 SSI, AHM36A-SDPC013X12, 1068328 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: yes

1068865

BCG05-C1QM0199

SICK

Wire draw encoders | EcoLine | BCG05-C1QM0199 | Measuring range: 0 m ... 1.25 m | Communication interface: CANopen | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 CANopen, AHM36A-SDCC014x12, 1067977 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: yes

1127302

BCG05-J1QM0164

SICK

Wire draw encoders | EcoLine | BCG05-J1QM0164 | Measuring range: 0 m ... 1.25 m | Communication interface: SAE J1939 | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 SAE J1939, AHM36A-SDJC014X12 , 1127130 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: yes

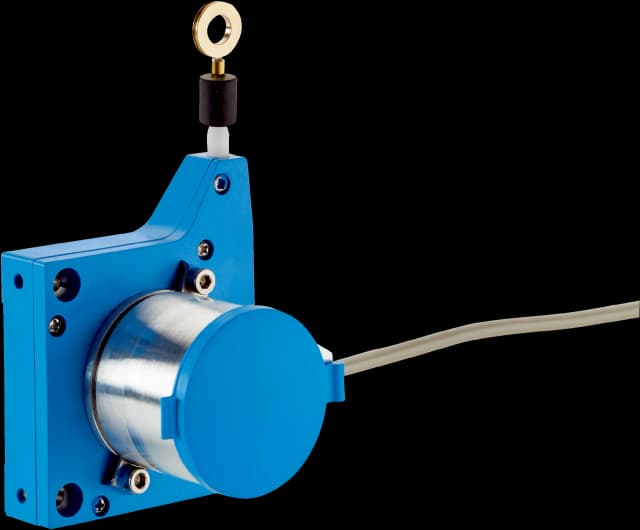

6039745

BCG05-K1KM01PP

SICK

Wire draw encoders | EcoLine | BCG05-K1KM01PP | Measuring range: 0 m ... 1.25 m | Communication interface: - / Current / 4...20 mA | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-K1K0-K01, 6039751 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: no

6039746

BCG05-L1KM01PP

SICK

Wire draw encoders | EcoLine | BCG05-L1KM01PP | Measuring range: 0 m ... 1.25 m | Communication interface: - / Voltage / 0...10 V | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-L1K0-K01, 6039752 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: no

1097278

BCG05-Q1PM0161

SICK

Wire draw encoders | EcoLine | BCG05-Q1PM0161 | Measuring range: 0 m ... 1.25 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Basic, AHM36B-SDQC012X12, 1092035 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: yes

1110588

BCG05-Q1PM0162

SICK

Wire draw encoders | EcoLine | BCG05-Q1PM0162 | Measuring range: 0 m ... 1.25 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Advanced, AHM36A-SDQC014X12, 1101538 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: yes

1061025

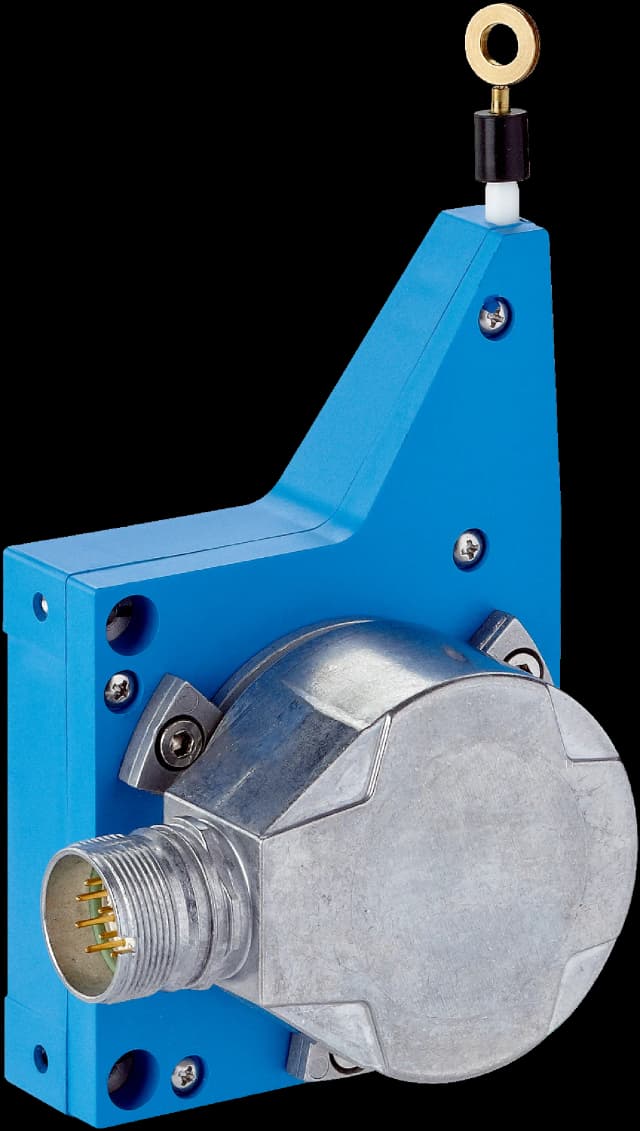

BCG08-A1AM0318

SICK

Wire draw encoders | EcoLine | BCG08-A1AM0318 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: AFM60 SSI, AFM60E-S1AA004096, 1037438 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no

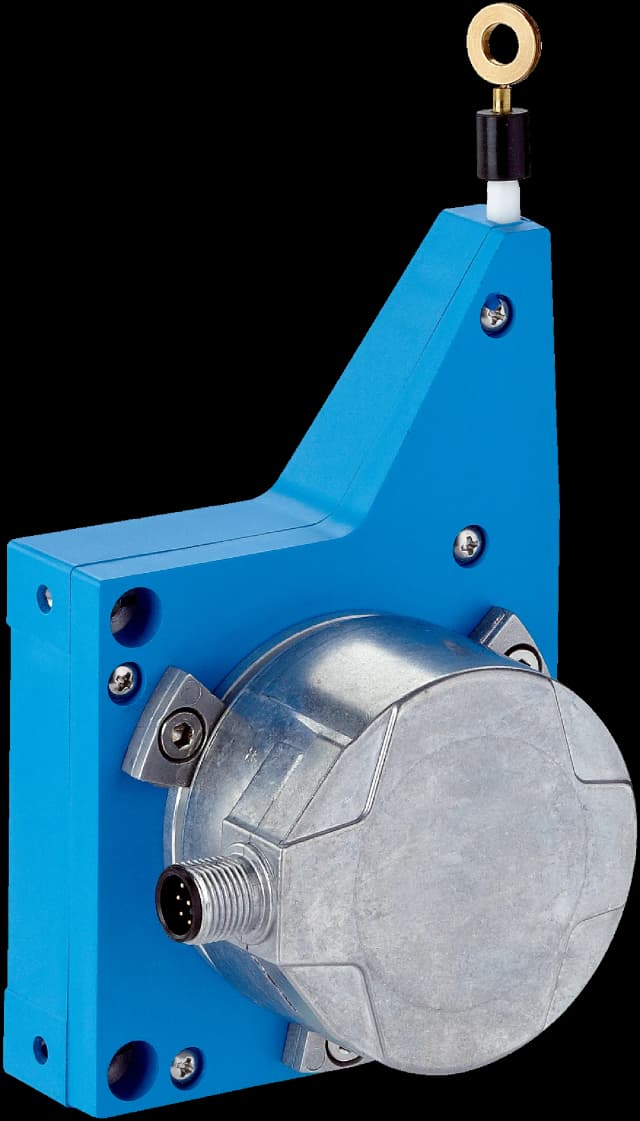

1054129

BCG08-A1CM0318

SICK

Wire draw encoders | EcoLine | BCG08-A1CM0318 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: AFM60 SSI, AFM60E-S1AC004096, 1037649 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no

1054131

BCG08-A1CM0336

SICK

Wire draw encoders | EcoLine | BCG08-A1CM0336 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: AFM60 SSI, AFM60B-S1AC008192, 1037863 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no

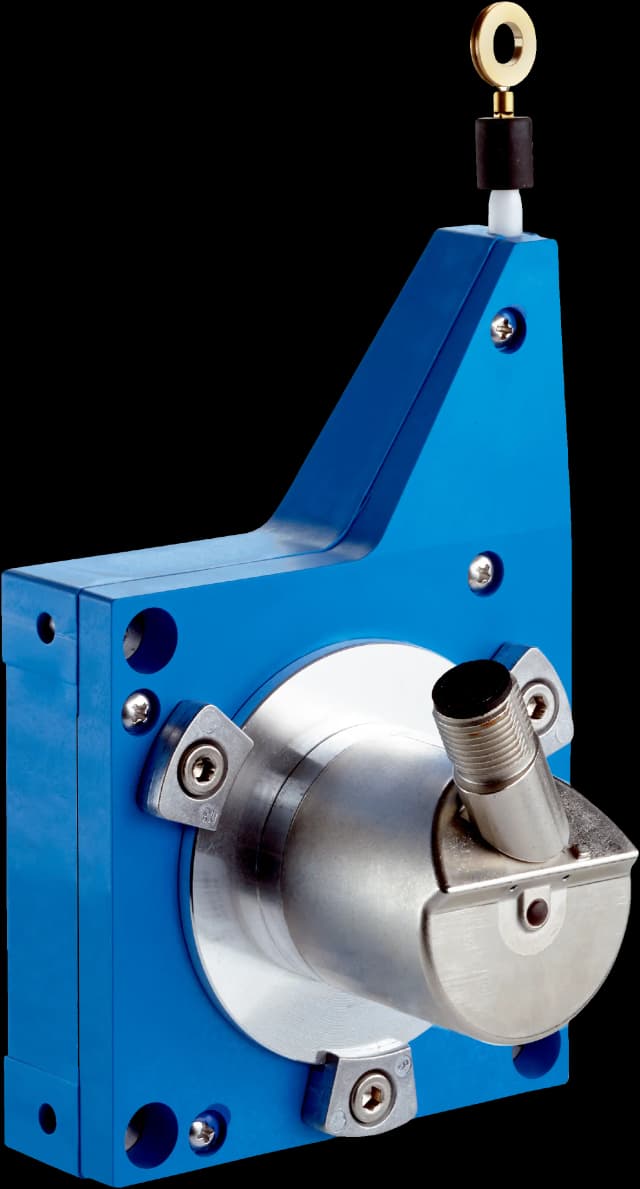

1068866

BCG08-A1NM0336

SICK

Wire draw encoders | EcoLine | BCG08-A1NM0336 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, universal | Mounted encoder: AHM36 SSI, AHM36A-S3PC013X12, 1068330 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1068867

BCG08-C1QM0371

SICK

Wire draw encoders | EcoLine | BCG08-C1QM0371 | Measuring range: 0 m ... 3 m | Communication interface: CANopen | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 CANopen, AHM36A-S3CC014x12, 1065999 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

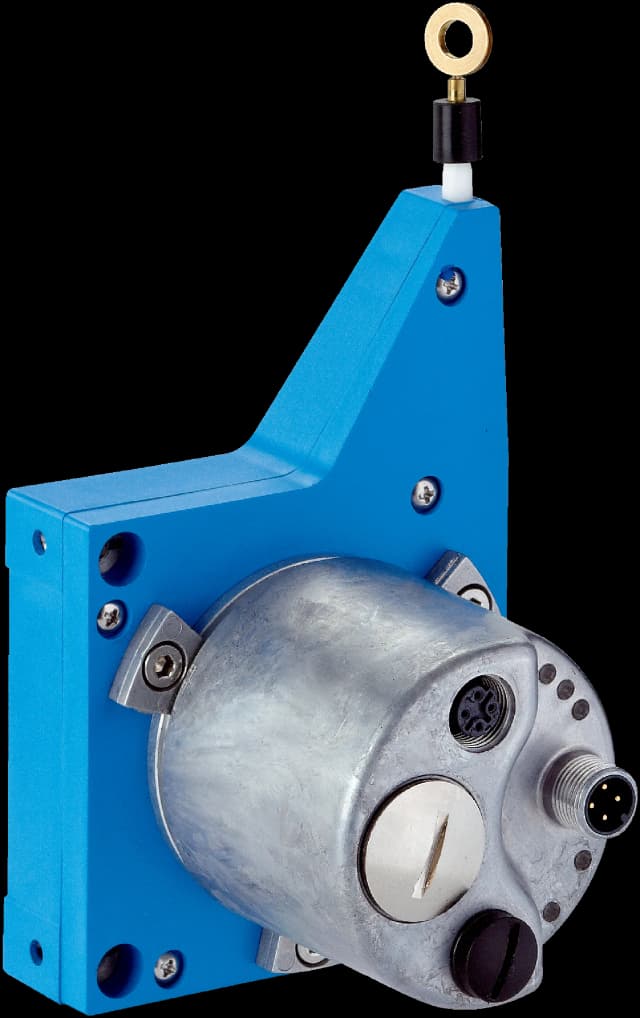

1061030

BCG08-E1BM0399

SICK

Wire draw encoders | EcoLine | BCG08-E1BM0399 | Measuring range: 0 m ... 3 m | Communication interface: EtherCAT® | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherCAT®, AFM60A-S1EB018x12, 1059061 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1061029

BCG08-I1BM0399

SICK

Wire draw encoders | EcoLine | BCG08-I1BM0399 | Measuring range: 0 m ... 3 m | Communication interface: EtherNet/IP™ | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherNet/IP, AFM60A-S1IB018x12, 1055331 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1127303

BCG08-J1QM0364

SICK

Wire draw encoders | EcoLine | BCG08-J1QM0364 | Measuring range: 0 m ... 3 m | Communication interface: SAE J1939 | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 SAE J1939, AHM36A-S3JC014x12, 1120251 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

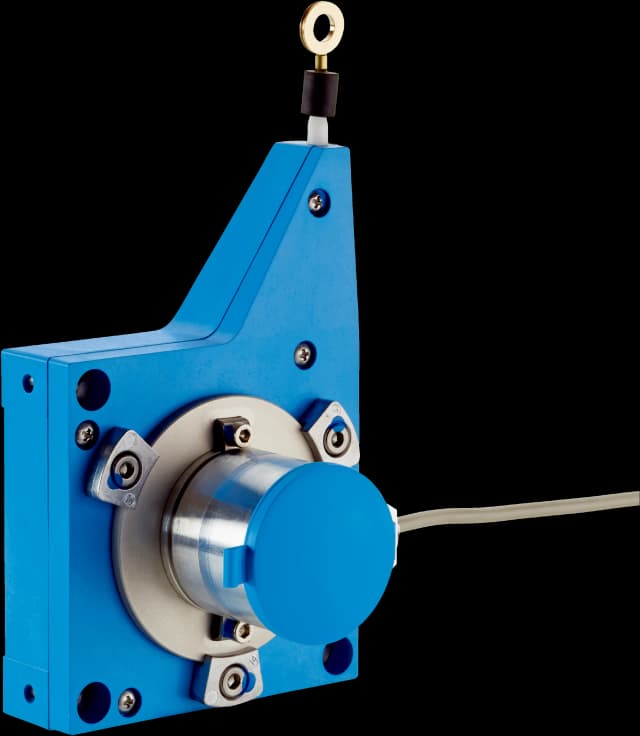

6039747

BCG08-K1KM03PP

SICK

Wire draw encoders | EcoLine | BCG08-K1KM03PP | Measuring range: 0 m ... 3 m | Communication interface: - / Current / 4...20 mA | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-K1K0-K01, 6039751 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no

6039748

BCG08-L1KM03PP

SICK

Wire draw encoders | EcoLine | BCG08-L1KM03PP | Measuring range: 0 m ... 3 m | Communication interface: - / Voltage / 0...10 V | Supply voltage: 19 V DC ... 33 V DC | Connection type: Cable, radial, 1.5 m | Mounted encoder: ACM36, ACM36-L1K0-K01, 6039752 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no

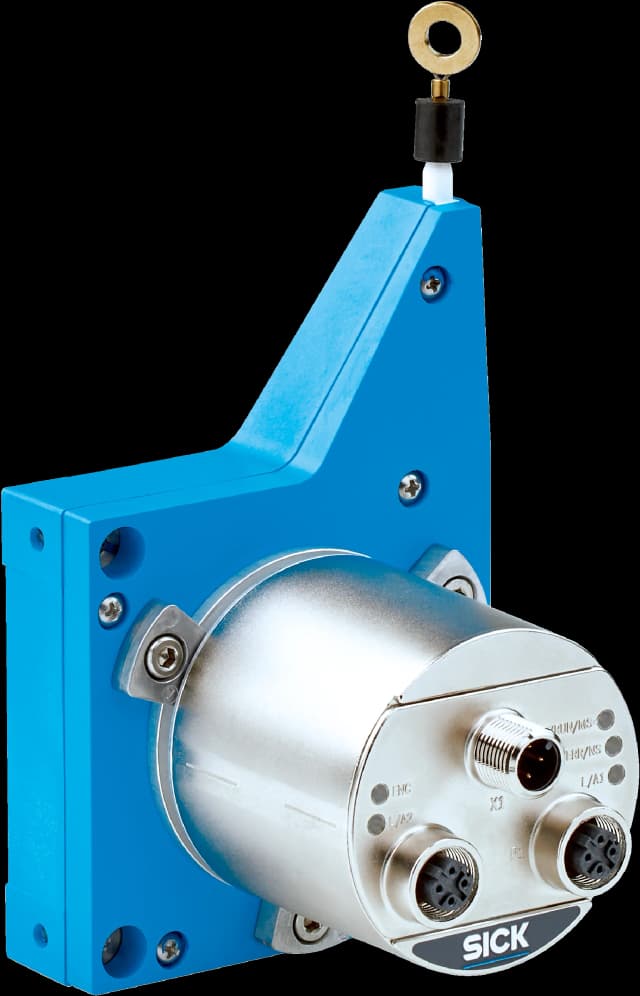

1150699

BCG08-N1BM0377

SICK

Wire draw encoders | EcoLine | BCG08-N1BM0377 | Measuring range: 0 m ... 3 m | Communication interface: PROFINET | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: ANM58 PROFINET, ANM58B-SANNB0000101000XX018X16, 1145910 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1061028

BCG08-N1BM0399

SICK

Wire draw encoders | EcoLine | BCG08-N1BM0399 | Measuring range: 0 m ... 3 m | Communication interface: PROFINET | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 PROFINET, AFM60A-S1NB018x12, 1059040 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

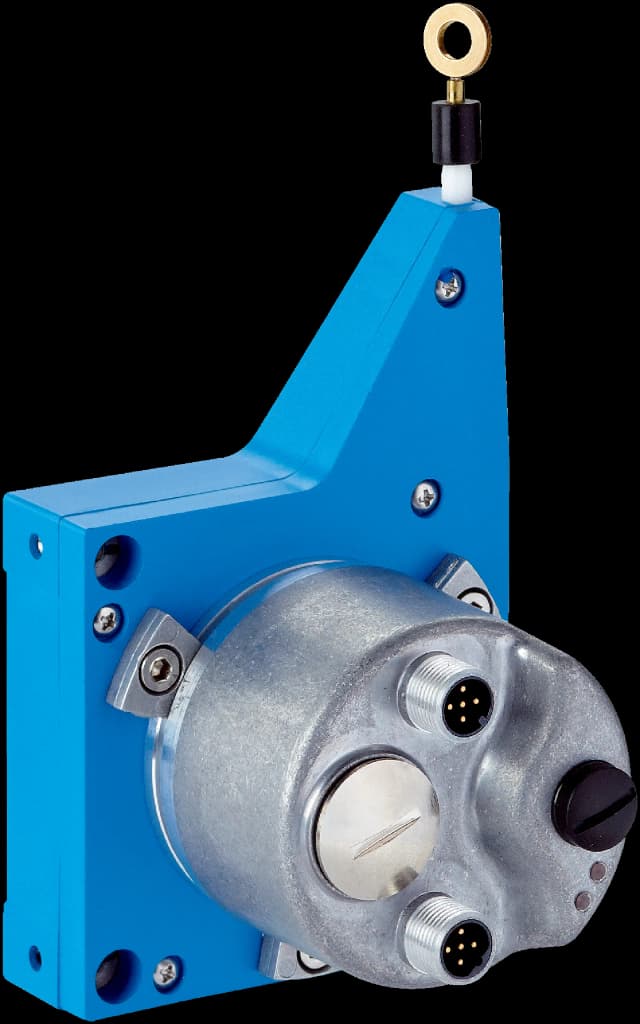

1052618

BCG08-P1BM0336

SICK

Wire draw encoders | EcoLine | BCG08-P1BM0336 | Measuring range: 0 m ... 3 m | Communication interface: PROFIBUS DP | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 2x, M12, 5-pin, axial, Female connector, 1x, M12, 5-pin, axial | Mounted encoder: A3M60, A3M60B-S1PB013X13, 1051018 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1097274

BCG08-Q1PM0361

SICK

Wire draw encoders | EcoLine | BCG08-Q1PM0361 | Measuring range: 0 m ... 3 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1110589

BCG08-Q1PM0362

SICK

Wire draw encoders | EcoLine | BCG08-Q1PM0362 | Measuring range: 0 m ... 3 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V ... 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Advanced, AHM36A-S3QC014X12, 1101532 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes

1061033

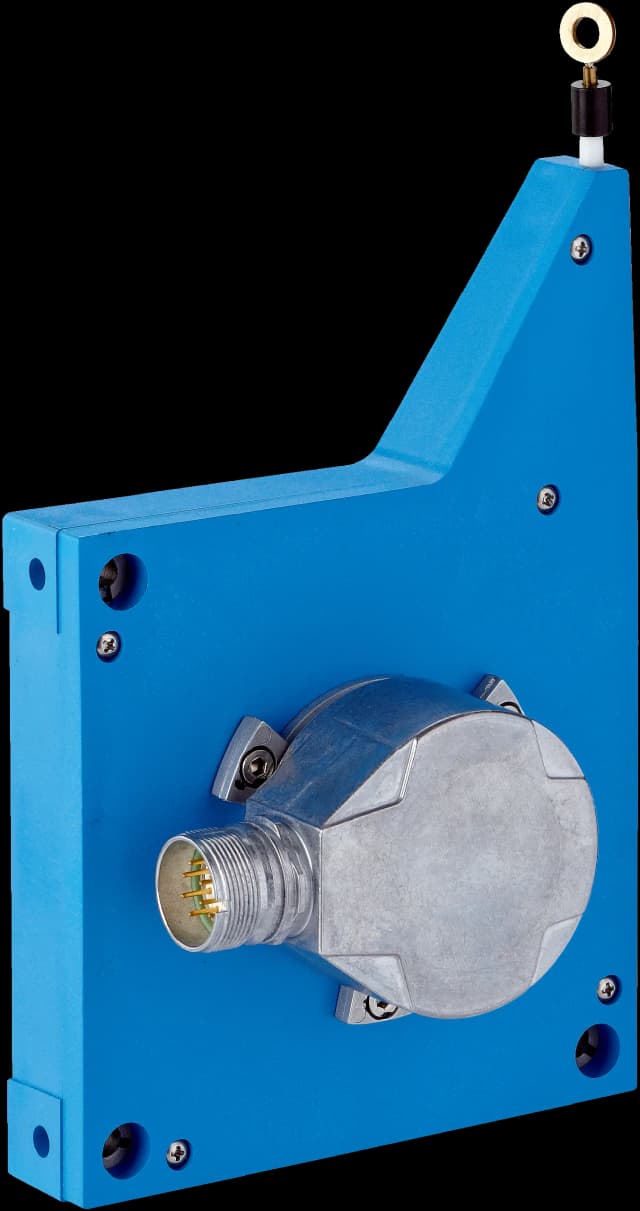

BCG13-A1AM0511

SICK

Wire draw encoders | EcoLine | BCG13-A1AM0511 | Measuring range: 0 m ... 5 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: AFM60 SSI, AFM60E-S1AA004096, 1037438 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: no

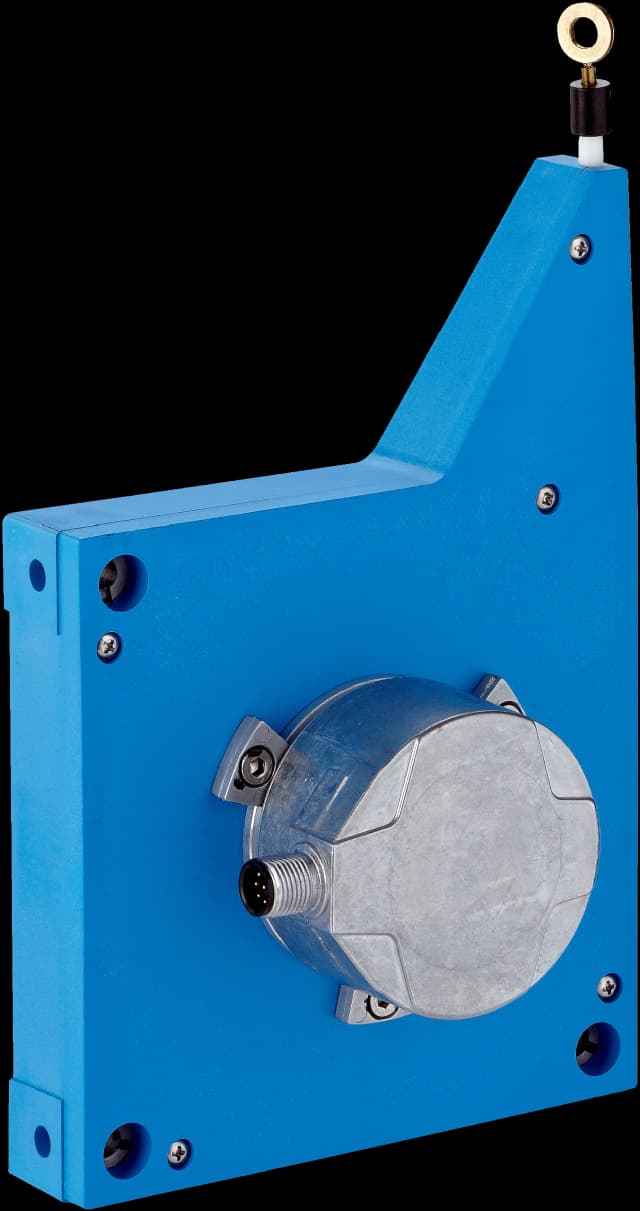

1061031

BCG13-A1CM0511

SICK

Wire draw encoders | EcoLine | BCG13-A1CM0511 | Measuring range: 0 m ... 5 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: AFM60 SSI, AFM60E-S1AC004096, 1037649 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: no
