Енкодери с измервателно колело
Measuring Wheel Encoders
180 продукта · стр. 1/8

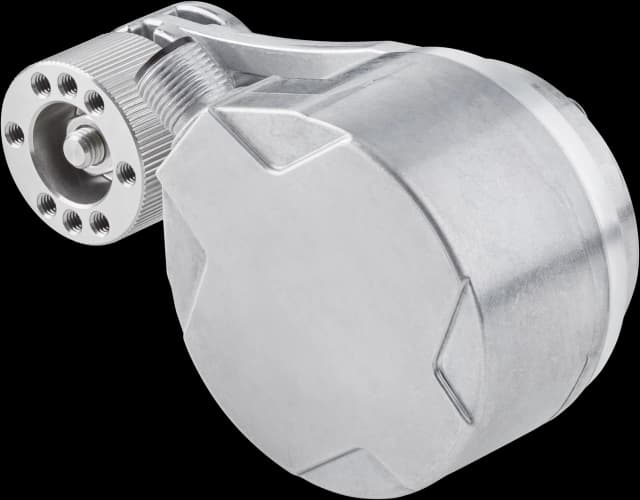

MWS075-00B352C110000
Measuring wheel encoders | MWS075 | MWS075-00B352C110000 | Communication interface: 4.5 V ... 32 V, Incremental, TTL, HTL | Supply voltage: 4.5 V ... 32 V | Mounted encoder: DFS60, DFS60B-S4PC10000, 1036721 | Connection type: Male connector, M12, 8-pin, radial
MWS075-00D142C102400
Measuring wheel encoders | MWS075 | MWS075-00D142C102400 | Communication interface: 4.75 V ... 30 V, Incremental, TTL, HTL | Supply voltage: 4.75 V ... 30 V | Mounted encoder: DUS60, DUS60E-S4KC0AAA, 1084487 | Connection type: Male connector, M12, 8-pin, universal

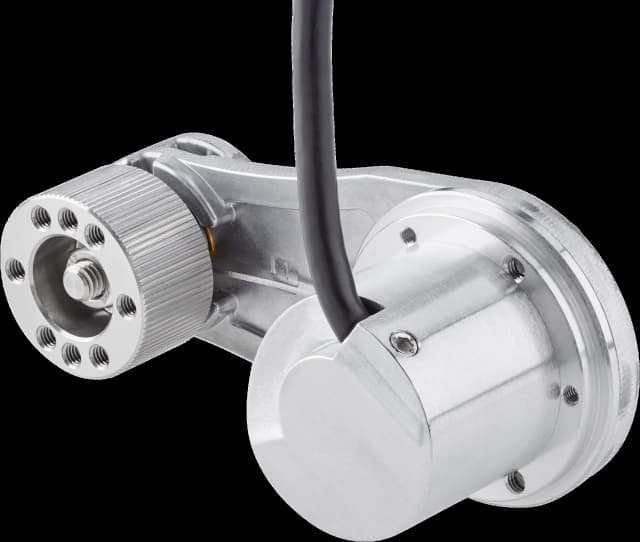

MWS075-12C111K102000
Measuring wheel encoders | MWS075 | MWS075-12C111K102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EK02000, 1062698 | Connection type: Cable, 8-wire, universal, 1.5 m | Resolution in pulses/mm: 10
MWS075-12C111N300050
Measuring wheel encoders | MWS075 | MWS075-12C111N300050 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push-Pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EN00050 | Connection type: Cable, 8-wire, universal, 10 m | Resolution in pulses/mm: 0.25
MWS075-12C111P100200
Measuring wheel encoders | MWS075 | MWS075-12C111P100200 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EP00200, 1087348 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 1
MWS075-12C111P100400
Measuring wheel encoders | MWS075 | MWS075-12C111P100400 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EP00400, 1146271 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 2
MWS075-12C111P100500
Measuring wheel encoders | MWS075 | MWS075-12C111P100500 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EP00500, 1068190 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 2.5
MWS075-12C111P101000
Measuring wheel encoders | MWS075 | MWS075-12C111P101000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EP01000, 1062886 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 5
MWS075-12C111P102000
Measuring wheel encoders | MWS075 | MWS075-12C111P102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EP02000, 1066174 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 10
MWS075-12C111P102500
Measuring wheel encoders | MWS075 | MWS075-12C111P102500 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5EP02500, 1065403 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 12.5
MWS075-12C121P100200
Measuring wheel encoders | MWS075 | MWS075-12C121P100200 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AP00200, 1065549 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 1
MWS075-12C121P100500
Measuring wheel encoders | MWS075 | MWS075-12C121P100500 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AP00500, 1066755 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 2.5
MWS075-12C121P101000
Measuring wheel encoders | MWS075 | MWS075-12C121P101000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AP01000, 1062786 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 5
MWS075-12C121P102000
Measuring wheel encoders | MWS075 | MWS075-12C121P102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AP02000, 1064388 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 10
MWS075-12C121P102500
Measuring wheel encoders | MWS075 | MWS075-12C121P102500 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AP02500, 1064841 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 12.5
MWS075-12C124P102000
Measuring wheel encoders | MWS075 | MWS075-12C124P102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V ... 30 V, Incremental, TTL, RS-422 | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5CP02000 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 10

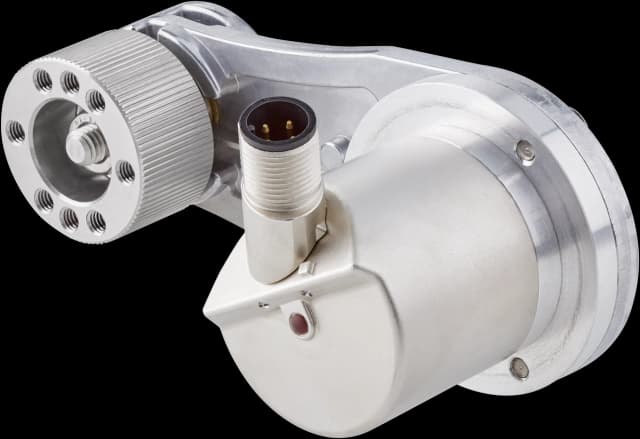

MWS075-12M2AQC114X12
Measuring wheel encoders | MWS075 | MWS075-12M2AQC114X12 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 18 V ... 30 V, IO-Link, IO-Link V1.1 | Supply voltage: 18 V ... 30 V | Mounted encoder: AHS/AHM36, AHM36A-SCQC014x12, 1101537 | Connection type: Male connector, M12, 4-pin, universal | Resolution in pulses/mm: 82

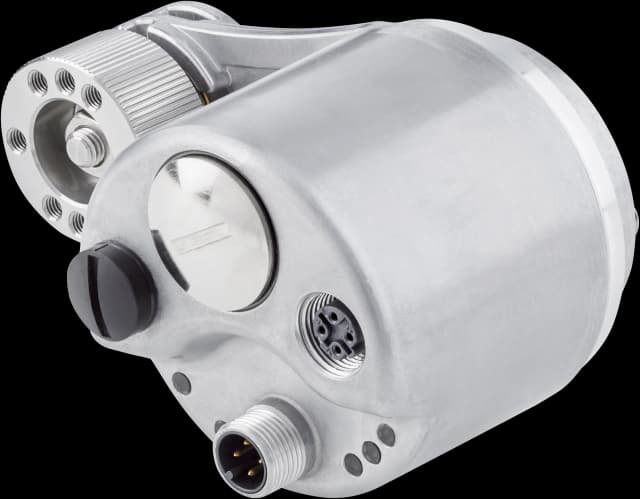

MWS075-12N2AEF118x12
Measuring wheel encoders | MWS075 | MWS075-12N2AEF118x12 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 10 V ... 30 V, EtherCAT®, CoE (CAN over EtherCAT®) | Supply voltage: 10 V ... 30 V | Mounted encoder: AFS/AFM60 Ethernet, AFM60A-S4EB018x12, 1059060 | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Resolution in pulses/mm: 1,310.72
MWS075-12N2AIF118x12
Measuring wheel encoders | MWS075 | MWS075-12N2AIF118x12 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 10 V ... 30 V, EtherNet/IP™ | Supply voltage: 10 V ... 30 V | Mounted encoder: AFS/AFM60 Ethernet, AFM60A-S4IB018x12, 1055334 | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Resolution in pulses/mm: 1,310.72
MWS075-12N2ANF118x12
Measuring wheel encoders | MWS075 | MWS075-12N2ANF118x12 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 10 V ... 30 V, PROFINET | Supply voltage: 10 V ... 30 V | Mounted encoder: AFS/AFM60 Ethernet, AFM60A-S4NB018x12, 1059039 | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Resolution in pulses/mm: 1,310.72
MWS075-14M2AQC114x12
Measuring wheel encoders | MWS075 | MWS075-14M2AQC114x12 | Measuring wheel circumference: 200 mm | Measuring wheel surface: Smooth polyurethan | Communication interface: 18 V ... 30 V, IO-Link, IO-Link V1.1 | Supply voltage: 18 V ... 30 V | Mounted encoder: AHS/AHM36, AHM36A-SCQC014X12, 1101537 | Connection type: Male connector, M12, 4-pin, universal | Resolution in pulses/mm: 82
MWS075-16C121K102500
Measuring wheel encoders | MWS075 | MWS075-16C121K102500 | Measuring wheel circumference: 200 mm | Measuring wheel surface: Vulcanized PU | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AK02500, 1062722 | Connection type: Cable, 8-wire, universal, 1.5 m | Resolution in pulses/mm: 12.5

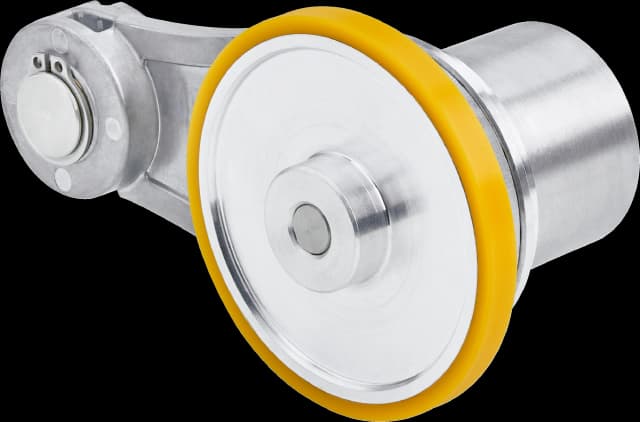

MWS075-16C121K302500
Measuring wheel encoders | MWS075 | MWS075-16C121K302500 | Measuring wheel circumference: 200 mm | Measuring wheel surface: Vulcanized PU | Communication interface: 4.5 V ... 5.5 V, Incremental, TTL, RS-422 | Supply voltage: 4.5 V ... 5.5 V | Mounted encoder: DBS36/50, DBS50E-S5AK02500, 1062722 | Connection type: Cable, 8-wire, universal, 1.5 m | Resolution in pulses/mm: 12.5
MWS075-16C124P102000
Measuring wheel encoders | MWS075 | MWS075-16C124P102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: Vulcanized PU | Communication interface: 7 V ... 30 V, Incremental, TTL, RS-422 | Supply voltage: 7 V ... 30 V | Mounted encoder: DBS36/50, DBS50E-S5CP02000, 1147796 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Resolution in pulses/mm: 10
