Инерционни сензори
Inertial Sensors
125 продукта · стр. 5/6
TMS22E-PKN180
Inertial sensors | TMS/TMM22 | TMS22E-PKN180 | Number of axis: 1 | Measuring range: 180° | Resolution: ≤ 0.03° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 10 m
TMS22E-PKN270
Inertial sensors | TMS/TMM22 | TMS22E-PKN270 | Number of axis: 1 | Measuring range: 270° | Resolution: ≤ 0.03° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 10 m
TMS22E-PLG120
Inertial sensors | TMS/TMM22 | TMS22E-PLG120 | Number of axis: 1 | Measuring range: 120° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 1 m
TMS22E-PLH090
Inertial sensors | TMS/TMM22 | TMS22E-PLH090 | Number of axis: 1 | Measuring range: 90° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
TMS22E-PLH180
Inertial sensors | TMS/TMM22 | TMS22E-PLH180 | Number of axis: 1 | Measuring range: 180° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
TMS22E-PLH240
Inertial sensors | TMS/TMM22 | TMS22E-PLH240 | Number of axis: 1 | Measuring range: 240° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
TMS22E-PLH360
Inertial sensors | TMS/TMM22 | TMS22E-PLH360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
TMS22E-PLH360S01
Inertial sensors | TMS/TMM22 | TMS22E-PLH360S01 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0.5 V ... 4.5 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m | Specialty: Voltage output 0.5 V ... 4.5 V, Customer-specific pin assignment
TMS22E-PLJ180
Inertial sensors | TMS/TMM22 | TMS22E-PLJ180 | Number of axis: 1 | Measuring range: 180° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 0.3 m
TMS22E-PLK045
Inertial sensors | TMS/TMM22 | TMS22E-PLK045 | Number of axis: 1 | Measuring range: 45° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 1.5 m
TMS22E-PLK060
Inertial sensors | TMS/TMM22 | TMS22E-PLK060 | Number of axis: 1 | Measuring range: 60° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 1.5 m
TMS22E-PLN090
Inertial sensors | TMS/TMM22 | TMS22E-PLN090 | Number of axis: 1 | Measuring range: 90° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 10 m
TMS22E-PLN180
Inertial sensors | TMS/TMM22 | TMS22E-PLN180 | Number of axis: 1 | Measuring range: 180° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 10 m
TMS22E-PLZ360S01
Inertial sensors | TMS/TMM22 | TMS22E-PLZ360S01 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.03° | Communication interface: - / Voltage | Voltage output: 0.1 V ... 4.9 V | Programmable/configurable: no | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.15 m | Specialty: Two opposite 0,1 ... 4,9 V analog outputs, Customer-specific pin assignment, vertical mounting d

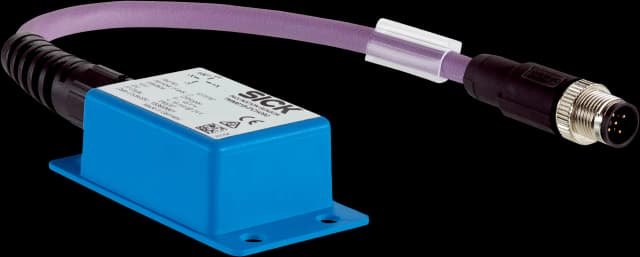

TMS61B-PCH360
Inertial sensors | TMS/TMM61 | TMS61B-PCH360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (ABS) | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.2 m

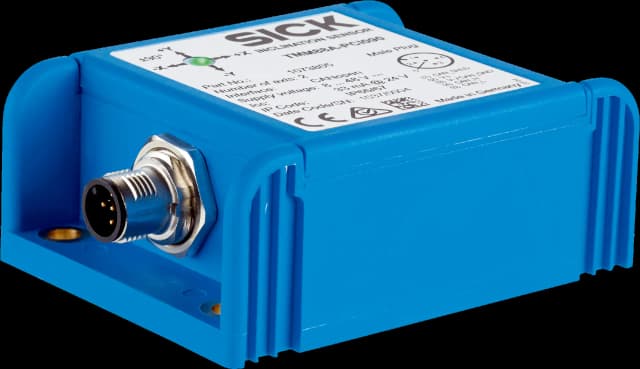

TMS88A-PCI360
Inertial sensors | TMS/TMM88 | TMS88A-PCI360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMS88A-PKC360
Inertial sensors | TMS/TMM88 | TMS88A-PKC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin
TMS88A-PLC360
Inertial sensors | TMS/TMM88 | TMS88A-PLC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin
TMS88B-ACC360
Inertial sensors | TMS/TMM88 | TMS88B-ACC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, M12, 5-pin
TMS88B-AKC360
Inertial sensors | TMS/TMM88 | TMS88B-AKC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, M12, 5-pin
TMS88B-ALC360
Inertial sensors | TMS/TMM88 | TMS88B-ALC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, M12, 5-pin
TMS88B-PKC360
Inertial sensors | TMS/TMM88 | TMS88B-PKC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin
TMS88B-PLC360
Inertial sensors | TMS/TMM88 | TMS88B-PLC360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin
TMS88D-ACI360
Inertial sensors | TMS/TMM88 Dynamic | TMS88D-ACI360 | Number of axis: 1 | Measuring range: 360° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
