Инерционни сензори
Inertial Sensors
125 продукта · стр. 3/6

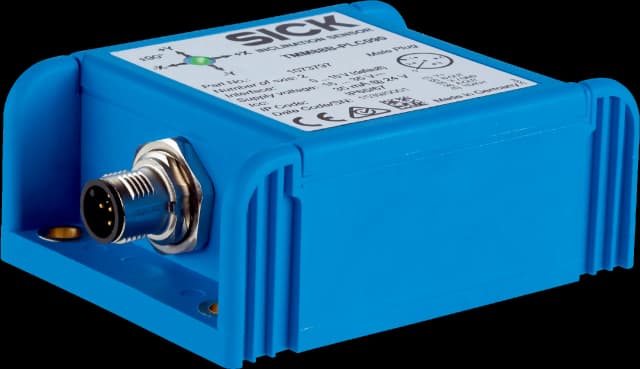

TMM88A-PLC090
Inertial sensors | TMS/TMM88 | TMM88A-PLC090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin

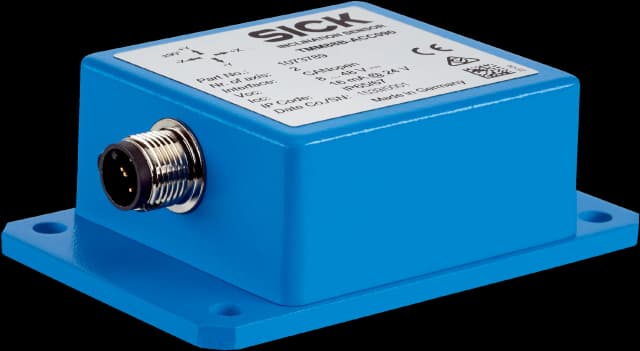

TMM88B-ACC090
Inertial sensors | TMS/TMM88 | TMM88B-ACC090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, M12, 5-pin
TMM88B-AKC090
Inertial sensors | TMS/TMM88 | TMM88B-AKC090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, M12, 5-pin
TMM88B-ALC090
Inertial sensors | TMS/TMM88 | TMM88B-ALC090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, M12, 5-pin
TMM88B-PKC090
Inertial sensors | TMS/TMM88 | TMM88B-PKC090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin
TMM88B-PLC090
Inertial sensors | TMS/TMM88 | TMM88B-PLC090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, M12, 5-pin
TMM88D-ACI090
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-ACI090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMM88D-AJI090
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-AJI090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: SAE J1939 | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Aluminum | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMM88D-MCI090A
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-MCI090A | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Housing material: Die-cast zinc | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMM88D-MCI090AS01
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-MCI090AS01 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Housing material: Die-cast zinc | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin | Specialty: Baudrate factory setted to 250 kbit/s
TMM88D-MJI090A
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-MJI090A | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: SAE J1939 | Programmable/configurable: yes | Housing material: Die-cast zinc | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMM88D-PCI090
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-PCI090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMM88D-PCI090S05
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-PCI090S05 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin | Specialty: Node ID 19, baud rate 500 kBit/s, values are stored as default parameters so that they are available again after the sensor is reset
TMM88D-PCI090S10
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-PCI090S10 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: CANopen | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin | Specialty: Customized type code, exclusiveness, Improved EMC stability regarding Pulse 5 of ISO 7637-2
TMM88D-PJI090
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-PJI090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: SAE J1939 | Programmable/configurable: yes | Programming interface: Over PGT-12-Pro | Housing material: Plastic (PBT) | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
TMS22B-PKE360
Inertial sensors | TMS/TMM22 | TMS22B-PKE360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 10 m
TMS22B-PKF360
Inertial sensors | TMS/TMM22 | TMS22B-PKF360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 5 m
TMS22B-PKG360
Inertial sensors | TMS/TMM22 | TMS22B-PKG360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 1 m
TMS22B-PKH360
Inertial sensors | TMS/TMM22 | TMS22B-PKH360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m
TMS22B-PKJ360
Inertial sensors | TMS/TMM22 | TMS22B-PKJ360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 0.5 m
TMS22B-PKK120
Inertial sensors | TMS/TMM22 | TMS22B-PKK120 | Number of axis: 1 | Measuring range: 120° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 1.5 m
TMS22B-PKK360
Inertial sensors | TMS/TMM22 | TMS22B-PKK360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 1.5 m
TMS22B-PKL360
Inertial sensors | TMS/TMM22 | TMS22B-PKL360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 3 m
TMS22B-PKM360
Inertial sensors | TMS/TMM22 | TMS22B-PKM360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 5 m
