Инкрементални енкодери

Incremental Encoders

10229 продукта · стр. 206/427

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

1153734

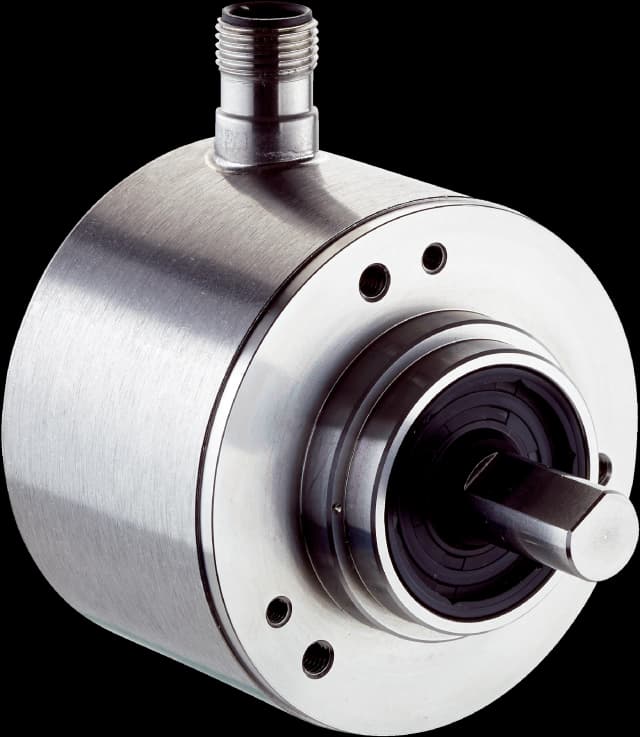

DBS60I-S4FC01000

SICK

Incremental encoders | DBS60 | DBS60I-S4FC01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1155273

DBS60I-S4FC02048

SICK

Incremental encoders | DBS60 | DBS60I-S4FC02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1126855

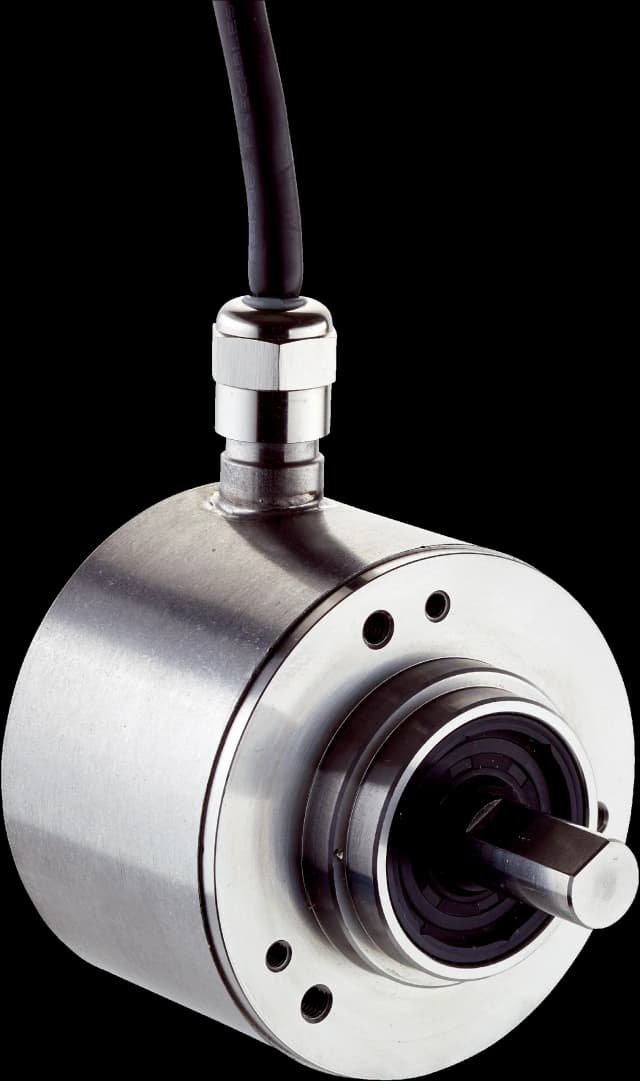

DBS60I-S4FK00360

SICK

Incremental encoders | DBS60 | DBS60I-S4FK00360 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 360 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1111140

DBS60I-S4FM00512

SICK

Incremental encoders | DBS60 | DBS60I-S4FM00512 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 512 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1089705

DBS60I-S4FM01000

SICK

Incremental encoders | DBS60 | DBS60I-S4FM01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1089707

DBS60I-S4FM02000

SICK

Incremental encoders | DBS60 | DBS60I-S4FM02000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1089710

DBS60I-S4FM05000

SICK

Incremental encoders | DBS60 | DBS60I-S4FM05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

1111504

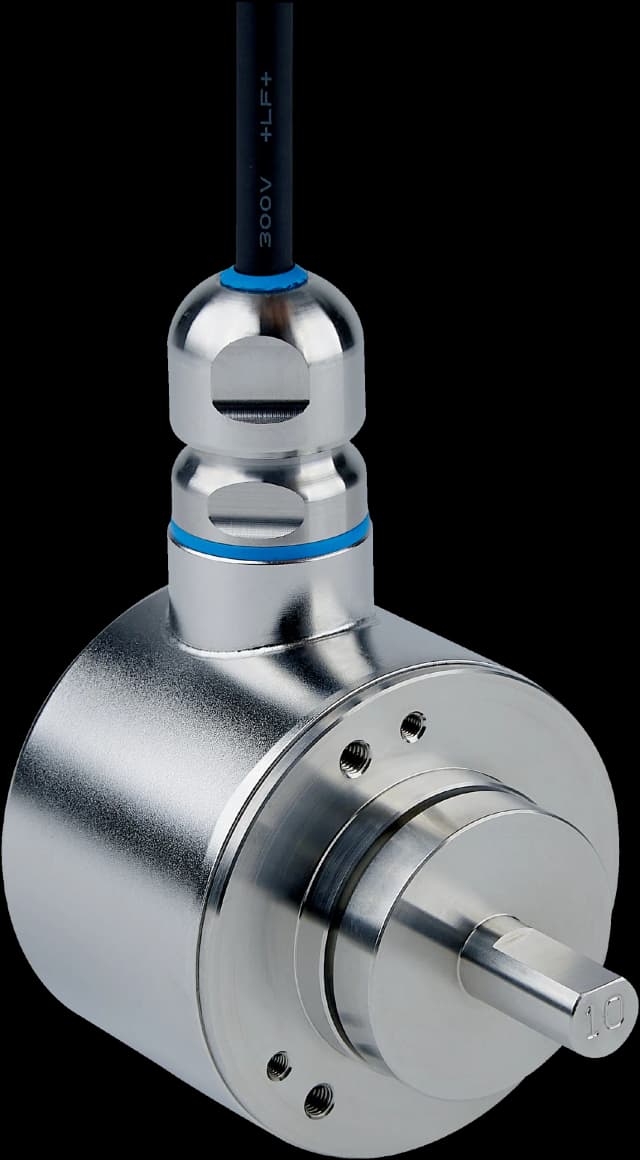

DBS60I-W4FK01000

SICK

Incremental encoders | DBS60 | DBS60I-W4FK01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111505

DBS60I-W4FK01024

SICK

Incremental encoders | DBS60 | DBS60I-W4FK01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111506

DBS60I-W4FK02048

SICK

Incremental encoders | DBS60 | DBS60I-W4FK02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111507

DBS60I-W4FK05000

SICK

Incremental encoders | DBS60 | DBS60I-W4FK05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111508

DBS60I-W4FM01000

SICK

Incremental encoders | DBS60 | DBS60I-W4FM01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111509

DBS60I-W4FM01024

SICK

Incremental encoders | DBS60 | DBS60I-W4FM01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111510

DBS60I-W4FM02048

SICK

Incremental encoders | DBS60 | DBS60I-W4FM02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111511

DBS60I-W4FM05000

SICK

Incremental encoders | DBS60 | DBS60I-W4FM05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1116967

DBS60I-W4FN01000

SICK

Incremental encoders | DBS60 | DBS60I-W4FN01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 10 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1116968

DBS60I-W4FN01024

SICK

Incremental encoders | DBS60 | DBS60I-W4FN01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1116969

DBS60I-W4FN02048

SICK

Incremental encoders | DBS60 | DBS60I-W4FN02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 10 m | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1116699

DBS60I-W4FN05000

SICK

Incremental encoders | DBS60 | DBS60I-W4FN05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 10 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111512

DBS60I-W9FK01000

SICK

Incremental encoders | DBS60 | DBS60I-W9FK01000 | Mechanical design: Solid shaft face mount flange 3/8″ x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111513

DBS60I-W9FK01024

SICK

Incremental encoders | DBS60 | DBS60I-W9FK01024 | Mechanical design: Solid shaft face mount flange 3/8″ x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111514

DBS60I-W9FK02048

SICK

Incremental encoders | DBS60 | DBS60I-W9FK02048 | Mechanical design: Solid shaft face mount flange 3/8″ x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111515

DBS60I-W9FK05000

SICK

Incremental encoders | DBS60 | DBS60I-W9FK05000 | Mechanical design: Solid shaft face mount flange 3/8″ x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K

1111516

DBS60I-W9FM01000

SICK

Incremental encoders | DBS60 | DBS60I-W9FM01000 | Mechanical design: Solid shaft face mount flange 3/8″ x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V4A (316L) / IP69K
