Инкрементални енкодери
Incremental Encoders
10229 продукта · стр. 205/427
DBS60I-BGEC05000
Incremental encoders | DBS60 | DBS60I-BGEC05000 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BGFM01024
Incremental encoders | DBS60 | DBS60I-BGFM01024 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BGFM02000
Incremental encoders | DBS60 | DBS60I-BGFM02000 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHAC01000
Incremental encoders | DBS60 | DBS60I-BHAC01000 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHEM02048
Incremental encoders | DBS60 | DBS60I-BHEM02048 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHFC00360
Incremental encoders | DBS60 | DBS60I-BHFC00360 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 360 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHFC05000
Incremental encoders | DBS60 | DBS60I-BHFC05000 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHFK00360
Incremental encoders | DBS60 | DBS60I-BHFK00360 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 360 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHFM01024
Incremental encoders | DBS60 | DBS60I-BHFM01024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-BHFM02048
Incremental encoders | DBS60 | DBS60I-BHFM02048 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67

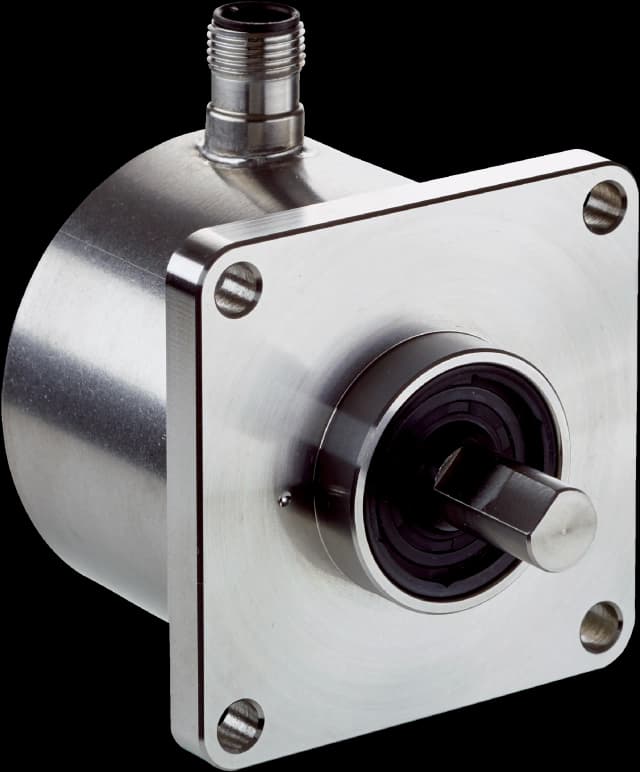

DBS60I-Q4AC02000
Incremental encoders | DBS60 | DBS60I-Q4AC02000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67

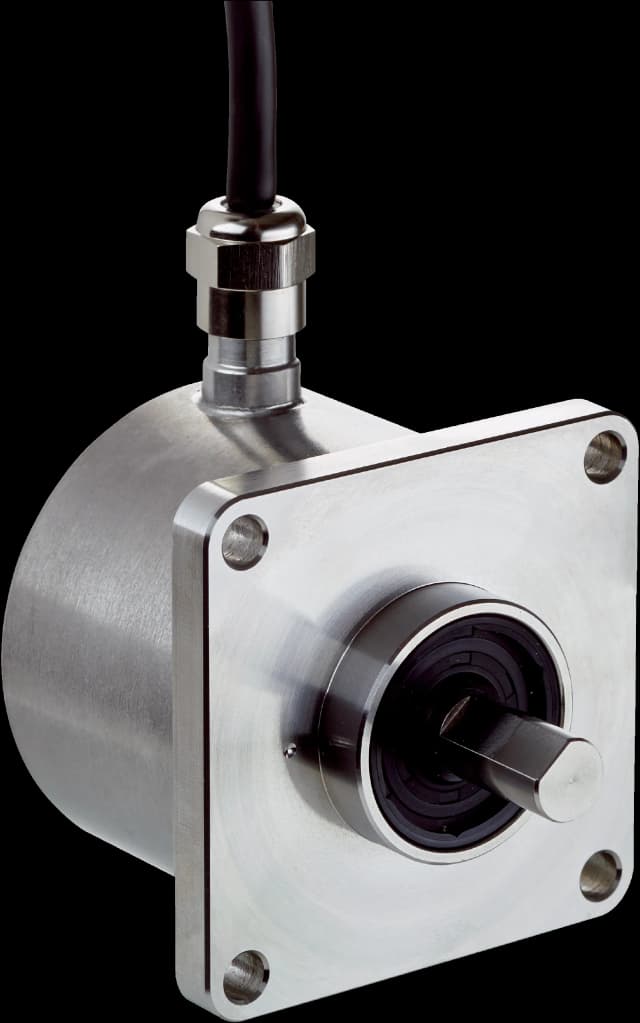

DBS60I-Q4CM02000
Incremental encoders | DBS60 | DBS60I-Q4CM02000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-Q4EC01024
Incremental encoders | DBS60 | DBS60I-Q4EC01024 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-Q4EC02000
Incremental encoders | DBS60 | DBS60I-Q4EC02000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-Q4FM01000
Incremental encoders | DBS60 | DBS60I-Q4FM01000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-Q4FM02000
Incremental encoders | DBS60 | DBS60I-Q4FM02000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-Q4FM05000
Incremental encoders | DBS60 | DBS60I-Q4FM05000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4AC00600
Incremental encoders | DBS60 | DBS60I-S4AC00600 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 600 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4AC01000
Incremental encoders | DBS60 | DBS60I-S4AC01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4AC01024
Incremental encoders | DBS60 | DBS60I-S4AC01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4AM00004
Incremental encoders | DBS60 | DBS60I-S4AM00004 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 4 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4CC02000
Incremental encoders | DBS60 | DBS60I-S4CC02000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4EM01024
Incremental encoders | DBS60 | DBS60I-S4EM01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
DBS60I-S4EM05000
Incremental encoders | DBS60 | DBS60I-S4EM05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
