Серия Shaft couplings
36 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
KUP-0606-B
Shaft adaptation | Shaft couplings | KUP-0606-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub
KUP-0606-BJ
Shaft adaptation | Shaft couplings | KUP-0606-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key
KUP-0606-BP
Shaft adaptation | Shaft couplings | KUP-0606-BP | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub, for use with feather key
KUP-0606-BS
Shaft adaptation | Shaft couplings | KUP-0606-BS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30 °C ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each
KUP-0606-D
Shaft adaptation | Shaft couplings | KUP-0606-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double-loop coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°; max. speed 3,000 rpm, –30 °C to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
KUP-0606-F
Shaft adaptation | Shaft couplings | KUP-0606-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 6 mm / 6 mm
KUP-0606-J
Shaft adaptation | Shaft couplings | KUP-0606-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 6 mm / 6 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane
KUP-0606-S
Shaft adaptation | Shaft couplings | KUP-0606-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Cross-slotted coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub
KUP-0608-S
Shaft adaptation | Shaft couplings | KUP-0608-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 6 mm /8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°, max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub
KUP-0610-B
Shaft adaptation | Shaft couplings | KUP-0610-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub
KUP-0610-BJ
Shaft adaptation | Shaft couplings | KUP-0610-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key
KUP-0610-BP
Shaft adaptation | Shaft couplings | KUP-0610-BP | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub, for use with feather key
KUP-0610-BS
Shaft adaptation | Shaft couplings | KUP-0610-BS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 10 mm, bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30 °C ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each
KUP-0610-D
Shaft adaptation | Shaft couplings | KUP-0610-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad
KUP-0610-F
Shaft adaptation | Shaft couplings | KUP-0610-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 6 mm / 10 mm, Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°; max. speed 12,000 rpm, –10° to +80 °C, max. torque 60 Ncm; material: aluminum flange, glass fiber-reinforced polyamide membrane and hardened steel coupling pin
KUP-0610-J
Shaft adaptation | Shaft couplings | KUP-0610-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 6 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane
KUP-0610-S
Shaft adaptation | Shaft couplings | KUP-0610-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, –10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub
KUP-0808-S
Shaft adaptation | Shaft couplings | KUP-0808-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 8 mm /8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub
KUP-0810-D
Shaft adaptation | Shaft couplings | KUP-0810-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 8 mm / 10 mm, max. shaft offset: radially +/- 0,25 mm, axially +/-0,4 mm, angle +/- 4 degrees;max. speed 10.000 rpm, –30 to +120 degrees Celsius, torsional spring stiffness of 150 Nm/rad
KUP-0810-J
Shaft adaptation | Shaft couplings | KUP-0810-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 8 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane
KUP-0810-S
Shaft adaptation | Shaft couplings | KUP-0810-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 8 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, –10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub
KUP-1010-B
Shaft adaptation | Shaft couplings | KUP-1010-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm/10 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs
KUP-1010-BJ
Shaft adaptation | Shaft couplings | KUP-1010-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key
KUP-1010-BP
Shaft adaptation | Shaft couplings | KUP-1010-BP | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub, for use with feather key
KUP-1010-BS
Shaft adaptation | Shaft couplings | KUP-1010-BS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30° ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each
KUP-1010-D
Shaft adaptation | Shaft couplings | KUP-1010-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 10 mm / 10 mm, Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
KUP-1010-F
Shaft adaptation | Shaft couplings | KUP-1010-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset, radial ± 0.3 mm, axial ± 0.4 mm, angle ± 2.5°, torsion spring stiffness 30 Nm/rad; material: aluminum flange, glass-fiber reinforced polyamide membrane and hardened steel coupling pin
KUP-1010-J
Shaft adaptation | Shaft couplings | KUP-1010-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 10 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane
KUP-1010-S
Shaft adaptation | Shaft couplings | KUP-1010-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 10 mm / 10 mm; maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angular ± 3°; speed 10,000 rpm, –10° to +80° Celsius, max. torque 80 Ncm; material: glass fiber-reinforced polyamide, aluminum hub

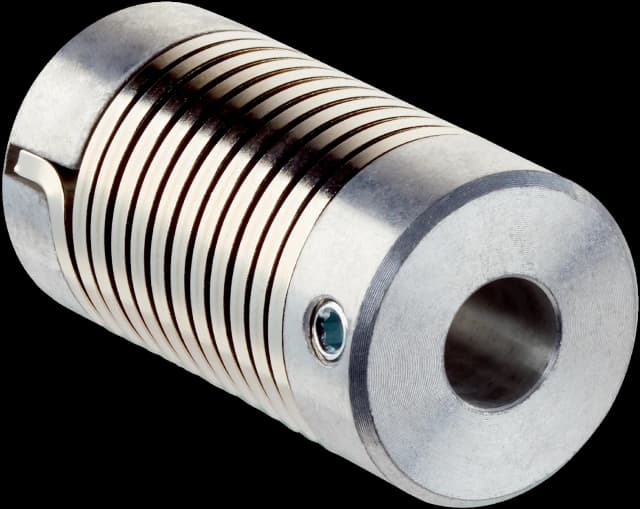

KUP-1010-WSS
Shaft adaptation | Shaft couplings | KUP-1010-WSS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial +/- 1.5 mm, axial +/- 1.0 mm, angular +/- 5°, max. speed 3,000 rpm, –40° to +120 °Celsius, nominal torque 300 Ncm, rotational angle at half nominal torque, direction of rotation right viewed on driving shaft 40°, left viewed on driving shaft 60°, material: spring steel 1.1200 nickel plated, hubs
KUP-1012-B
Shaft adaptation | Shaft couplings | KUP-1012-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: 10 mm / 12 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs
KUP-1012-D
Shaft adaptation | Shaft couplings | KUP-1012-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 10 mm / 12 mm, Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
KUP-1012-J
Shaft adaptation | Shaft couplings | KUP-1012-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 10 mm / 12 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane
KUP-1015-B
Shaft adaptation | Shaft couplings | KUP-1015-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: 10 mm / 15 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs

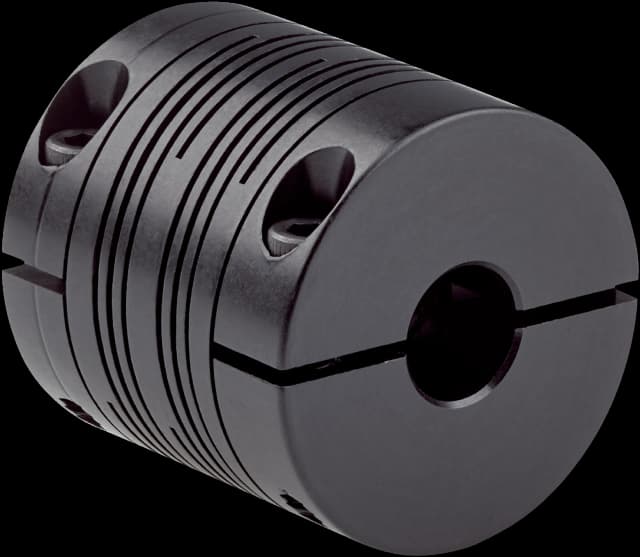

KUP-1038-H
Shaft adaptation | Shaft couplings | KUP-1038-H | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Encoder shaft coupling for shaft diameter 10 mm ... 3/8"
KUP-3838-H
Shaft adaptation | Shaft couplings | KUP-3838-H | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Encoder shaft coupling for shaft diameter 3/8"
