Адаптери за валове

Shaft Adaptation

108 продукта · стр. 1/5

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

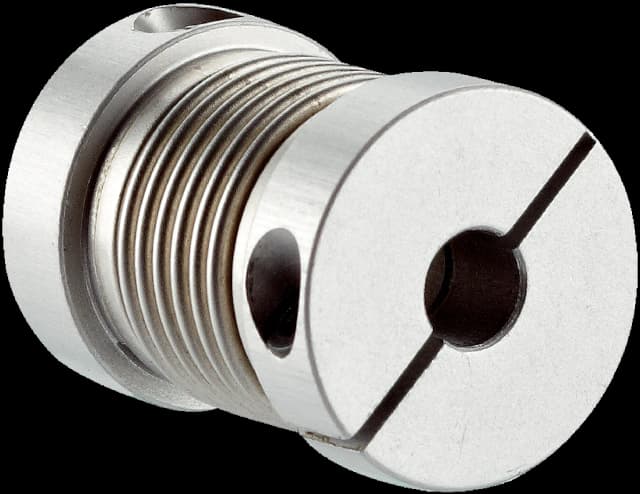

5312981

KUP-0606-B

SICK

Shaft adaptation | Shaft couplings | KUP-0606-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub

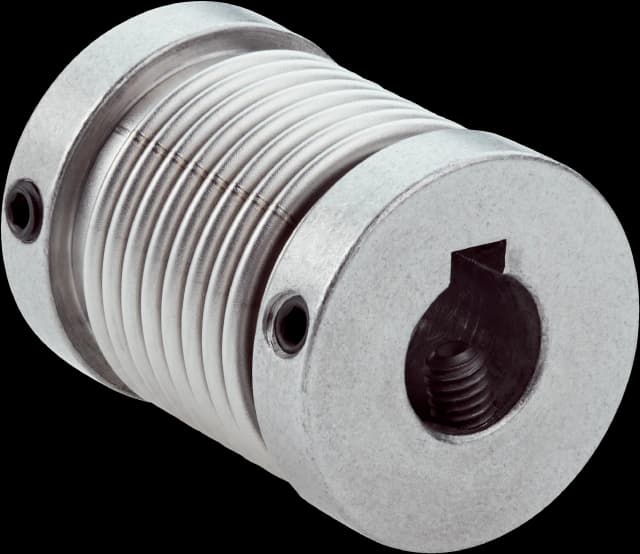

2125000

KUP-0606-BJ

SICK

Shaft adaptation | Shaft couplings | KUP-0606-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key

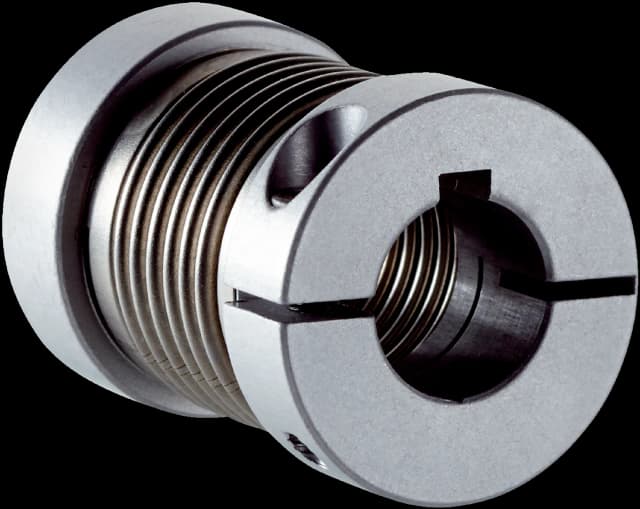

2075379

KUP-0606-BP

SICK

Shaft adaptation | Shaft couplings | KUP-0606-BP | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub, for use with feather key

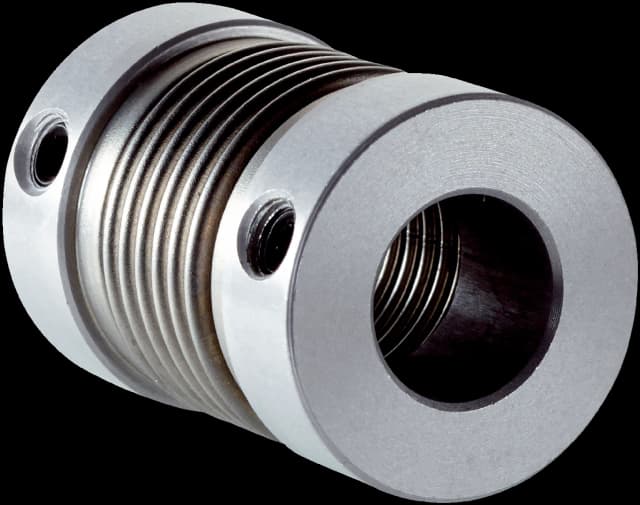

2075378

KUP-0606-BS

SICK

Shaft adaptation | Shaft couplings | KUP-0606-BS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30 °C ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each

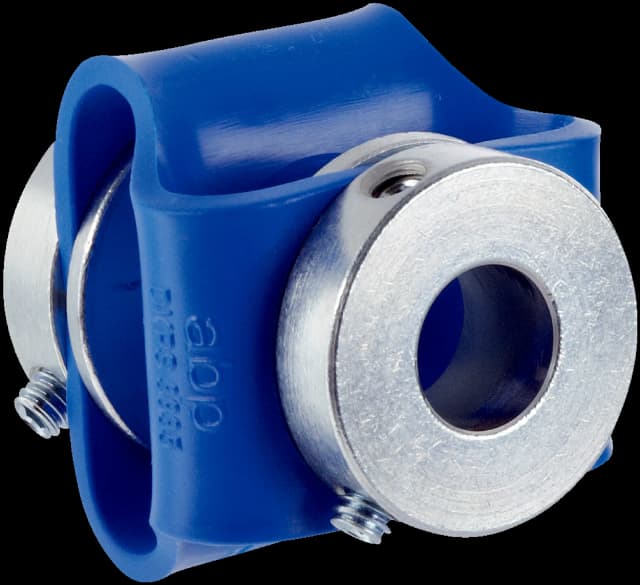

5340152

KUP-0606-D

SICK

Shaft adaptation | Shaft couplings | KUP-0606-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double-loop coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°; max. speed 3,000 rpm, –30 °C to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange

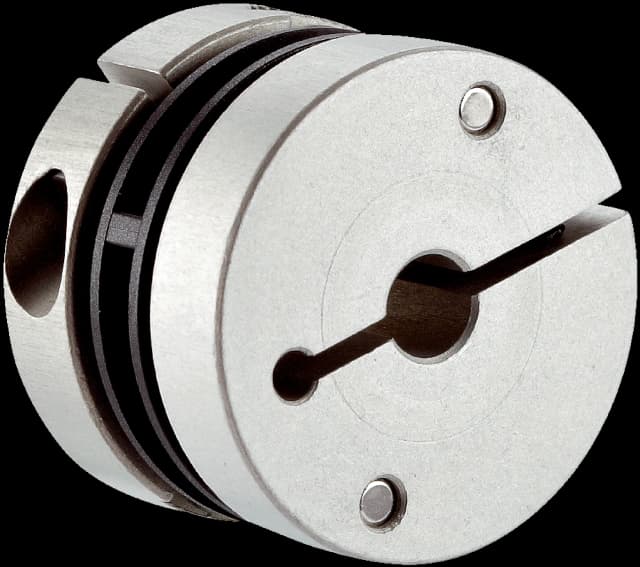

5313773

KUP-0606-F

SICK

Shaft adaptation | Shaft couplings | KUP-0606-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 6 mm / 6 mm

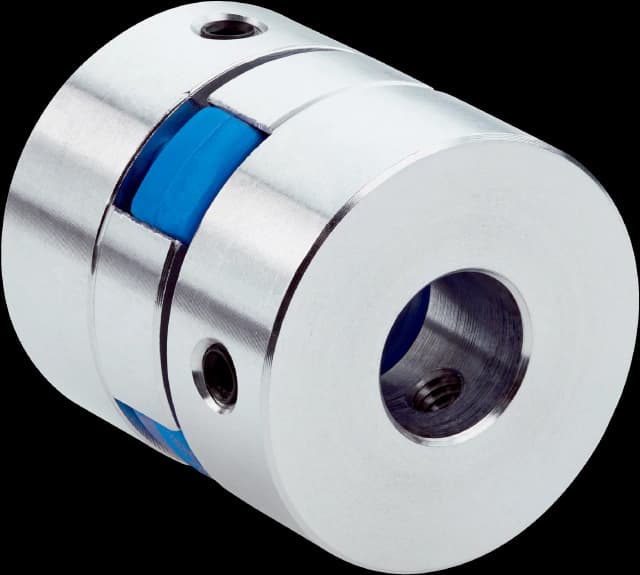

2127057

KUP-0606-J

SICK

Shaft adaptation | Shaft couplings | KUP-0606-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 6 mm / 6 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane

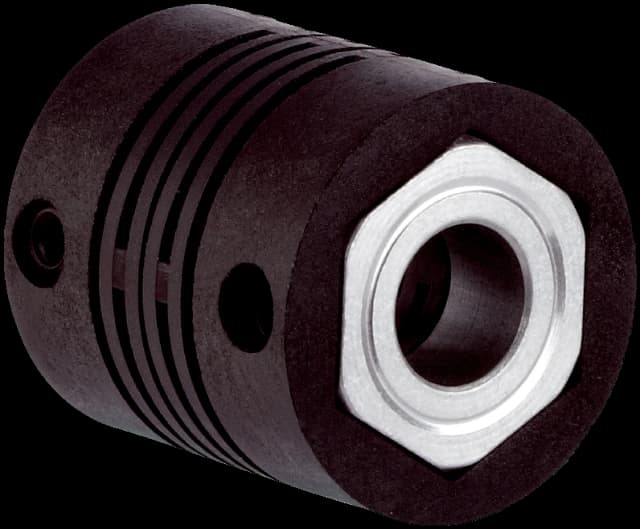

2056406

KUP-0606-S

SICK

Shaft adaptation | Shaft couplings | KUP-0606-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Cross-slotted coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub

5314179

KUP-0608-S

SICK

Shaft adaptation | Shaft couplings | KUP-0608-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 6 mm /8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°, max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub

5312982

KUP-0610-B

SICK

Shaft adaptation | Shaft couplings | KUP-0610-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub

2124999

KUP-0610-BJ

SICK

Shaft adaptation | Shaft couplings | KUP-0610-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key

2075375

KUP-0610-BP

SICK

Shaft adaptation | Shaft couplings | KUP-0610-BP | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub, for use with feather key

2075377

KUP-0610-BS

SICK

Shaft adaptation | Shaft couplings | KUP-0610-BS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 10 mm, bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30 °C ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each

5326697

KUP-0610-D

SICK

Shaft adaptation | Shaft couplings | KUP-0610-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad

5312985

KUP-0610-F

SICK

Shaft adaptation | Shaft couplings | KUP-0610-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 6 mm / 10 mm, Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°; max. speed 12,000 rpm, –10° to +80 °C, max. torque 60 Ncm; material: aluminum flange, glass fiber-reinforced polyamide membrane and hardened steel coupling pin

2127056

KUP-0610-J

SICK

Shaft adaptation | Shaft couplings | KUP-0610-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 6 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane

2056407

KUP-0610-S

SICK

Shaft adaptation | Shaft couplings | KUP-0610-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, –10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub

5314177

KUP-0808-S

SICK

Shaft adaptation | Shaft couplings | KUP-0808-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 8 mm /8 mm, maximum shaft offset radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, torsion spring rigidity 38 Nm/wheel; material: fiber-glass reinforced polyamide, aluminum hub

5326704

KUP-0810-D

SICK

Shaft adaptation | Shaft couplings | KUP-0810-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 8 mm / 10 mm, max. shaft offset: radially +/- 0,25 mm, axially +/-0,4 mm, angle +/- 4 degrees;max. speed 10.000 rpm, –30 to +120 degrees Celsius, torsional spring stiffness of 150 Nm/rad

2128267

KUP-0810-J

SICK

Shaft adaptation | Shaft couplings | KUP-0810-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 8 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane

5314178

KUP-0810-S

SICK

Shaft adaptation | Shaft couplings | KUP-0810-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 8 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, –10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub

5312983

KUP-1010-B

SICK

Shaft adaptation | Shaft couplings | KUP-1010-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm/10 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs

2124992

KUP-1010-BJ

SICK

Shaft adaptation | Shaft couplings | KUP-1010-BJ | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Combination coupling: bellows & claw coupling, with emergency running property in the event of bellows fracture, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.45, angular ± 3°, max. speed 10,000 rpm, –30° to +120 °C, max. torque 200 Ncm; material: stainless steel bellows, stainless steel flange, for use with torque feather key

2075373

KUP-1010-BP

SICK

Shaft adaptation | Shaft couplings | KUP-1010-BP | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub, for use with feather key
