Лазерни дистанционни сензори
Laser Distance Sensors
425 продукта · стр. 8/18
OD1-B100H50U14
Laser distance sensors | OD Mini | OD1-B100H50U14 | Type of analog output: Voltage output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B100H50U25
Laser distance sensors | OD Mini | OD1-B100H50U25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Voltage output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B150F0AQ14
Laser distance sensors | OD Mini | OD1-B150F0AQ14 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 50 mm ... 250 mm | Repeatability: 200 µm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 1.3 mm (150 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B150F0AQ15
Laser distance sensors | OD Mini | OD1-B150F0AQ15 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 50 mm ... 250 mm | Repeatability: 200 µm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 1.3 mm (150 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm

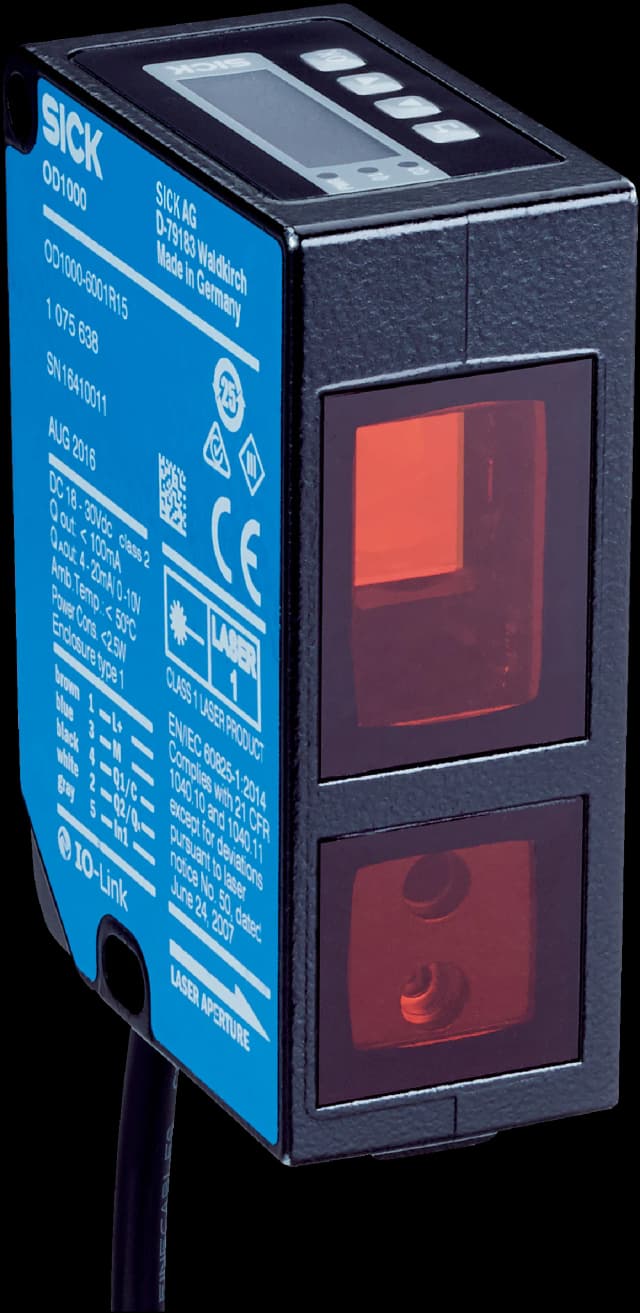

OD1000-6001R15
Laser distance sensors | OD1000 | OD1000-6001R15 | Communication interface: IO-Link | Digital output: 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Measuring range: 200 mm ... 1,000 mm | Repeatability: 0.4 mm | Laser class: 1 | Typ. light spot size (distance): 1.5 mm x 1.5 mm (200 mm ... 1,000 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm
OD2-N120W60A2
Laser distance sensors | OD Value | OD2-N120W60A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N120W60I0
Laser distance sensors | OD Value | OD2-N120W60I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N120W60I2
Laser distance sensors | OD Value | OD2-N120W60I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N120W60U2
Laser distance sensors | OD Value | OD2-N120W60U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N250W150A2
Laser distance sensors | OD Value | OD2-N250W150A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N250W150I0
Laser distance sensors | OD Value | OD2-N250W150I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N250W150I2
Laser distance sensors | OD Value | OD2-N250W150I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N250W150U2
Laser distance sensors | OD Value | OD2-N250W150U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N30W04A2
Laser distance sensors | OD Value | OD2-N30W04A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N30W04I2
Laser distance sensors | OD Value | OD2-N30W04I2 | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N30W04U2
Laser distance sensors | OD Value | OD2-N30W04U2 | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N50W10A2
Laser distance sensors | OD Value | OD2-N50W10A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N50W10I0
Laser distance sensors | OD Value | OD2-N50W10I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N50W10I2
Laser distance sensors | OD Value | OD2-N50W10I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N50W10U2
Laser distance sensors | OD Value | OD2-N50W10U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N85W20A2
Laser distance sensors | OD Value | OD2-N85W20A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N85W20I0
Laser distance sensors | OD Value | OD2-N85W20I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N85W20I2
Laser distance sensors | OD Value | OD2-N85W20I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N85W20U2
Laser distance sensors | OD Value | OD2-N85W20U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
