Лазерни дистанционни сензори
Laser Distance Sensors
425 продукта · стр. 11/18
OD5000-C15W01
Laser distance sensors | OD5000 | OD5000-C15W01 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 14 mm ... 16 mm | Repeatability: 0.01 µm | Laser class: 1 | Typ. light spot size (distance): 30 µm x 1,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C30T05
Laser distance sensors | OD5000 | OD5000-C30T05 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.05 µm | Laser class: 1 | Typ. light spot size (distance): Ø 30 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C30W05
Laser distance sensors | OD5000 | OD5000-C30W05 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.05 µm | Laser class: 1 | Typ. light spot size (distance): 30 µm x 1,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C85T20
Laser distance sensors | OD5000 | OD5000-C85T20 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 0.1 µm | Laser class: 1 | Typ. light spot size (distance): Ø 70 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C85W20
Laser distance sensors | OD5000 | OD5000-C85W20 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 0.1 µm | Laser class: 1 | Typ. light spot size (distance): 70 µm x 2,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD7000-10061031
Laser distance sensors | OD7000 | OD7000-10061031 | Communication interface: Serial, Ethernet | Digital output: 2 | Type of analog output: Current output / voltage output | Measuring range: 6.2 mm ... 6.8 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin, Interface B, Terminal strip, 8-pin, Encoders, D-SUB plug, 15-pin
OD7000-10061032
Laser distance sensors | OD7000 | OD7000-10061032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 6.2 mm ... 6.8 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin
OD7000-10111031
Laser distance sensors | OD7000 | OD7000-10111031 | Communication interface: Serial, Ethernet | Digital output: 2 | Type of analog output: Current output / voltage output | Measuring range: 14.45 mm ... 15.55 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin, Interface B, Terminal strip, 8-pin, Encoders, D-SUB plug, 15-pin
OD7000-10111032
Laser distance sensors | OD7000 | OD7000-10111032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 14.45 mm ... 15.55 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin
OD7000-10401031
Laser distance sensors | OD7000 | OD7000-10401031 | Communication interface: Serial, Ethernet | Digital output: 2 | Type of analog output: Current output / voltage output | Measuring range: 35.5 mm ... 39.5 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin, Interface B, Terminal strip, 8-pin, Encoders, D-SUB plug, 15-pin
OD7000-10401032
Laser distance sensors | OD7000 | OD7000-10401032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 35.5 mm ... 39.5 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin
OD7000-11001031
Laser distance sensors | OD7000 | OD7000-11001031 | Communication interface: Serial, Ethernet | Digital output: 2 | Type of analog output: Current output / voltage output | Measuring range: 64 mm ... 74 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin, Interface B, Terminal strip, 8-pin, Encoders, D-SUB plug, 15-pin
OD7000-11001032
Laser distance sensors | OD7000 | OD7000-11001032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 64 mm ... 74 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin

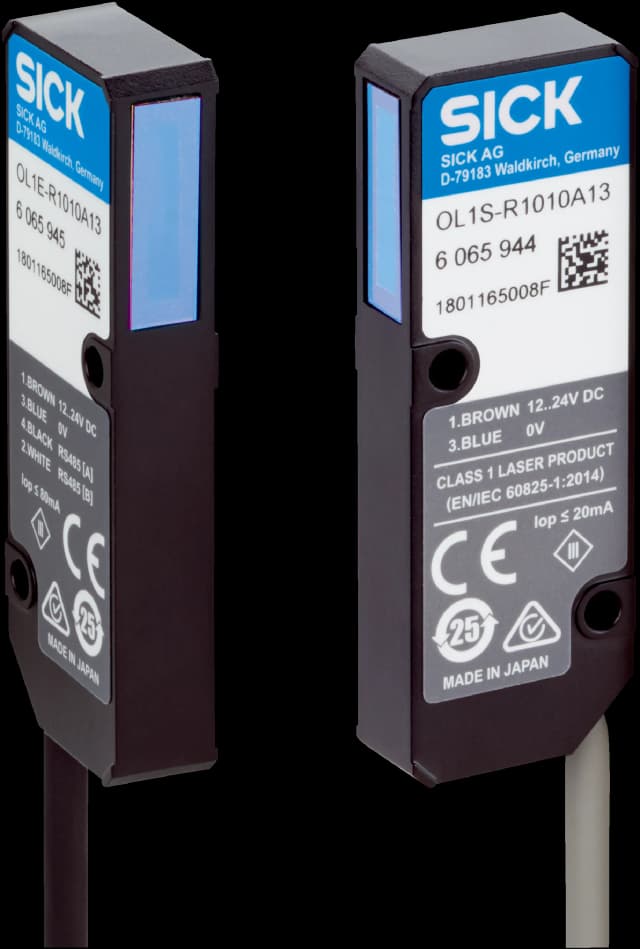

OL1S/OL1E-R1010A13
Laser distance sensors | OL1 | OL1S/OL1E-R1010A13 | Communication interface: Serial | Digital output: 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm | Repeatability: 10 µm | Laser class: 1 | Typ. light spot size (distance): 3 mm x 14 mm | Housing material: Metal | Connection type: Cable with M8 male connector, 4-pin, 300 mm, Y cable for connection to AOD1 evaluation unit
PRO2-N100B25A1
Laser distance sensors | Profiler | PRO2-N100B25A1 | Communication interface: Serial | Digital output: 3 x NPN | Type of analog output: Current output | Measuring range: 75 mm ... 125 mm | Repeatability: 25 µm, 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.3 mm x 32 mm | Housing material: Metal | Connection type: Female connector, HRS, 12-pin (I/O, power supply)
PRO2-P100B25A1
Laser distance sensors | Profiler | PRO2-P100B25A1 | Communication interface: Serial | Digital output: 3 x PNP | Type of analog output: Current output | Measuring range: 75 mm ... 125 mm | Repeatability: 25 µm, 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.3 mm x 32 mm | Housing material: Metal | Connection type: Female connector, HRS, 12-pin (I/O, power supply)
S85-MH-5-Y03-OOI
Photoelectric Sensor Cubic RED Laser TOF distance sensor 10m - 4-20 mA analogue - whith out display - M12 5p
S85-MH-5-Y03-OOV
Photoelectric Sensor Cubic RED Laser TOF distance sensor 10m - 0-10V analogue - whith out display - M12 5p
S85-MH-5-Y13-OOIVY
Photoelectric Sensor Cubic RED Laser TOF distance sensor 20m - analogue/RS485 - whith display - M12 8p
S85-MH-5-Y13-OOY
Photoelectric Sensor Cubic RED Laser TOF distance sensor 20m - RS485 - whith display - M12 8p
TFM1/1P-0V
Time of flight miniaturized sensor PNP output, Sn 180 mm, switching frequency 10Hz progra mmable
TFM1/1X-0V
Time of flight miniaturized sensor push-pull output, Sn 180 mm, switching frequency 10Hz progra mmable
TFM1/8P-0V
Time of flight miniaturized sensor PNP output, Sn 180 mm, switching frequency 80Hz progra mmable
TFM1/8X-0V
Time of flight miniaturized sensor push-pull output, Sn 180 mm, switching frequency 80Hz progra mmable
