Силози и насипни материали
Silo & Bulk Solids Handling
37 продукта · стр. 1/2

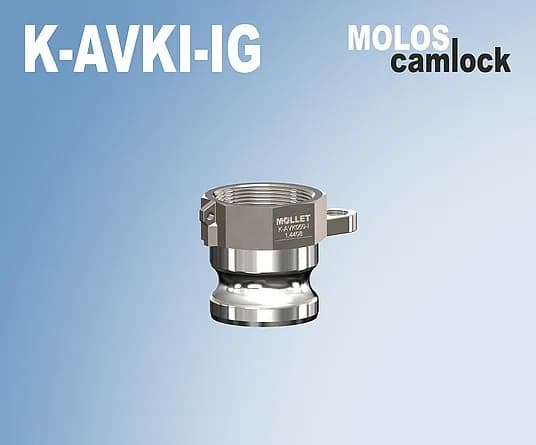

MOLOScamlock K
MOLOScamlock K-AVK/AMK are innovative hose couplings that have been specially developed for the pneumatic conveying of bulk solids. What makes them special is that the hose connection has no sharp edges, allowing the bulk material to be transported without obstruction.
MOLOScode BUS distributor
Housing aluminum, RAL 7001; Supply voltage 7 V ... 9 V DC; 1x 4-wire input (supply and RS485); 1x 2-wire outlet (RS485); Connection of up to 8 KC-LG16M reading devices; Ambient temperature -20 °C ... +60 °C; Protection class IP66 according to DIN EN 60529

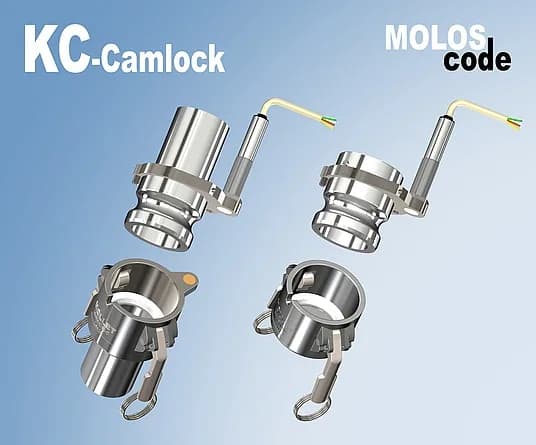

MOLOScode Camlock couplings
MOLOScode with RFID technology enables electronic hose identification on the Camlock couplings. This means that a correct hose connection can always be guaranteed via the process control system.

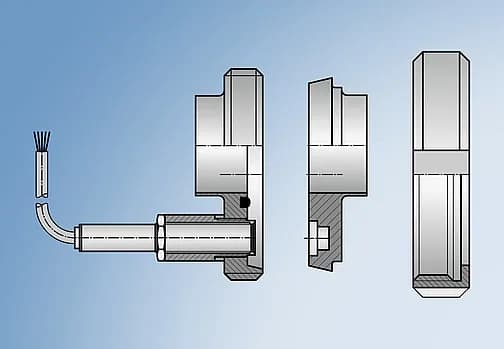

MOLOScode Dairy pipe fittings
Threaded socket with built-in reading device; Conical nozzle with built-in transponder; Material stainless steel 1.4571 / 316Ti

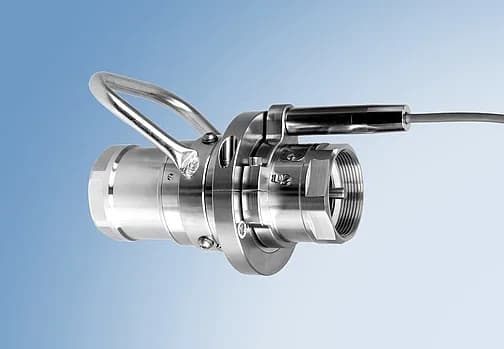

MOLOScode Dry couplings
Couplings from various manufacturers can be equipped with MOLOScode RFID components; Dry couplings from ARTA - ASK, MannTek, RSSeliger, Stäubli, TODO-Matic or Walther

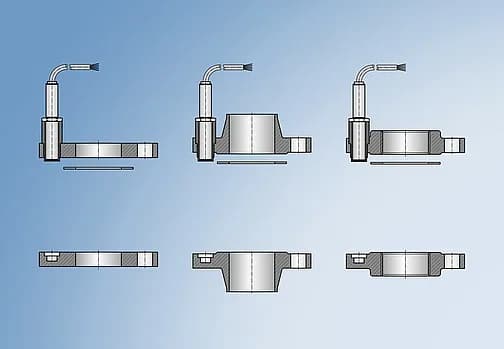

MOLOScode Flange
Flange with built-in reading device; Counter flange with built-in transponder; Material e.g. stainless steel 1.4571 / 316Ti

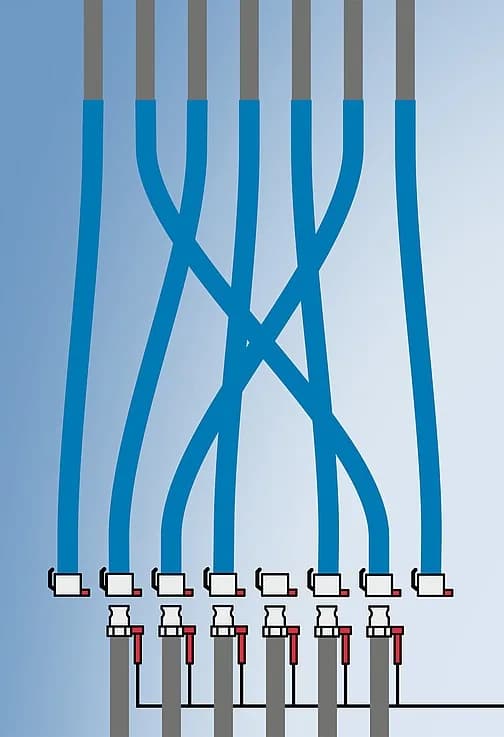

MOLOScode OneSide hose coupling station - hanging
All pipes connected with hoses; Hoses fix connected to the pipe ends from above on one side; Opposite end of the hose equipped with couplings; Pipe ends with corresponding counterparts of the coupling; Only loose ends of the hoses equipped with transponder; Reading devices installed at the pipe end

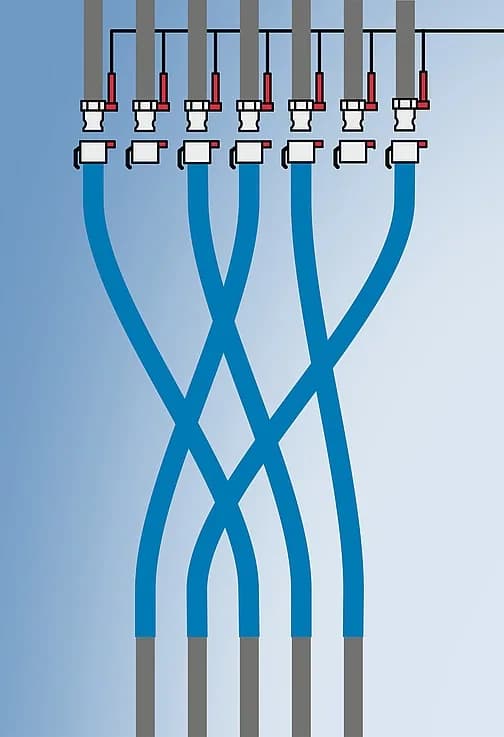

MOLOScode OneSide hose coupling station - rising
All pipes connected with hoses; Hoses fix connected to the pipe ends from below on one side; Opposite end of the hose equipped with couplings; Pipe ends with corresponding counterparts of the coupling; Only loose ends of the hoses equipped with transponder; Reading devices installed at the pipe end
MOLOScode Power supplies
Housing aluminum, RAL 7001; Input voltage 12 V ... 24 V DC; Output voltage 4 x 8 V DC; Ambient temperature -20 °C ... +60 °C; Protection class IP66 according to DIN EN 60529

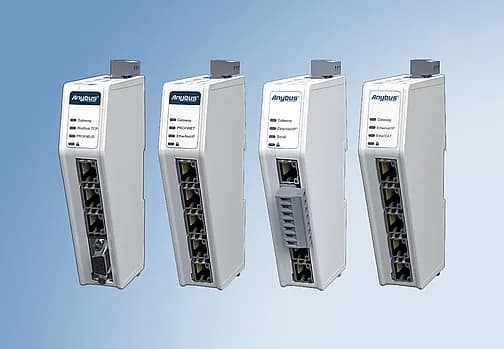

MOLOScode Protocol converter
Converts RS485 to the following protocols: PROFIBUS-DP PROFINET-PN EtherCAT EtherNet/IP Modbus-RTU; PROFIBUS-DP; PROFINET-PN; EtherCAT; EtherNet/IP; Modbus-RTU; Supply voltage 12-30 V DC; Ambient temperature -25 °C ... +70 °C; DIN-rail mounting (EN 50022 standard); Weight 150 g; WxHxD 27x144x98 mm

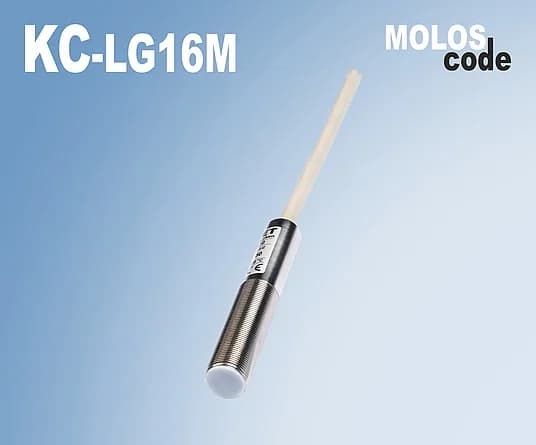

MOLOScode RFID components
MOLOScode RFID components turn Storz, Camlock or dry couplings into intelligent coupling systems. These enable every hose connection to be monitored by the process control system.

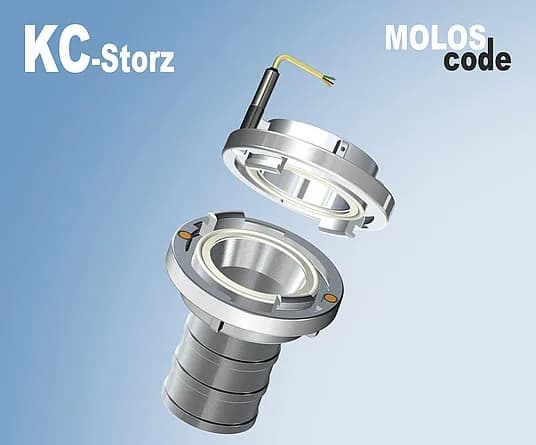

MOLOScode Storz couplings
MOLOScode with RFID technology implements electronic hose recognition on the Storz coupling. This eliminates the risk of an incorrect hose connection with the help of the process control system.

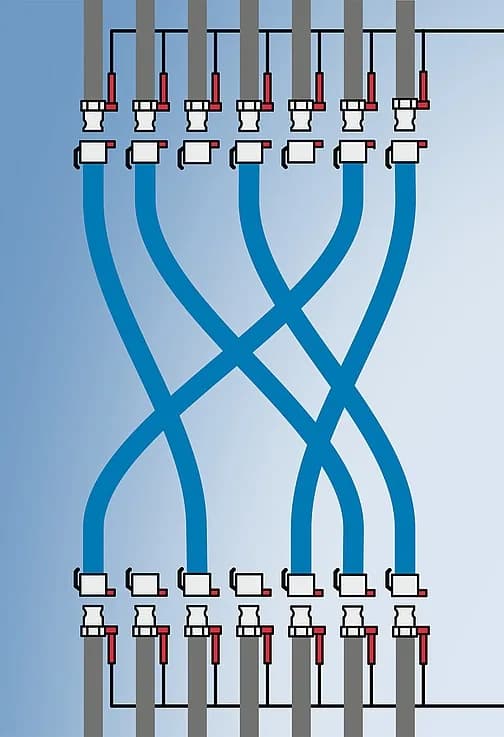

MOLOScode TwoSide hose coupling station
All pipe ends with coupled hose; Hoses equipped with couplings on both sides; Pipe ends with corresponding counterparts of the coupling; Hoses with identical code numbers on both sides; Code number is the same like hose number; Hose inspection can be accomplished without installation work

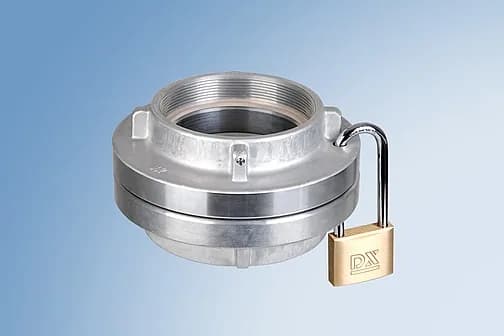

MOLOSlock KB-FSZ
Padlock

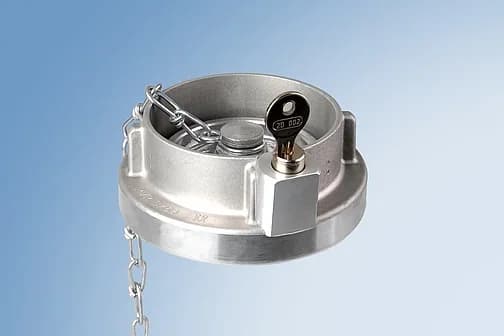

MOLOSlock KS-SZ
Push cylinder lock

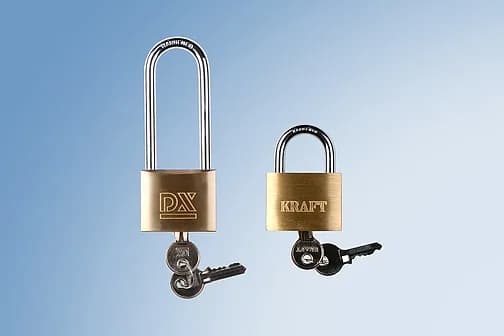

MOLOSlock KS-VS080
Padlock

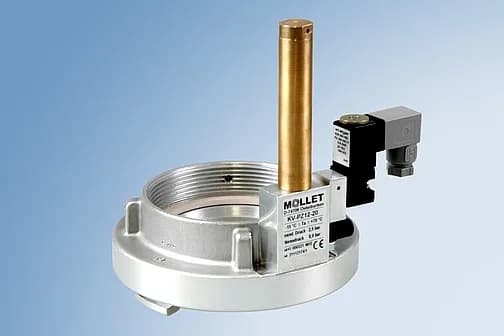

MOLOSlock KV-FSZ
Pneumatic locking

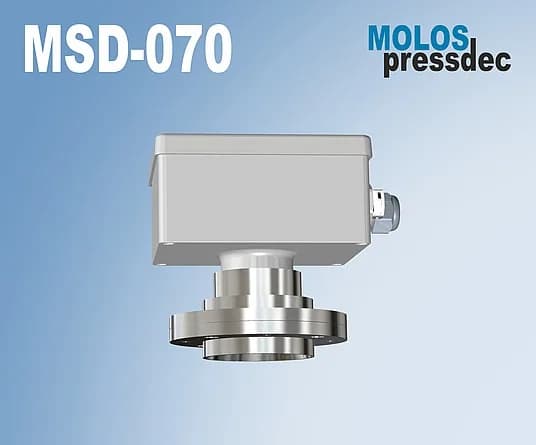

MOLOSpressdec MSD
MOLOSpressdec MSD with lightweight plastic housing is a good way to protect your systems against overpressure during pneumatic filling. If the pressure reaches the preset switching point, the detector triggers a signal or automatically interrupts filling.
MOLOSpressdec MSD-4
MOLOSpressdec MSD-420 in a durable plastic housing measures the pressure in silos and containers. During pneumatic filling, the device records the rising pressure and converts it into a standard industrial signal of 4-20 mA. This allows you to control the pressure optimally at all times. Also available with bus interface as MSD-485.

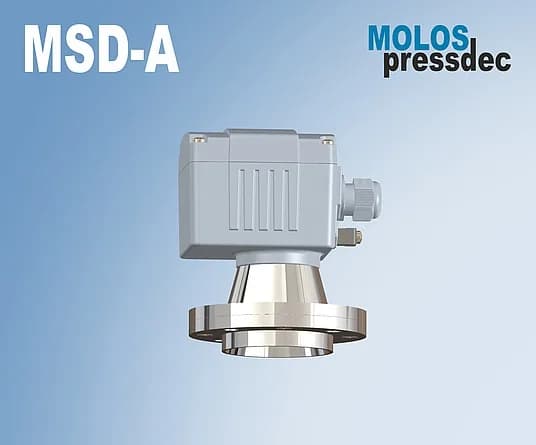

MOLOSpressdec MSD-A
MOLOSpressdec MSD-A in a stable metal housing monitors the pressure in silos and containers during pneumatic filling. When the specified pressure switching point is reached, the detector sends a warning signal or stops filling automatically. This device offers a reliable solution to protect your systems from overpressure.

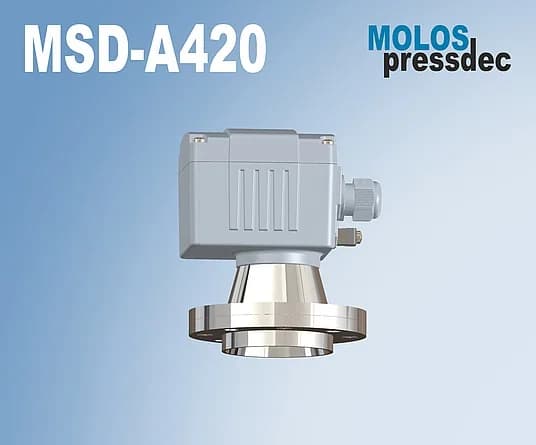

MOLOSpressdec MSD-A4
MOLOSpressdec MSD-A420 with robust metal housing measures the pressure in silos and containers. It records the pressure increase during pneumatic filling with maximum precision and converts the pressure into a standard industrial signal of 4-20 mA. This allows you to react at any time if necessary. The MSD-A485 is also available with a bus interface.

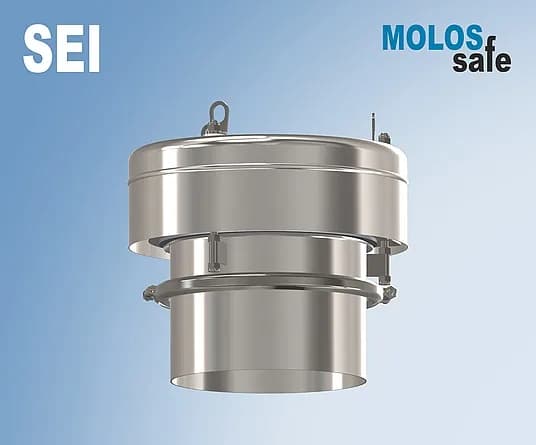

MOLOSsafe SEI
The MOLOSsafe SEI pressure relief valve is mounted on the roof of silos or containers. It provides comprehensive protection for your silo and can also be used in areas at risk of dust and gas explosions. With this valve, you comply with the requirements of the German Social Accident Insurance Institution for the Raw Materials and Chemical Industry (BG RCI), which stipulates that silos filled pneumatically must be equipped with safety devices to protect against overpressure and underpressure. Fil

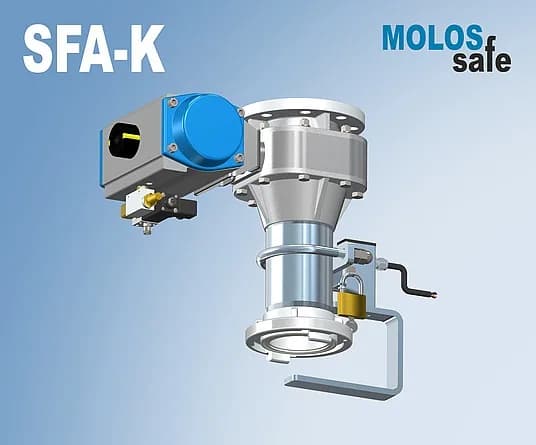

MOLOSsafe SFA-K
The MOLOSsafe SFA-K silo filling device is used to shut off and open the filling line during silo filling with a silo truck and thus complies with the requirements of the German Social Accident Insurance Institution for the Raw Materials and Chemical Industry (BG RCI), which stipulates that self-acting shut-off valves must be installed at the inlet openings of silos to close the filling line in the event of overfilling or excessive inlet pressure. This filling device consists of a robust ball va

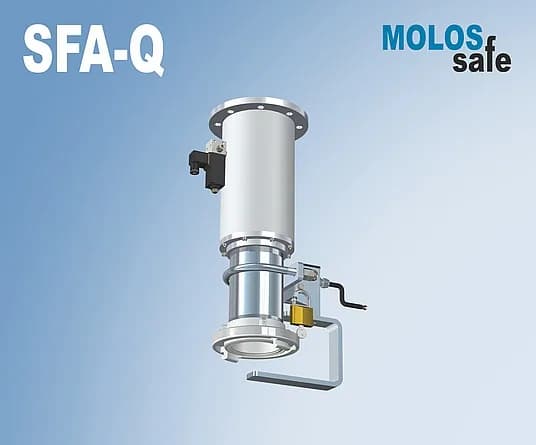

MOLOSsafe SFA-Q
The MOLOSsafe SFA-Q silo filling device is used to shut off and open the filling line during silo filling with a silo truck, thereby complying with the requirements of the German Social Accident Insurance Institution for the Raw Materials and Chemical Industry (BG RCI), which stipulates that self-acting shut-off valves must be installed at the inlet openings of silos to close the filling line in the event of overfilling or excessive inlet pressure. This filling fitting consists of a robust pinch
