Търсене в каталога
41538 резултата за "SICK" · стр. 90/2077
STR1-SAMF03P5
Safety switches | STR1 | STR1-SAMF03P5 | Actuator design: Mini | Coding: Permanently coded | Assured switch on distance Sao: 14 mm | Connection type Detail: Cable, 5-wire | Length of cable: 3 m | Safe series connection: None, only individual wiring (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
TLOC100-100
Localization systems | Triton Floor-LOC | TLOC100-100 | Description: Triton Floor-LOC is an image-based localization system for mobile robots which uses microstructures of a floor to determine the position of the vehicle. | Application: Localization of mobile robots in logistics and production | Speed: Up to 2.5 m/s with Clock Syncing | Reading distance: 40 mm ... 80 mm, ± 5 mm | Output data: Absolute position (x, y, direction angle), Relative position (visual odometry)

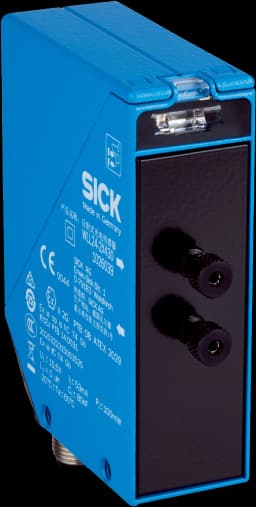

WLL24-2X430
Fiber-optic sensors | WLL24 | WLL24-2X430 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: NAMUR | Connection type: Male connector M12, 4-pin | Type of light: Visible red light | Adjustment: Potentiometer | Display: LED
WL24-2B333
Photoelectric sensors | W24 | WL24-2B333 | Sensing range max.: 0 m ... 22 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: NPN, PNP | Switching mode: Light/dark switching | Connection type: Cubic connector, 3-pin | Adjustment: Potentiometer
DOS-0804-W
Connectors and cables | Field-wireable connectors | DOS-0804-W | Description: Unshielded | Connection type head A: Female connector, M8, 4-pin, angled, A-coded | Connection systems: Solder connection | Permitted cross-section: ≤ 0.25 mm²

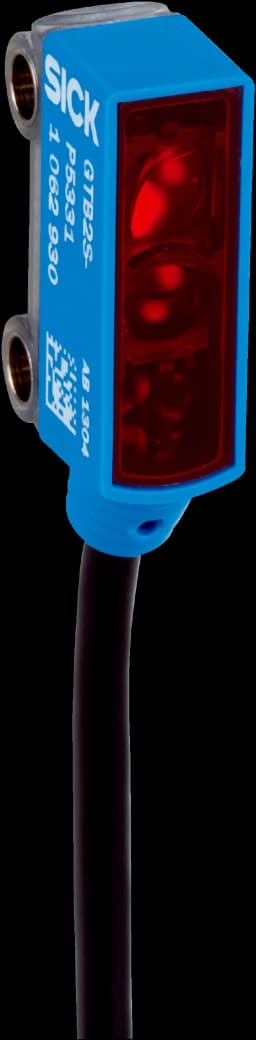

GTB2S-N5331
Photoelectric sensors | G2 | GTB2S-N5331 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
WSE2S-2P3230
Photoelectric sensors | W2 | WSE2S-2P3230 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
DFS60E-BEAN01024
Incremental encoders | DFS60 | DFS60E-BEAN01024 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024
OD2000-1301T15
Laser distance sensors | OD2000 | OD2000-1301T15 | Communication interface: IO-Link | Digital output: 2 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 60 mm ... 200 mm | Repeatability: 4 µm | Laser class: 1 | Typ. light spot size (distance): Ø 300 µm (130 mm) | Housing material: Plastic | Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm
WSE26P-24162100A00
Photoelectric sensors | W26 | WSE26P-24162100A00 | Sensing range min. / max.: 0 m / 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: IO-Link | Communication interface: IO-Link V1.1 | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart
IQ12-02BPSKU3SS13
Inductive proximity sensors | IQB | IQ12-02BPSKU3SS13 | Sensing range Sn: 2 mm | Installation type: Flush | Cuboid shape (W x H x D): 12 mm x 40 mm x 26 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 3 m
LFPCT-0600G1
Device protection and care | Protective housing | LFPCT-0600G1 | Description: Coaxial tube for LFP with process connection G 3/4, process connection of coaxial tube G 3/4, material 1.4571/316TI, for probe length 600 mm
PTAC-1XXXXTJAGMZB
Pressure sensors | PTA | PTAC-1XXXXTJAGMZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ B (EN 837) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Supply voltage
IM30-10BUS-ZU0
Inductive proximity sensors | IMO | IM30-10BUS-ZU0 | Housing: Standard design | Sensing range Sn: 10 mm | Installation type: Flush | Electrical wiring: AC/DC 2-wire | Output function: NO | Connection type: Cable, 2-wire, 2 m
V3T11P-MR12A8
Machine vision | TriSpector1000 | V3T11P-MR12A8 | Product version: TriSpector1008 Programmable | Working distance: 56 mm ... 116 mm | Example field of view: 65 mm x 15 mm | Width at maximum operating distance: 75 mm | Window material: PMMA | Scan/frame rate: 5,000 3D profiles/s | Data points/profile: 1,536
GSE2F-P5121
Photoelectric sensors | G2 | GSE2F-P5121 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -

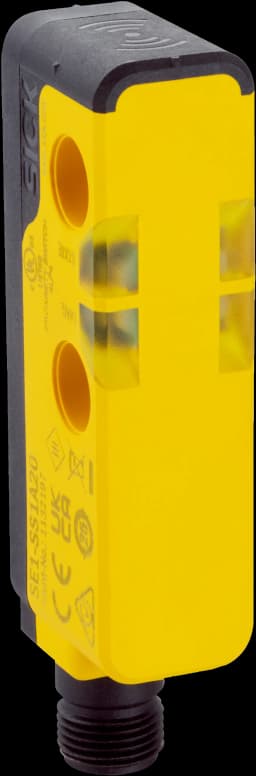

SE1-SS1A20
Safety switches | safeIDS | SE1-SS1A20 | IO-Link Safety: IO-Link Safety V1.1.4 | Active sensor surface: Front | Assured switch on distance Sao: 7 mm | Connection type Detail: Plug, M12, 4-pin, A-coded | Note: The actuator has to be ordered separately. See "Accessories" for further details., Because no parameter configuration is required, there is no “dedicated tool” for this product.
YM2A15-050UB5XLEAX
Connectors and cables | Sensor-actuator cables | YM2A15-050UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
Mounting kit 3
Mounting systems | Brackets | Mounting kit 3 | Description: Mounting bracket for rear mounting on wall, floor, or machine, adjustable longitudinal and lateral axes, only in conjunction with mounting kit 1 (2015623) and 2 (2015624) | Material: Aluminum | Details: Aluminum | Packing unit: 1 piece
V2D652P-2MEWHA6
Machine vision | InspectorP64x/InspectorP65x | V2D652P-2MEWHA6 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: White, Blue | Sensor resolution: 2,048 px x 1,088 px (2.1 MP) | Sensor: CMOS monochrome | Optical focus: Dynamic focus control
