Търсене в каталога
41538 резултата за "SICK" · стр. 8/2077
WTS12F-24161120A00ZDZZZZZZZZZ1
Photoelectric sensors | W12 | WTS12F-24161120A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 10 mm / 750 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, TwinEye technology | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiomet

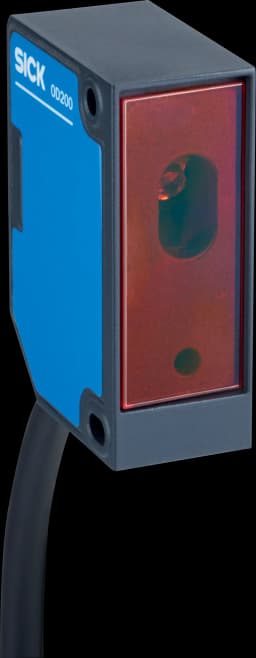

OD200-0501W15
Laser distance sensors | OD200 | OD200-0501W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 35 mm ... 65 mm | Repeatability: 5 µm | Laser class: 1 | Typ. light spot size (distance): 0.3 mm x 0.7 mm (50 mm) | Housing material: Metal | Connection type: Cable with plug M12, 5-pin, 345 mm
MZCS-1Z8PS-KR0
Cylinder sensors | MZCS | MZCS-1Z8PS-KR0 | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.5 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
OD200-0301W15
Laser distance sensors | OD200 | OD200-0301W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 25 mm ... 35 mm | Repeatability: 2 µm | Laser class: 1 | Typ. light spot size (distance): 0.2 mm x 0.5 mm (30 mm) | Housing material: Metal | Connection type: Cable with plug M12, 5-pin, 345 mm
ENM35-0KF0A024A
Motor feedback systems | ENS/ENM35 | ENM35-0KF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +118 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
SRA3-AAC100ZPUI
Safety radar sensors | safeRS3 | SRA3-AAC100ZPUI | Variant: safeRS3 Control PROFINET PROFIsafe | Manufacturer designation: C201A (Model), PSK02 (Type) | System part: control | Integration in the control system: Local inputs and outputs (I/O), PROFINET PROFIsafe | OSSD pairs: ≤ 2 | Safety outputs via network: 4 | Response time: ≤ 100 ms | Safety level: PL d, SIL 2
WSE12F-24162100A00ZDZZZZZZZZZ1
Photoelectric sensors | W12 | WSE12F-24162100A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 0 m / 30 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task n
V2D611P-MLSCI5
Machine vision | InspectorP61x | V2D611P-MLSCI5 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Amber, Blue | Lens: 12 mm | Working distance: 50 mm ... 300 mm | Sensor resolution: 1,280 px x 960 px (1.2 MP) | Sensor: CMOS monochrome | Optical focus: Teach auto focus
WTS12A-24161120A00ZDZZZZZZZZZ1
Photoelectric sensors | W12 | WTS12A-24161120A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 18 mm / 600 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, TwinEye technology | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiomet
WTB12F-24161120A00ZDZZZZZZZZZ1
Photoelectric sensors | W12 | WTB12F-24161120A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 10 mm / 1,100 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiometer, Teach-Turn adj
SIM1200-2A1A130 LiDAR-LOC
Edge computing devices | SIM1200 | SIM1200-2A1A130 LiDAR-LOC | Description: SIM1200 incl. LiDAR-LOC software for contour-and code-based position determination of mobile robots. | Enclosure rating: IP20 | Connections: Terminal block 1-4, spring terminal, Ethernet, RJ45 | Supply voltage: 24 V DC | Output data LiDAR-LOC: Position (x, y, direction angle) | Localization accuracy: Typ. ± 10 mm, position, Typ. ± 0.25°, orientation
WTM4FF-1H161120A00
Photoelectric sensors | W4 | WTM4FF-1H161120A00 | Sensing range min. / max.: 4 mm / 320 mm, 0 mm / 220 mm, 4 mm / 500 mm, 0 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material:
MZCS-1Z8PS-KQ0
Cylinder sensors | MZCS | MZCS-1Z8PS-KQ0 | Connection type: Cable with plug, M12, 3-pin, 0.5 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
V2D611P-MMIBI4
Machine vision | InspectorP61x | V2D611P-MMIBI4 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Infrared | Lens: 6 mm | Working distance: 50 mm ... 300 mm | Sensor resolution: 1,280 px x 960 px (1.2 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus
V2D611P-MMSBI4
Machine vision | InspectorP61x | V2D611P-MMSBI4 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Amber, Blue | Lens: 6 mm | Working distance: 50 mm ... 300 mm | Sensor resolution: 1,280 px x 960 px (1.2 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus

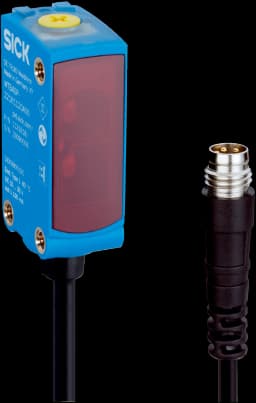

WTM4SF-32161120A00
Photoelectric sensors | W4 | WTM4SF-32161120A00 | Sensing range min. / max.: 4 mm / 400 mm, 0 mm / 260 mm, 4 mm / 600 mm, 0 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 114 mm | Light source: PinPoint Pro LED | Type of light: Visible red l
MF-Y0608P141ZZZ
Fork sensors | MF | MF-Y0608P141ZZZ | Adjustment: None | Light source: LED | Type of light: Infrared | Fork width/depth: 6 mm, 8 mm | Note: 1 piece single packaging | Switching output: PNP | Switching mode: Light/dark switching | Length of cable: 2 m | Connection type Detail: Cable open end, 4-wire | Mounting system type: Y | Switching frequency: > 4 kHz | Response time: 100 µs | Enclosure rating: IP67

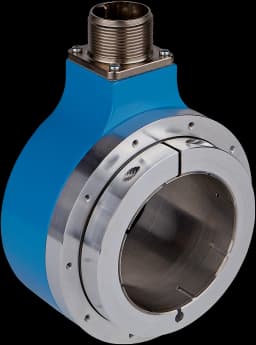

DGS90B-TWL401024
Incremental encoders | DGS80/90 | DGS90B-TWL401024 | Mechanical design: Through hollow shaft 65 mm (Front clamp) | Communication interface: 5 V ... 30 V, HTL, Push pull, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
ENS35-0KF0A024A
Motor feedback systems | ENS/ENM35 | ENS35-0KF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +118 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.

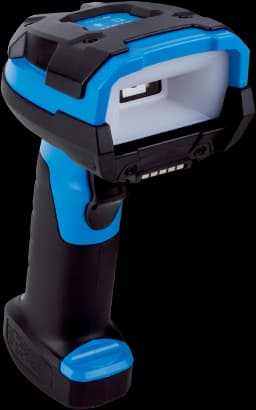

ZS3678-DP2F263VZWW
Mobile handheld scanners | Zx36 | ZS3678-DP2F263VZWW | Readable code structures: 1D codes, 2D codes, Stacked, direct-marked codes | Reading distance: 0 mm ... 86 mm | Application: Industrial application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB, Bluetooth | Ambient operating temperature: –20 °C ... +50 °C | Countr
