41538 резултата за "SICK" · стр. 70/2077
MPA-1007THTP0
Cylinder sensors | MPA | MPA-1007THTP0 | Measuring range: 1,007 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP65, IO-Link, IP67, IP68 | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
WTB26I-24161120A00
Photoelectric sensors | W26 | WTB26I-24161120A00 | Sensing range min. / max.: 30 mm / 2,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Infrared light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjustment | Communication

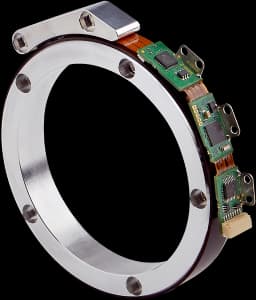

STS065-HN065-AK22
Motor feedback systems | STS | STS065-HN065-AK22 | Communication interface: HIPERFACE® | Sine/cosine periods per revolution: 128 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, 8-pin | Inner diameter of hollow shaft: 65 mm | Operating temperature range: –30 °C ... +105 °C, –30 °C ... +100 °C | Items supplied: Mounting screws not included with delivery.
L41E-21MA1A
Safety light-beam sensors | L41 | L41E-21MA1A | System part: Receiver | Safety level: PL e, SIL 3, Type 4 | Scanning range: 16 m | Diameter: M18 | Optical axis: Axial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
Connection cable
Connectors and cables | Other connectors and cables | Connection cable | Description: Shielded | Connection type head A: Male connector, D-Sub-HD, 15-pin, straight | Connection type head B: Male connector, D-Sub, 9-pin, straight | Cable: 2 m | Note: To connect two motor feedback splitter boxes
BPS5400-1242
Robot guidance systems | Body Position System | BPS5400-1242 | Dimensions, system (L x W x H): 720 mm x 460 mm x 100 mm (Single camera module) | Sensor resolution: 2,048 px 2,048 px 4.2 MP | Working distance: 1,200 mm | Ambient temperature, operation: 0 °C ... +45 °C, permissible relative humidity: 0% ... 90% (non-condensing) | Ambient temperature, storage: –10 °C ... +70 °C | Optical indicators: 5 status displays, 5 LED bar graphs, 1 green/red feedback spot
UP56-212112
Level sensors | UP56 | UP56-212112 | Communication interface: - | Process connection: G 1 A | Remote amplifier: No | Output signal: 2 x PNP | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 85 mm ... 350 mm | Measuring range immersion tube: 85 mm ... 1,500 mm | Enclosure rating: IP67 | Display: ye
Mounting kit VdS 1
Mounting systems | Brackets | Mounting kit VdS 1 | Description: Mounting set VdS 1, RAL7032 | Color: Gray (RAL 7032) | Usable for: Retrofitting a standard laser measurement sensor with a mounting bracket VdS 1 will not automatically result in a VdS compliant laser measurement system
WTB4SP-22161120A00
Photoelectric sensors | W4 | WTB4SP-22161120A00 | Sensing range min. / max.: 4 mm / 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link | Smart S
WSE26P-3B112100ZZZ
Photoelectric sensors | W26 | WSE26P-3B112100ZZZ | Sensing range min. / max.: 0 m / 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with Q7 male connector, 7-pin, DC-coded, 298 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular

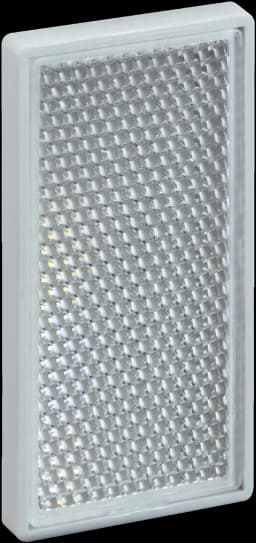

PL 23FT
Reflectors and optics | Reflectors | PL 23FT | Description: Reflector, 20 mm x 40 mm | Dimensions: 20 mm 40 mm | Ambient operating temperature: ≥ –30 °C
I2D305M-2RCA11
Machine vision | picoCam2 | I2D305M-2RCA11 | Illumination: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Sensor resolution: 2,448 px x 2,048 px (5.01 MP) | Sensor: CMOS monochrome | Sensor used: Sony IMX264
DBS50E-SKEM02048
Incremental encoders | DBS36/50 | DBS50E-SKEM02048 | Mechanical design: Solid shaft face mount flange 8 mm x 13 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 2,048
IME12-08NPSZC0K
Inductive proximity sensors | IME | IME12-08NPSZC0K | Housing: Short-body | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin
MZC1-2V2PS-KR0
Cylinder sensors | MZC1 | MZC1-2V2PS-KR0 | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.3 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
IMG18-12NPSZC0S
Inductive proximity sensors | IMG | IMG18-12NPSZC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Temperature resistance

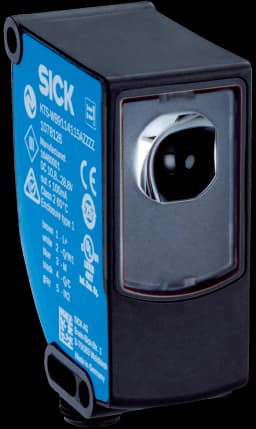

KTS-WB92141152ZZZZ
Contrast sensors | KTS | KTS-WB92141152ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Horizontal | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
SAS4-S060P3PS2W0A
Automation light grids | SLG | SAS4-S060P3PS2W0A | Optical light exit: Slim | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 600 mm | Response time: 19 ms
L-muting arm kit, mounting on device column, right
Mounting systems | Muting arms | L-muting arm kit, mounting on device column, right | Description: Muting arm kit for 2-sensor parallel muting, pre-assembled and pre-adjusted muting sensors and reflectors, for right-side mounting on a PP4 or PC4 device column | Items supplied: 2 × GL6G-P0211S98 muting sensor incl. cable with M12 male connector, 4-pin, angled, 2 m (2142441), 2 × P250 reflector (5304812), 4 × L-muting bracket (2113145), 2 × muting arm, long (2111923), 2 × PP4 / PC4 muting arm brac

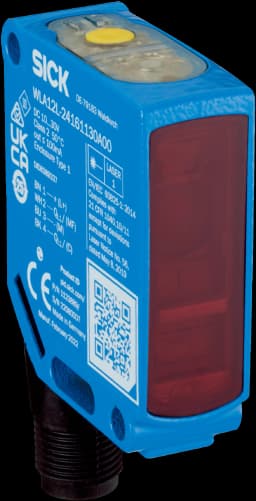

WLA12L-24162130A00
Photoelectric sensors | W12 | WLA12L-24162130A00 | Sensing range min. / max.: 0 m / 20 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Zinc diecast | Adjustment: Teach-
