Търсене в каталога
41538 резултата за "SICK" · стр. 60/2077
OD2-P85W20U2
Laser distance sensors | OD Value | OD2-P85W20U2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
AR60 adapter, M4000
Commissioning aids and test equipment | Alignment aids | AR60 adapter, M4000 | Description: Adapter AR60 for M4000 and M4000 Curtain
UC40-11211B
Ultrasonic distance sensors | UC40 | UC40-11211B | Communication interface: IO-Link | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
TMM22B-PKK090
Inertial sensors | TMS/TMM22 | TMM22B-PKK090 | Number of axis: 2 | Measuring range: ± 90° | Resolution: ≤ 0.01° | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, 1.5 m
STE-1204-GE01
Connectors and cables | Field-wireable connectors | STE-1204-GE01 | Description: Ethernet, shielded | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Signal type: Ethernet | Cable: CAT5, CAT5e | Connection systems: IDC quick connection | Permitted cross-section: 0.14 mm² ... 0.34 mm²

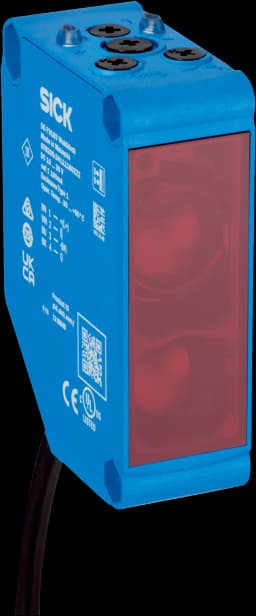

GTE20G-1IRC117GZZZ
Photoelectric sensors | G20 | GTE20G-1IRC117GZZZ | Sensing range min. / max.: 0.02 m / 2 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: Relay, SPDT, electrically isolated | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 2 m | Light source: LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
RE11-SA03
Safety switches | RE1 | RE11-SA03 | Systemteil: Sensor with actuator | N/O contacts: 1 | N/C contacts: 1 | Signaling contacts: 0 | Connection type Detail: Cable | Length of cable: 3 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
Heat protection filter for Dx50-2
Device protection and care | Protection filter | Heat protection filter for Dx50-2 | Description: Thermal shield for Dx50/Dx50-2 with NIR filter, for use with 2x cold plate BEF-KP-Dx50/DT20
YF8U13-100UA1M8U13
Connectors and cables | Sensor-actuator cables | YF8U13-100UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 10 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
PBT-AB016SGTSSNAMA0Z
Pressure sensors | PBT | PBT-AB016SGTSSNAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t

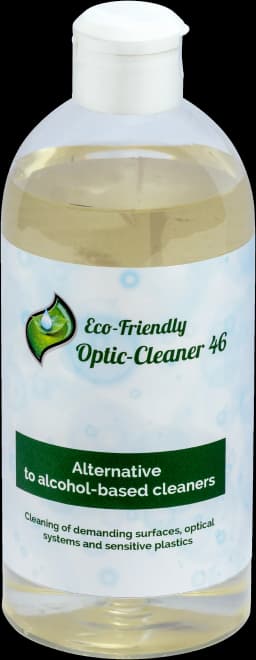

Eco-Friendly Optic-Cleaner 46
Device protection and care | Cleaning agents | Eco-Friendly Optic-Cleaner 46 | Description: Eco-Friendly Optic-Cleaner 46 in 500 ml bottle for cleaning the optical surfaces of sensors. Legal notice: Labeling, product data sheet and safety data sheet in the following languages only: English, French, German, Italian, Spanish, Portuguese, Dutch
KUP-0606-D
Shaft adaptation | Shaft couplings | KUP-0606-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double-loop coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°; max. speed 3,000 rpm, –30 °C to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
EKM36-0KF0B020A
Motor feedback systems | EKS/EKM36 | EKM36-0KF0B020A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 20 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –20 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
Connection cable
Connectors and cables | Other connectors and cables | Connection cable | Description: RS-232, unshielded | Connection type head A: Female connector, D-Sub, 9-pin, straight | Connection type head B: Male connector, RJ50 | Signal type: RS-232 | Cable: 2 m, straightened cable | Note: Voltage via pin 9 or external power supply required
WTM10L-241612D0A00ZVZZZZZZZZZ1
Photoelectric sensors | W10 | WTM10L-241612D0A00ZVZZZZZZZZZ1 | Sensing range min. / max.: 25 mm / 220 mm, 25 mm / 300 mm, 25 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: St
WT24-2B420
Photoelectric sensors | W24 | WT24-2B420 | Sensing range max.: 100 mm ... 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN, PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Adjustment: Potentiometer

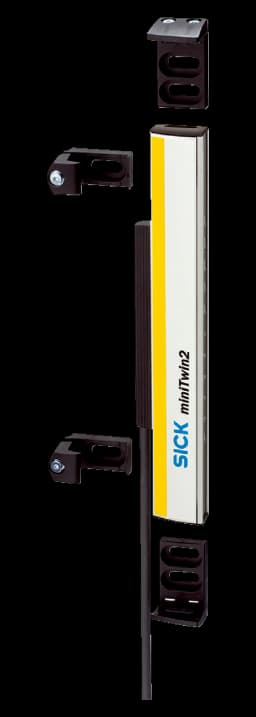

C2MT-06034BBC03FE0
Safety light curtains | miniTwin | C2MT-06034BBC03FE0 | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 34 mm | Scanning range: 8 m | Protective field height: 600 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso
IMA30-10BE1ZC0S
Inductive proximity sensors | IMA | IMA30-10BE1ZC0S | Sensing range Sn: 0 mm ... 10 mm | Installation type: Flush | Output function: Analog | Connection type: Male connector M12, 4-pin | Special features: Analog output
GRTE18-N2462
Photoelectric sensors | GR18 | GRTE18-N2462 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
BEF-WN-M18
Mounting systems | Brackets | BEF-WN-M18 | Description: Mounting bracket for M18 sensors | Material: Steel | Details: Steel, zinc coated | Items supplied: Without mounting hardware | Suitable for: GR18, V180-2, V18, W15, Z1, Z2
