Търсене в каталога
41538 резултата за "SICK" · стр. 55/2077
GTE6SP-22A1146EZZZ
Photoelectric sensors | G6 | GTE6SP-22A1146EZZZ | Sensing range min. / max.: 30 mm / 900 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
WTB4FT-22161120A00
Photoelectric sensors | W4 | WTB4FT-22161120A00 | Sensing range min. / max.: 7 mm / 120 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, DoubleLine | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, IO-Link, Teach-Turn adjustme
CM18-08BPP-EC1
Capacitive proximity sensors | CM | CM18-08BPP-EC1 | Sensing range Sn: 0 mm ... 8 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin | Switching output: PNP | Output function: Complementary
YG2A25-100VB6XLEAX
Connectors and cables | Sensor-actuator cables | YG2A25-100VB6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 5-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
MPA-467THTP0
Cylinder sensors | MPA | MPA-467THTP0 | Measuring range: 467 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP65, IO-Link, IP67, IP68 | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
UHF Transponder, Square, On-Metal, global
RFID transponders | UHF transponders | UHF Transponder, Square, On-Metal, global | Carrier frequency: 865 MHz ... 928 MHz | Memory capacity (EPC / user memory): 496/128 Bit (EPC / User Memory) | Dimensions (L x W x H): 27 mm x 27 mm x 6 mm

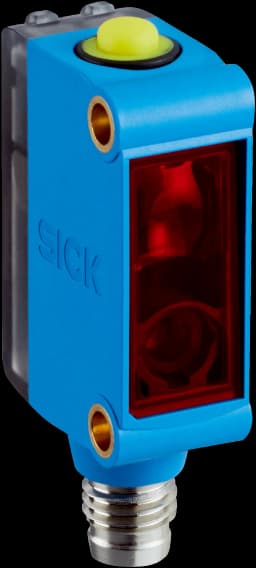

KTM-LP22181P
Contrast sensors | KTM | KTM-LP22181P | Light source: Laser | Communication interface: - | Sensing distance: 50 mm | Switching output: PNP | Light spot size: Ø 1.7 mm (50 mm) | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Male connector M8, 4-pin | Adjustment: Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic | Housing material: Plastic
IME08-04NPSZT0K
Inductive proximity sensors | IME | IME08-04NPSZT0K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin

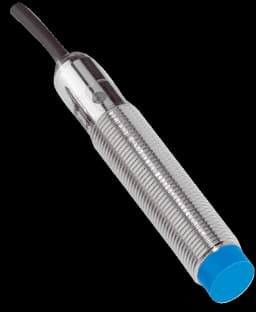

IME12-04NPSZW2S
Inductive proximity sensors | IME | IME12-04NPSZW2S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
DFS60B-S1PC10000
Incremental encoders | DFS60 | DFS60B-S1PC10000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 10,000
WTB4FP-22161120A00
Photoelectric sensors | W4 | WTB4FP-22161120A00 | Sensing range min. / max.: 4 mm / 220 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, IO-Link, Teach-Turn adjustment | Communi
RE11-SAC
Safety switches | RE1 | RE11-SAC | Systemteil: Sensor with actuator | N/O contacts: 1 | N/C contacts: 1 | Signaling contacts: 0 | Connection type Detail: Plug connector, M8, 4-pin | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
DBS60E-B8FP00100
Incremental encoders | DBS60 | DBS60E-B8FP00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

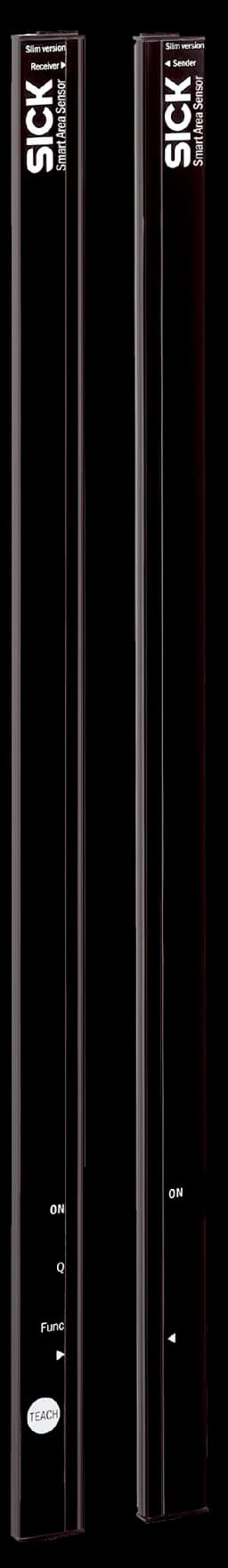

SGS4-S060F3TS1T00
Automation light grids | SLG | SGS4-S060F3TS1T00 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: Teach-in button | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 600 mm | Response time: 19 ms
YM2A18-100UA5XLEAX
Connectors and cables | Sensor-actuator cables | YM2A18-100UA5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DT50-N2113
Laser distance sensors | Dx50 | DT50-N2113 | Measuring range: 200 mm ... 20,000 mm, 90% remission factor, 200 mm ... 8,500 mm, 18% remission factor, 200 mm ... 5,000 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 15 ms | Digital output: 1 x NPN | Type of analog output: Current output | Multifunctional input (MF): 1 x
SP2-2000
System plugs and extension modules | System plugs deTec and deTem | SP2-2000 | Function range: SP2 | System connection: Plug, M12, 5-pin | Extension connection: Without extension connection | Items supplied: System plug

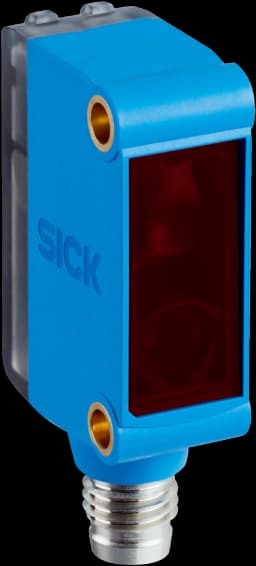

GL6-P4111
Photoelectric sensors | G6 | GL6-P4111 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Housing: Rectangular

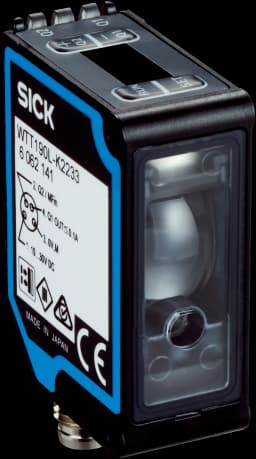

WTT190LC-B2233A00
Laser distance sensors | WTT190 PowerProx | WTT190LC-B2233A00 | Product version: PowerProx Small | Sensing range max.: 200 mm ... 3,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Analog output: - | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, ef
YM2X18-C50EG1MRJA8
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2X18-C50EG1MRJA8 | Connection type head A: Male connector, M12, 8-pin, straight, X-coded | Connection type head B: Male connector, RJ45, 8-pin, straight | Signal type: Ethernet, Gigabit Ethernet | Cable: 0.5 m, 8-wire, PUR, halogen-free | Description: Ethernet, shielded, Gigabit Ethernet | Application: Zones with oils and lubricants
