41538 резултата за "SICK" · стр. 45/2077
DT20-P214B
Laser distance sensors | DT20 Hi | DT20-P214B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 600 mm | Repeatability: ≥ 0.5 mm | Laser class: 2 | Typ. light spot size (distance): 3 mm x 6 mm (600 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
BEF-1SHAHBKU2
Mounting systems | Brackets | BEF-1SHAHBKU2 | Description: FlexFix mounting kit for 1 device, e.g. sender or receiver (FlexFix bracket and assembly materials for mounting on PP4 or PC4 device columns) | Material: Plastic | Details: Plastic | Packing unit: 2 pieces | Items supplied: 2 x FlexFix bracket, 4 x rhombus sliding nuts, 4 × M5 screws, 12 mm, 4 × washer, 5.3 mm

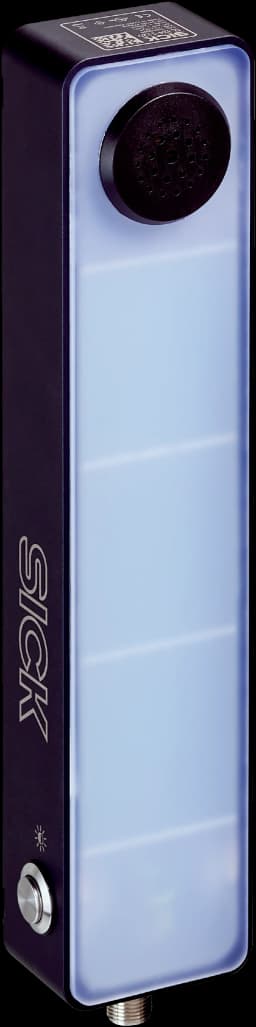

Signal Light bar
Signal transmitters | Optical signal transmitters | Signal Light bar | Description: Signal Light bar (red, yellow, green), including 98 dB buzzer, adjustable levels for visual and acoustic warning, 24 V, M12 connection, including accessories for mounting

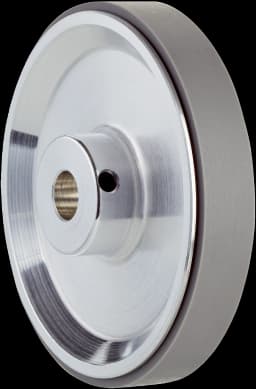

BEF-MR10300AP
Measuring wheels and measuring wheel mechanics | Measuring wheels | BEF-MR10300AP | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheels | Description: Aluminum measuring wheel with smooth polyurethane surface for 10 mm solid shaft, circumference 300 mm

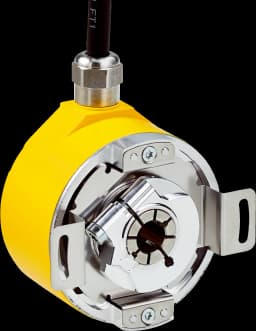

AFM60S-TASK262144
Safety encoders | AFS/AFM60S Pro | AFM60S-TASK262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 6 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 1.5 m

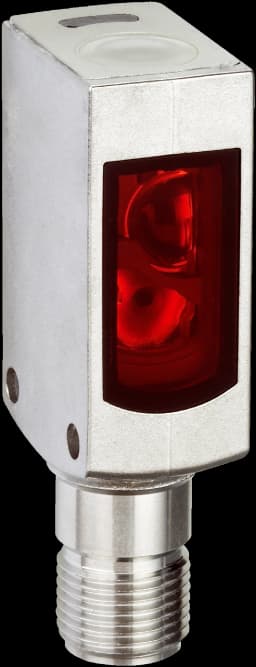

WTB4S-3P2162V
Photoelectric sensors | W4 | WTB4S-3P2162V | Sensing range max.: 4 mm ... 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Rectangular

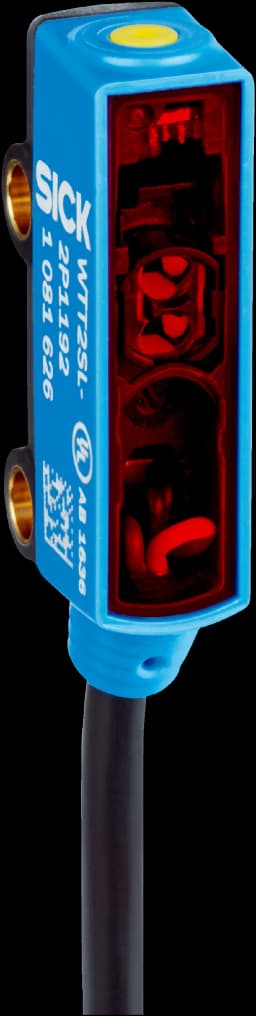

WTT2SL-2P3292
Laser distance sensors | WTT2 PowerProx | WTT2SL-2P3292 | Product version: PowerProx Micro | Sensing range max.: 50 mm ... 800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Analog output: - | Communication interface: -

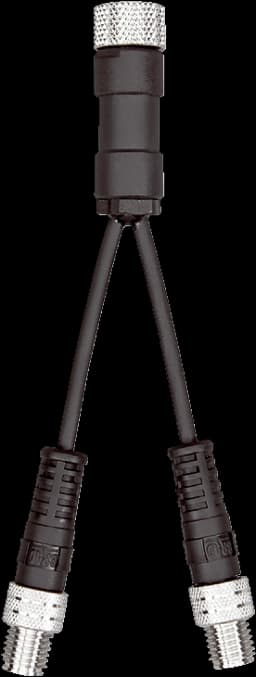

SBO-02C08-KBD
Connectors and cables | Y- and T-splitters | SBO-02C08-KBD | Description: Unshielded, for splitting two signal paths and for splitting IO-Link devices | Connection type head A: Female connector, M8, 4-pin, A-coded | Connection type head B: Male connector, M8, 3-pin, A-coded | Connection type head C: Male connector, M8, 3-pin, A-coded | Cable: 0.04 m
KUP-1010-WSS
Shaft adaptation | Shaft couplings | KUP-1010-WSS | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial +/- 1.5 mm, axial +/- 1.0 mm, angular +/- 5°, max. speed 3,000 rpm, –40° to +120 °Celsius, nominal torque 300 Ncm, rotational angle at half nominal torque, direction of rotation right viewed on driving shaft 40°, left viewed on driving shaft 60°, material: spring steel 1.1200 nickel plated, hubs
MZT8-03VPS-KRDS04
Cylinder sensors | MZT8 | MZT8-03VPS-KRDS04 | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.3 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
SP1-1100
System plugs and extension modules | System plugs deTec and deTem | SP1-1100 | Function range: SP1 | System connection: Plug, M12, 5-pin | Extension connection: Female connector M12, 5-pin | Items supplied: System plug
Adapter S30X-MS3 static
System plugs and extension modules | System plugs S3000 | Adapter S30X-MS3 static | Description: Adapter S3000 system plug to microScan3 for static control inputs

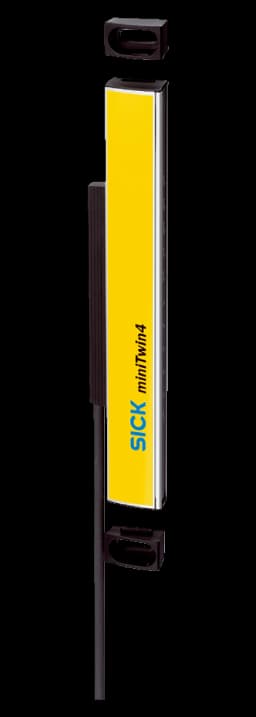

C4MT-03014ABB03DB0
Safety light curtains | miniTwin | C4MT-03014ABB03DB0 | Usage: miniTwin4 as a standalone device | Mounting system type: O-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 5 m | Protective field height: 300 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, O-Fix bracket, 2 pieces, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions
MWS120-12B39C65536
Measuring wheel encoders | MWS120 | MWS120-12B39C65536 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V ... 32 V, Incremental, TTL, HTL | Supply voltage: 4.5 V ... 32 V | Mounted encoder: DFS60, DFS60A-S4PC65536, 1036726 | Connection type: Male connector, M12, 8-pin, radial

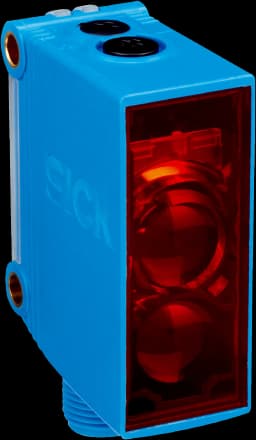

GTB10-P4212
Photoelectric sensors | G10 | GTB10-P4212 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-G10DC01
TCT-2AAGE1506MZ
Temperature sensors | TCT | TCT-2AAGE1506MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Thread G ½ B | Insertion length/diameter of probe: 150 mm / 6 mm | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -

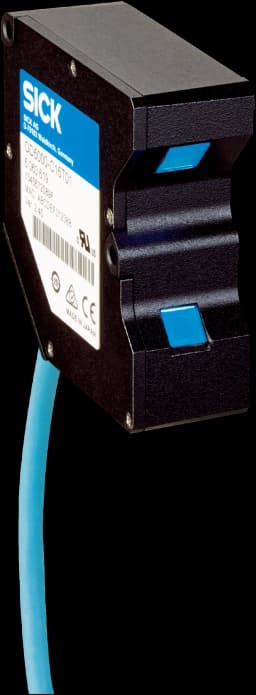

OD5000-C15T01
Laser distance sensors | OD5000 | OD5000-C15T01 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 14 mm ... 16 mm | Repeatability: 0.01 µm | Laser class: 1 | Typ. light spot size (distance): Ø 30 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm

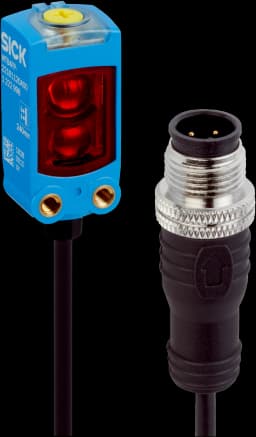

WTV4FE-8416A120A00
Photoelectric sensors | W4 | WTV4FE-8416A120A00 | Sensing range min. / max.: 2 mm / 50 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, V-optics | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Cable with plug M12, 4-pin, 182 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, IO-Link, Teach-Turn adjust
KTM-WP11181P
Contrast sensors | KTM | KTM-WP11181P | Light source: LED | Communication interface: - | Sensing distance: 12.5 mm | Switching output: PNP | Light spot size: 1.6 mm x 9.5 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M8, 4-pin | Adjustment: Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic | Housing material: Plastic
FPS503
Profiling systems | Free Flow Profiler | FPS503 | Integrated applications: Vehicle measurementToll systemsVerification of compliance with vehicle dimension regulationsOptimization of the loading process | Application: Measurement of vehicles and objects in motion, Verification of compliance with vehicle dimension regulations, Optimization of the loading process for ferries and car trains (RoLa), Basis for a size-based toll or payment system | Items supplied: 2D LiDAR sensor LMS511 SE (3 x), Traf
