GL6L-P4211
Photoelectric sensors | G6 | GL6L-P4211 | Sensing range min. / max.: 0.08 m / 12 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
WTB4FP-21311120ZZZ
Photoelectric sensors | W4 | WTB4FP-21311120ZZZ | Sensing range min. / max.: 4 mm / 220 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, MultiPulse | Switching output: Push-pull: PNP/NPN | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment | Special features: MultiPulse: sensor with self-m
Muting arm protective plate, PP4 / PC4, right
Mounting systems | Muting arms | Muting arm protective plate, PP4 / PC4, right | Description: Protective plate for muting arm for mounting on PP4 or PC4 device column | Items supplied: 1 x muting arm protective plate, right, 2 x rhombus sliding nut, 2 × M5 screws, 12 mm, 2 × washer, 5.3 mm | Suitable for: PP4 device column, PC4 device column, PP4 device column
SG2-AAA00011IA0000
Safety multibeam scanners | scanGrid2 | SG2-AAA00011IA0000 | Variant: scanGrid2 I/O | Safety level: PL c, SIL 1, Type 2 | Protective field range: 1.1 m (At a resolution of 70 mm) | Number of fields: 8 | Number of monitoring cases: 4 | Scanning angle: 150° | Integration in the control system: Local inputs and outputs (I/O) | Connection type: Connector M12, 8-pin, A-coded | Cascading: yes | Items supplied: Safe multibeam scanner, safety instruction, Mounting instructions, Operating instructions fo
X-muting arm kit, mounting on the device
Mounting systems | Muting arms | X-muting arm kit, mounting on the device | Description: Muting arm kit for 2-sensor cross muting, pre-assembled and pre-adjusted muting sensors and reflectors, for mounting on both sides of a deTec or deTem housing profile | Items supplied: 2 × GL6G-P0211S98 muting sensor incl. cable with M12 male connector, 4-pin, angled, 2 m (2142441), 2 × P250 reflector (5304812), 4 × X-muting bracket (2139886), 2 × muting arm, long (2111923), 2 × muting arm, short (2111924),
IN40-E0109K
Safety switches | IN4000 Direct | IN40-E0109K | Design: Rectangular | Enable zone: 20 mm | Dimensions: 40 mm x 40 mm x 66 mm | Installation type: Non-flush | Connection type Detail: Plug connector, M12, 4-pin | Type of output: Self-monitoring semiconductor outputs (OSSDs) | Performance level: PL e | Change information: The devices conform to Category 3 as well as PFHD 1.0 × 10–8. Please check whether the device meets the safety requirements of your application as a result. If you have any questi

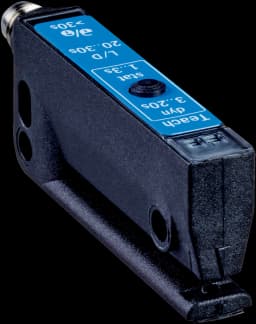

WFS3-40B41CA00
Fork sensors | WFS | WFS3-40B41CA00 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Light source: LED | Type of light: Infrared light | Fork width/depth: 3 mm, 42 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 15 kHz | Response time: ≤ 46 µs | Enclosure rating: IP65
SG2-AAA00011CB0000
Safety multibeam scanners | scanGrid2 | SG2-AAA00011CB0000 | Variant: scanGrid2 CANopen | Safety level: PL c, SIL 1, Type 2 | Protective field range: 1.1 m (At a resolution of 70 mm) | Number of fields: 16 | Number of monitoring cases: 8 | Scanning angle: 150° | Integration in the control system: CANopen | Connection type: Male connector, M12, 5-pin, A-coded | Cascading: no | Items supplied: Safe multibeam scanner, safety instruction, Mounting instructions, Operating instructions for download
LED light lines
Signal transmitters | Optical signal transmitters | LED light lines | Description: Green/red light lines to indicate status and condition | Enclosure rating: IP67

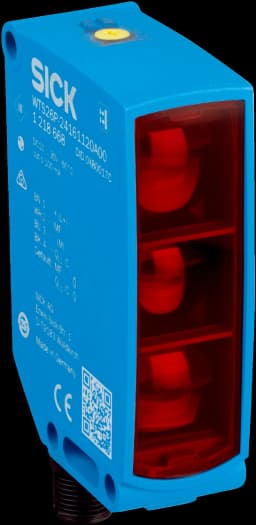

WTS26G-24161920A00
Photoelectric sensors | W26 | WTS26G-24161920A00 | Sensing range min. / max.: 10 mm / 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, TwinEye technology | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjust
REF-PLUS-R50
Reflectors and optics | Reflectors | REF-PLUS-R50 | Description: Self-adhesive, roll | Dimensions: 50 mm 22.8 m | Ambient operating temperature: –20 °C ... +60 °C

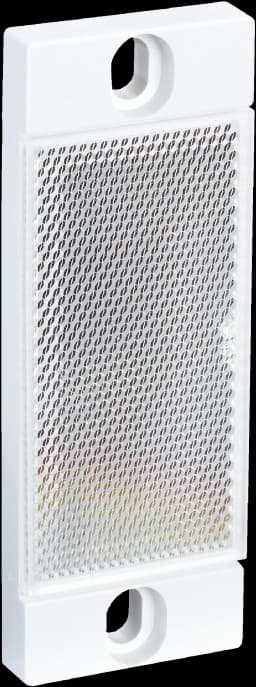

PL30F
Reflectors and optics | Reflectors | PL30F | Description: Fine triple reflector, screw connection, suitable for laser sensors | Dimensions: 30 mm 7.4 mm | Ambient operating temperature: –30 °C ... +65 °C
WTB16P-24861120A00
Photoelectric sensors | W16 | WTB16P-24861120A00 | Sensing range min. / max.: 10 mm / 1,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjustment | Communication int
DT50-P1113
Laser distance sensors | Dx50 | DT50-P1113 | Measuring range: 200 mm ... 10,000 mm, 90% remission factor, 200 mm ... 6,500 mm, 18% remission factor, 200 mm ... 4,000 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 20 ms | Digital output: 1 x PNP | Type of analog output: Current output | Multifunctional input (MF): 1 x

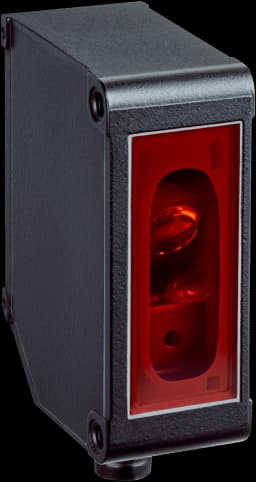

OD1-B150F0AQ14
Laser distance sensors | OD Mini | OD1-B150F0AQ14 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 50 mm ... 250 mm | Repeatability: 200 µm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 1.3 mm (150 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
YF2A14-C20UB3M2A14
Connectors and cables | Sensor-actuator cables | YF2A14-C20UB3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.2 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
UC4-13341
Ultrasonic distance sensors | UC4 | UC4-13341 | Communication interface: - | Operating range, limiting range: 13 mm ... 150 mm, 250 mm | Connection type: Male connector, M8, 3-pin | Sending axis: Straight | Response time: 24 ms | Digital output: 1 x PNP
V3S146-1ABBBAA
Machine vision | Visionary-B Two | V3S146-1ABBBAA | Working range: 0.28 m ... 16 m, 0.65 m ... 37 m | Sensor resolution: 1,024 px x 576 px | Scan/frame rate: ≤ 30 fps | Detection angle: 130° x 105°, 90° x 60°
deTec4 Core Set 14/900
Safety light curtains | deTec | deTec4 Core Set 14/900 | Product version: deTec4 Core | System part: Set | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 10 m | Protective field height: 900 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, 4 FlexFix brackets, 4 QuickFix brackets, 2 connecting cables, 5 m, test rod with diameter corresponding to the resolution of the safet
IDM141-411S
Mobile handheld scanners | IDM | IDM141-411S | Readable code structures: 1D codes, Stacked | Reading distance: 20 mm ... 850 mm | Application: Standard application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB, Bluetooth | Ambient operating temperature: –10 °C ... +50 °C | Code resolution: ≥ 0.076 mm
