PBT-RB100SG1SSFALA0Z
Pressure sensors | PBT | PBT-RB100SG1SSFALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection typ
SLG10S-020FBR11A00
Automation light grids | SLG-2 | SLG10S-020FBR11A00 | Optical light exit: Flat | Beam separation: 10 mm | Operating range: 6 m | Detection height: 200 mm | Length of cable: 150 mm
DLS40E-BDRV00500
Incremental encoders | DLS40 | DLS40E-BDRV00500 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 27 V, Open Collector | Connection type: Cable, 5-wire, radial, 2 m | Pulses per revolution: 500
TR110-XAFR
Actuators and bolts | Actuators for RFID safety switches | TR110-XAFR | Product: Actuators for RFID safety switches | Description: Hinged actuators for doors with hinges on right | Items supplied: Including two safety screws M5
LFH-EW010G1VS20ZZ0
Level sensors | LFH | LFH-EW010G1VS20ZZ0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 0 V ... 10 V, 3-wire | Connection type: PUR cable connection | Process temperature: –10 °C ... +50 °C | Process pressure: 0 mH2O ... 10 mH2O | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Specialty: Enhanced vari
PBT-CBX40SG1SSNAMA0Z
Pressure sensors | PBT | PBT-CBX40SG1SSNAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –0.4 bar ... 0 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection
MLG10S-1040D10501
Automation light grids | MLG-2 | MLG10S-1040D10501 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 1,040 mm | Length of cable: 0.22 m, 0.22 m | Response time: 12.7 ms | Software feature (default setting - see technical data/features): 01
TIM781S-2174104
LiDAR sensors | TiM-S | TIM781S-2174104 | Integrated application: Protective field evaluation with flexible fields, output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 25 m, At > 90% remission factor | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (PNP, to display a detection in the protective field, additional 1 x “Device Ready”) | Connection type: 1 “Ethernet” connection, 4-pin M12 female connector, 1 connection “Power”, 12-pin, M12 ma

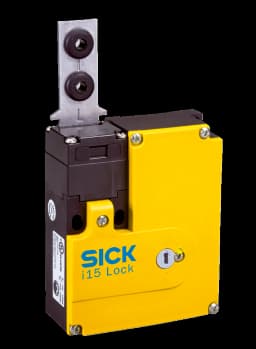

i15-EM0133 Lock
Safety switches | i15 Lock | i15-EM0133 Lock | Locking principle: Power to lock | Locking force FZh: 1,500 N | Connection type Detail: Cable gland, 1 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 1 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 1
AFS60S-BDKL262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BDKL262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 10 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 3 m
DBS60E-TJAPC1024
Incremental encoders | DBS60 | DBS60E-TJAPC1024 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DFS60B-BDAK02048
Incremental encoders | DFS60 | DFS60B-BDAK02048 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,048

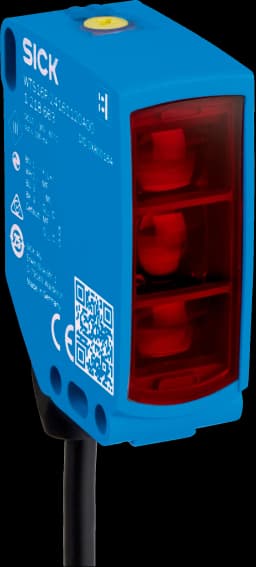

WTS16P-1H161120A00
Photoelectric sensors | W16 | WTS16P-1H161120A00 | Sensing range min. / max.: 10 mm / 750 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, TwinEye technology | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adju
CLV618-D2540 MicroSD memory card kit
Fixed mount barcode scanners | CLV61x | CLV618-D2540 MicroSD memory card kit | Optical focus: Fixed focus | Communication interface: PROFINET | Type: Cable connection variant | Max. reading distance: 683 mm | Code resolution: 0.35 mm ... 1 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
PBS2-RB2X5SN1SS0Q5A0Z
Pressure sensors | PBS plus | PBS2-RB2X5SN1SS0Q5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-
DBS60E-R2AC00100
Incremental encoders | DBS60 | DBS60E-R2AC00100 | Mechanical design: Through hollow shaft 8 mm (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
AFM60B-BDKA016384
Absolute encoders | AFS/AFM60 SSI | AFM60B-BDKA016384 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, radial
GRL18S-P2431
Photoelectric sensors | GR18 | GRL18S-P2431 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (2 x)
i12-SA205
Safety switches | i12S | i12-SA205 | System part: sensor | Positive action N/C contacts: 2 | N/O contacts: 0 | Housing material: Plastic | Connection type Detail: Plug connector, M12, 4-pin | Safe series connection: With Flexi Loop (with diagnostics) | Retaining force: 6 N
LFV200-XXSNHCPV
Level sensors | LFV200 | LFV200-XXSNHCPV | Communication interface: - | Process connection: ½'' NPT PN 64 | Probe length: 67 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Blueto
