IQ10-03BPSKW2SS03
Inductive proximity sensors | IQB | IQ10-03BPSKW2SS03 | Sensing range Sn: 3 mm | Installation type: Flush | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special characteristic: Different oscillator frequency
DFS60B-BGEC00500
Incremental encoders | DFS60 | DFS60B-BGEC00500 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 500
PBSH-RB2X5ST1S0D5A0Z
Pressure sensors | PBS Hygienic | PBSH-RB2X5ST1S0D5A0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 2 x PNP + 4 mA ... 20 mA | Connectio
WSE4SP-21312100ZZZ
Photoelectric sensors | W4 | WSE4SP-21312100ZZZ | Sensing range min. / max.: 0 m / 12 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular
DFS60B-BGEL00020
Incremental encoders | DFS60 | DFS60B-BGEL00020 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 20
LFP3000-F4NMB
Level sensors | LFP Cubic | LFP3000-F4NMB | Communication interface: IO-Link | Process connection: ¾" NPT | Probe length: 3,000 mm | Probe type: Cable probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: ye
DBS60E-B1AJ00100
Incremental encoders | DBS60 | DBS60E-B1AJ00100 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
AFS60A-THPA262144
Absolute encoders | AFS/AFM60 SSI | AFS60A-THPA262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Male connector, M23, 12-pin, radial | Programming interface: Over handheld programming tool, over SOPAS
YG2Z18-050XXXXLEBX
Connectors and cables | Other connectors and cables | YG2Z18-050XXXXLEBX | Description: Shielded | Connection type head A: Female connector, M16, 8-pin, angled | Connection type head B: Flying leads | Cable: 5 m, PVC
A3M60A-BCPB014x17
Absolute encoders | A3M60 | A3M60A-BCPB014x17 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 17 bit (16,384 x 131,072) | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: PROFIBUS DP, DPV0, programmable, DPV1, DPV2 | Connection type: Male connector, 2x, M12, 5-pin, axial, Female connector, 1x, M12, 5-pin, axial | Programming interface: Over PLC-Engineering-Tool
HL18-F4A3BDS20
Photoelectric sensors | H18 Sure Sense | HL18-F4A3BDS20 | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark
DFS60E-S1EC00360
Incremental encoders | DFS60 | DFS60E-S1EC00360 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 360
DBS60E-BJFQC1024
Incremental encoders | DBS60 | DBS60E-BJFQC1024 | Mechanical design: Blind hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
FLG4-20012011
Automation light grids | FLG | FLG4-20012011 | Device version: Close | Beam separation: 4 mm | Detection height: 120 mm | Detection field (W x H): 120 mm 200 mm | Response time: < 0.1 ms
DFS60B-S1EA05000
Incremental encoders | DFS60 | DFS60B-S1EA05000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 5,000
RSB1-0462D115059PP1GZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0462D115059PP1GZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 462 mm | Number of beams: 4 | Beam separation: 115 mm | Switching output: PNP | Switching mode: Light switching | Connection type: Cable, 4-wire | Length of cable: 2 m | Light source: LED | Type of light: Infrared light | Housing material: Aluminum (anodised)
DBS60E-T5CA00100
Incremental encoders | DBS60 | DBS60E-T5CA00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm

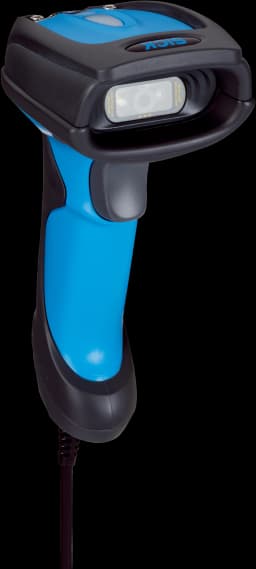

IDM260-411S CDF600 EtherCAT Set
Mobile handheld scanners | IDM | IDM260-411S CDF600 EtherCAT Set | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 400 mm | Application: Industrial application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP | Ambient operating temperature: –20 °C ... +50 °C | Code resolution: ≥ 0.
IME08-04BNSZT0S
Inductive proximity sensors | IME | IME08-04BNSZT0S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Quadruple sensing range
MZC1-2V2PSAKQ0
Cylinder sensors | MZC1 VIA | MZC1-2V2PSAKQ0 | Connection type: Cable with plug, M12, 3-pin, 0.3 m | Output function: NO, IO-Link | Electrical wiring: DC 3-wire | Communication interface: IO-Link
