41538 резултата за "SICK" · стр. 219/2077
SLG10S-100FBKB1K01
Automation light grids | FlexChain | SLG10S-100FBKB1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 10 mm | Operating range: 6.5 m | Detection height: 1,000 mm | Length of cable: 1.5 m
SLG25S-010FAKB1K01
Automation light grids | FlexChain | SLG25S-010FAKB1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 25 mm | Operating range: 4 m | Detection height: 100 mm | Length of cable: 1.5 m
LFV230-XXHCLCPV0128
Level sensors | LFV200 | LFV230-XXHCLCPV0128 | Communication interface: - | Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm) | Probe length: 128 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
DBS60E-T6APD1024
Incremental encoders | DBS60 | DBS60E-T6APD1024 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
AFM60B-BGAA032768
Absolute encoders | AFS/AFM60 SSI | AFM60B-BGAA032768 | Singleturn or multiturn version: Multiturn | Max. resolution: 15 bit x 12 bit (32,768 x 4,096) | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
SES90-HN050AK22
Motor feedback systems | SES/SEM90 | SES90-HN050AK22 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: For integration | Sine/cosine periods per revolution: 64 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, 8-pin | Inner diameter of hollow shaft: 50 mm | Operating temperature range: –30 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
MLG25N-1475H10501
Automation light grids | MLG-2 | MLG25N-1475H10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 25 mm | Operating range: 5 m | Detection height: 1,475 mm | Length of cable: 0.22 m, 0.21 m | Response time: 5.9 ms | Software feature (default setting - see technical data/features): 01
DFS60B-S1AK00625
Incremental encoders | DFS60 | DFS60B-S1AK00625 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 625
SAS4-S060N3PS1W07
Automation light grids | SLG | SAS4-S060N3PS1W07 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 600 mm | Response time: 57 ms
RAY26P-34112C30ZZZ
Photoelectric sensors | RAY26 Reflex Array | RAY26P-34112C30ZZZ | Minimum object size: 2 mm | Detection height: 10 mm | Sensing range max.: 0 m ... 1.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 270 mm | Light source: PinPoint LED | Adjustm
DAXLAN-1100BA0C0000W01
Linear encoders | DAX | DAXLAN-1100BA0C0000W01 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 1,100 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
SFM60-HPKB4K02
Motor feedback systems | SFS/SFM60 | SFM60-HPKB4K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
IQ40-40NPSKC0S
Inductive proximity sensors | IQG | IQ40-40NPSKC0S | Special applications: Difficult application conditions | Sensing range Sn: 40 mm | Installation type: Non-flush | Cuboid shape (W x H x D): 40 mm x 40 mm x 132 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin
PBST-RB025SN1SSFQMA0Z
Pressure sensors | PBST | PBST-RB025SN1SSFQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up to m
DBS60E-BFEPC1024
Incremental encoders | DBS60 | DBS60E-BFEPC1024 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
HL18T-P1G3AB
Photoelectric sensors | H18 Sure Sense | HL18T-P1G3AB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 3 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right:
DFS60B-S1EB05000
Incremental encoders | DFS60 | DFS60B-S1EB05000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 5,000
DFS60I-BBAK10000
Incremental encoders | DFS60 | DFS60I-BBAK10000 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 10,000 | Encoder material / Enclosure rating: Stainless steel V2A / IP67

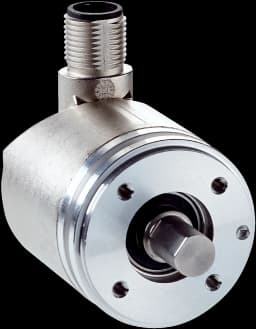

AHM36B-S2AC012x12
Absolute encoders | AHS/AHM36 | AHM36B-S2AC012x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Solid shaft Servo flange 10 mm x 12 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, universal
SLG10S-070SAKA1K01
Automation light grids | FlexChain | SLG10S-070SAKA1K01 | Device version: FlexChain Guest | Optical light exit: Slim | Beam separation: 10 mm | Operating range: 4 m | Detection height: 700 mm | Length of cable: 0.5 m
