Търсене в каталога
41538 резултата за "SICK" · стр. 132/2077
IQ08-04NPSKRDSS14
Inductive proximity sensors | IQY | IQ08-04NPSKRDSS14 | Sensing range Sn: 4 mm | Installation type: Non-flush | Cuboid shape (W x H x D): 8 mm x 40 mm x 8 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.4 m
OD5000-C85W20
Laser distance sensors | OD5000 | OD5000-C85W20 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 0.1 µm | Laser class: 1 | Typ. light spot size (distance): 70 µm x 2,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
MPS-M50TUH05D45CZZ
Cylinder sensors | MPS-M | MPS-M50TUH05D45CZZ | Connection type: Cable with plug, M8, 4-pin, with knurled screws, 0.5 m | Output function: Analog, IO-Link | Measuring range: 50 mm | Diagnostic functionality: Actuator diagnosis | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
AFM60A-S1EB018x12
Absolute encoders | AFS/AFM60 Ethernet | AFM60A-S1EB018x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: EtherCAT®, CoE (CAN over EtherCAT®), programmable | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Programming interface: Over PLC-Engineering-Tool
PBT-CB1X6SG1SSNAMA0Z
Pressure sensors | PBT | PBT-CB1X6SG1SSNAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 0.6 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection
MLG02N-1195N13201
Automation light grids | MLG-2 | MLG02N-1195N13201 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 2.5 mm | Operating range: 2 m | Detection height: 1,195 mm | Length of cable: 0.22 m, 0.21 m | Response time: 38.2 ms | Software feature (default setting - see technical data/features): 01
LFH-EBX60G1VF10ZZ0
Level sensors | LFH | LFH-EBX60G1VF10ZZ0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 0 V ... 10 V, 3-wire | Connection type: FEP cable connection | Process temperature: –10 °C ... +85 °C | Process pressure: 0 bar ... 0.6 bar | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Specialty: Enhanced varia
DLS40E-BEGV00360
Incremental encoders | DLS40 | DLS40E-BEGV00360 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 5-wire, radial, 2 m | Pulses per revolution: 360
DBS36E-S3EK02500
Incremental encoders | DBS36/50 | DBS36E-S3EK02500 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500

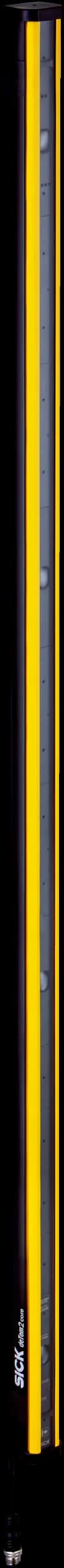

M2C-SA0430LA10
Safety light-beam sensors | deTem | M2C-SA0430LA10 | Product version: deTem2 Core | Functional principle: Sender/receiver | System part: Sender | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Scanning range: 17 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Sender
ANS58B-TINNA000000400AXX262144
Absolute encoders | ANS/ANM58 | ANS58B-TINNA000000400AXX262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 16 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool
MIS-025CLTP0
Magnetic sensors | MIS | MIS-025CLTP0 | Scanning range: 0 mm ... 3 mm, Distance between sensor and tag | Number of different magnetic-coded tags: 15 | Communication interface: IO-Link | Analog output (current): 4 mA ... 20 mA | Analog output (voltage): 0 V DC ... 10 V DC | Connection type: 1 x Cable with M8 male connector, 4-pin, 0.3 m
WTM12L-34161820A00
Photoelectric sensors | W12 | WTM12L-34161820A00 | Sensing range min. / max.: 15 mm / 420 mm, 0 mm / 150 mm, 15 mm / 650 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 315 mm | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing
TiM571-2050101
LiDAR sensors | TiM | TiM571-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM | Working range: 0.05 m ... 25 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
RE23-SK
Actuators and bolts | Actuators for magnetic safety switches | RE23-SK | Product: Actuators for magnetic safety switches | Description: Replacement actuator for RE23-Sxx, RE23-Sxxx
BEF-SEC1XX/200/3XX/400 ROD-MOUNT SET
Mounting systems | Brackets | BEF-SEC1XX/200/3XX/400 ROD-MOUNT SET | Description: Mounting kit consisting of: 1x mounting bracket (L-shaped), 2x M4 screws incl. washers | Material: Steel | Details: Steel, galvanized (angle), Zinc die cast (clamping bracket) | Items supplied: Universal clamp (5322626), mounting hardware | Suitable for: sensingCam SEC1XX/200/3XX/400
BEF-WN-OD2000
Mounting systems | Brackets | BEF-WN-OD2000 | Description: Stainless-steel mounting bracket | Material: Stainless steel | Details: Stainless steel
HSE18-V4B1BA
Photoelectric sensors | H18 Sure Sense | HSE18-V4B1BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 20 m | Light source, light type: LED, Infrared light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Health output | Potentiometer, right: None | Potentiometer, left: None | Connection type: Cable with M12 mal

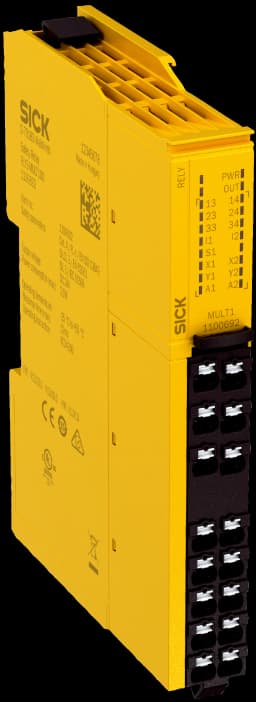

RLY3-MULT100
ReLy | RLY3-MULT100 | Applications: Evaluation unit | Compatible sensor types: Safety sensors with OSSDs, Safety sensors with test input, safety sensors with potential-free outputs, Safety pressure mats | Connection type: Front connector with spring terminals | Restart interlock: yes | External device monitoring (EDM): Integrated | Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 2 test pulse outputs (not safe) | Housing width: 18 mm
YN2D24-030PN1MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-030PN1MRJA4 | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 3 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
