Търсене в каталога
41538 резултата за "SICK" · стр. 117/2077
IM30-20BPS-NC1
Inductive proximity sensors | IMI | IM30-20BPS-NC1 | Special applications: Hygienic and washdown zones, Difficult application conditions | Special features: Sensing face made of stainless steel V4A, Resistant to cleaning agents, triple sensing range, Visual adjustment indicator
IMP05-01BPSVR9S
Inductive proximity sensors | IMP | IMP05-01BPSVR9S | Special applications: Hydraulic application | Sensing range Sn: 1 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.3 m | Special features: High pressure resistant, Temperature resistance
LL3-TH15
Fiber-optic sensors | Fiber-optic cables | LL3-TH15 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve, 90° deflection | Fiber length: 2,000 mm | Smooth sleeve diameter: 4 mm | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M4 hexagon nut, 2 x M4 hexagon nut (plastic), 2 x washer, FC fiber cutter (5304141), LL3-TB09
IMP12-1B5PPVC0C
Inductive proximity sensors | IMP | IMP12-1B5PPVC0C | Special applications: Hydraulic application | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: High pressure resistant, Temperature resistance
IMR08-02BPSTC0S
Inductive proximity sensors | IMR | IMR08-02BPSTC0S | Housing: Standard design | Special applications: Welding range, Difficult application conditions | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Reduction factor 1, Magnetic-field-resistant
YF2L15-010UK1M2L15
Connectors and cables | Power cables | YF2L15-010UK1M2L15 | Description: Power, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, L-coded | Connection type head B: Male connector, M12, 5-pin, straight, L-coded | Signal type: Power | Cable: 1 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
PLG3-210F431
Automation light grids | PLG | PLG3-210F431 | Beam separation: 30 mm | Operating range: 1.3 m | Detection height: 210 mm | Length of cable: 280 mm | Response time: < 80 ms
RE27-SB68LS04
Safety switches | RE2 | RE27-SB68LS04 | Systemteil: sensor | N/O contacts: 2 | N/C contacts: 0 | Signaling contacts: 1 | Connection type Detail: Cable with plug M12, 8-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Status display: yes
LBV311-XXCCVRKMX
Level sensors | LBV301 | LBV311-XXCCVRKMX | Communication interface: - | Process connection: Tri-Clamp 2'' (316L, Ra < 0.8 μm) | Probe length: 160 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: Double relay (DPDT) | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Plastic | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
PTAC-1XXXX88A4MZB
Pressure sensors | PTA | PTAC-1XXXX88A4MZB | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring chamber type: Ceramic pressure measuring cell | Measuring range: –0.2 bar ... 0.2 bar, –2.9 psi ... 2.9 psi | Accuracy: ≤ ± 0.3 %, of the span | Process connection: G ¼ A (ISO 1179-2) | Process temperature: –20 °C ... +130 °C | Seal: FKM | Communication interface: Bluetooth | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP66, IP67, IP69 | Sup
PBT-CB1X1SGTSSNAMA0Z
Pressure sensors | PBT | PBT-CB1X1SGTSSNAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t
YG2A14-010UA3M8U14
Connectors and cables | Sensor-actuator cables | YG2A14-010UA3M8U14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Male connector, M8, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 1 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

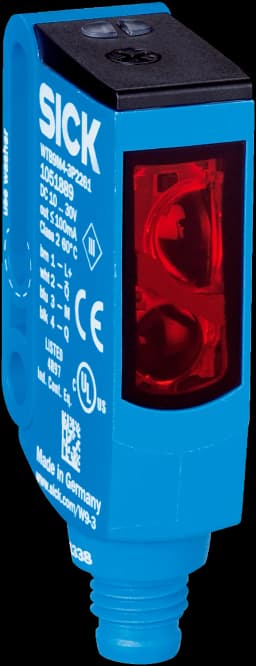

WTB9M4-3P2211
Photoelectric sensors | W9 | WTB9M4-3P2211 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: -

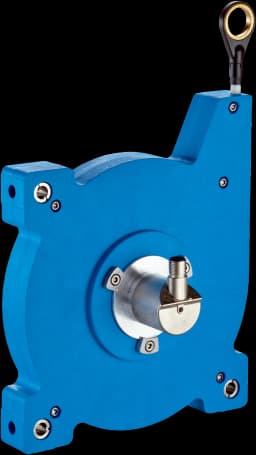

BCG19-C1QM1029
Wire draw encoders | EcoLine | BCG19-C1QM1029 | Measuring range: 0 m ... 10 m | Communication interface: CANopen | Supply voltage: 10 V ... 30 V | Connection type: Male connector, M12, 5-pin, universal | Mounted encoder: AHM36 CANopen, AHM36A-S3CC014x12, 1065999 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: yes
CMB18-08BPPEC0SA00
Capacitive proximity sensors | CMB | CMB18-08BPPEC0SA00 | Sensing range Sn: 0 mm ... 8 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin | Switching output: PNP | Output function: Complementary | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task base logics

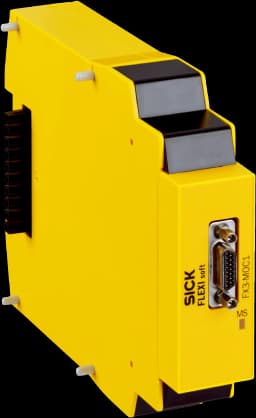

FX3-MOC100010
Safety controllers | Flexi Soft | FX3-MOC100010 | Module: Motion Control module | Connection type: Male connector, Micro D-Sub, 15-pin | Encoder interface: A/B incremental encoder, TTL, A/B incremental encoder, HTL 12 V or 24 V, A/B incremental encoder, RS-422, Sin/cos encoder, SSI encoder (master / listener), HIPERFACE® | Drive safety functions: Safe stop 1 (SS1), safe stop 2 (SS2), safe operating stop (SOS), safe speed monitoring (SSM), safely-limited speed (SLS), safe direction (SDI), safe br
IM30-20BNS-NC1
Inductive proximity sensors | IMI | IM30-20BNS-NC1 | Special applications: Hygienic and washdown zones, Difficult application conditions | Special features: Sensing face made of stainless steel V4A, Resistant to cleaning agents, triple sensing range, Visual adjustment indicator
STE-2312-G
Connectors and cables | Field-wireable connectors | STE-2312-G | Description: HIPERFACE®, shielded, SSI, Incremental, RS-422 | Connection type head A: Male connector, M23, 12-pin, straight, A-coded | Signal type: HIPERFACE®, SSI, Incremental, RS-422 | Connection systems: Solder connection

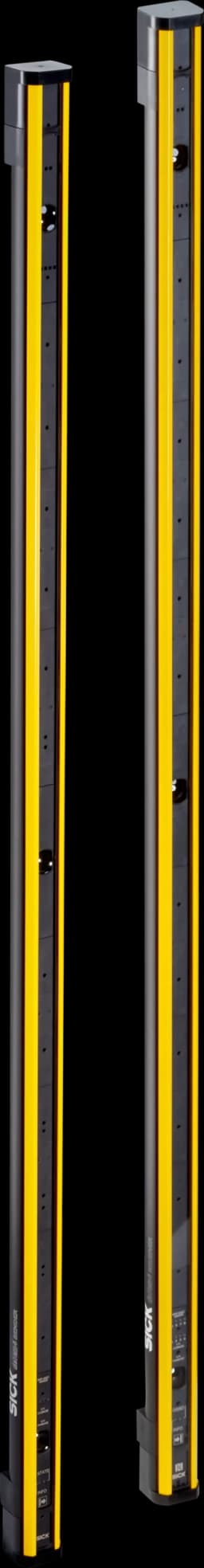

M4P-SA03400A00, M4P-EA03400C00
Safety light-beam sensors | deTem | M4P-SA03400A00, M4P-EA03400C00 | Product version: deTem4 | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 90 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Depending on system plug (M12 ma
UC30-21416B
Ultrasonic distance sensors | UC30 | UC30-21416B | Communication interface: IO-Link | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
