Търсене в каталога
41538 резултата за "SICK" · стр. 108/2077
Y-CAN cable
Connectors and cables | Y- and T-splitters | Y-CAN cable | Description: Unshielded, for connecting several CLV69x variants with only one CAN connection each via the same CAN connection when using a cloning plug | Connection type head A: Male connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 5-pin, A-coded | Connection type head C: Male connector, M12, 5-pin, A-coded
V2D621R-2MSFFB5
Image-based code readers | Lector62x | V2D621R-2MSFFB5 | Variant: Complete device | Optical focus: Teach auto focus | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Illumination color: Red, blue | Focal length: 17.1 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
DFS60B-S4VA02048
Incremental encoders | DFS60 | DFS60B-S4VA02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,048

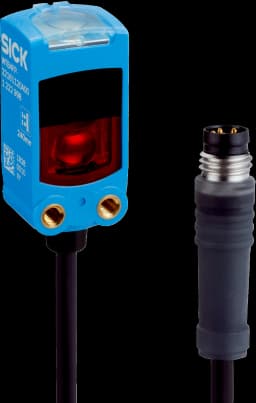

WLD4FP-P04
Photoelectric sensors | W4 | WLD4FP-P04 | Sensing range min. / max.: 0 m / 2.8 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin, 110 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Special features: Masking on
DFS60B-S1EA00500
Incremental encoders | DFS60 | DFS60B-S1EA00500 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 500
CSS-WBG4C4115AA10Z
Color sensors | CSS High Resolution | CSS-WBG4C4115AA10Z | Light source: LED | Housing design: Small | Communication interface: IO-Link | Sensing distance: 150 mm | Switching output: Push-pull: PNP/NPN | Light spot size: Ø 3.5 mm ... 6.5 mm | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin
AR60 adapter, WSU/WEU26
Commissioning aids and test equipment | Alignment aids | AR60 adapter, WSU/WEU26 | Description: Adapter AR60 for WSU/WEU26-3 and WSU/WEU26/2
PBS2-AB016SG1SSDQ5A0Z
Pressure sensors | PBS plus | PBS2-AB016SG1SSDQ5A0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 16 bar, 0 psi ... 232 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal
LL3-DV07
Fiber-optic sensors | Fiber-optic cables | LL3-DV07 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 1 x M6 hexagon nut, FC fiber cutter (5304141)

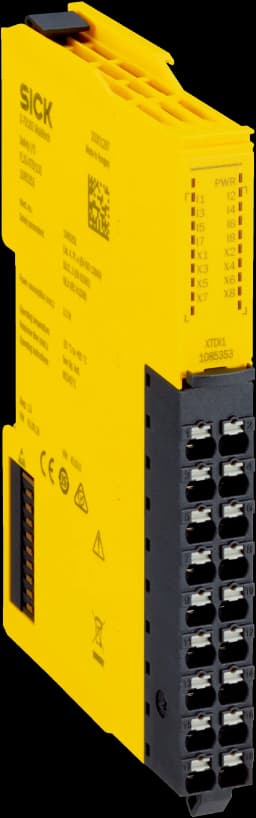

FLX3-XTDI100
Safety controllers | Flexi IO | FLX3-XTDI100 | Module: I/O module | Short designation: XTDI1 | Safety inputs: 8 | Test outputs: 8 | Connection type: Front connector with spring terminals | Safe series connection with Flexi Loop: Yes | Items supplied: I/O module, Front connector with 18 terminals, safety instruction, Operating instructions for download
GL6-P4212
Photoelectric sensors | G6 | GL6-P4212 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: Re
YF2A64-050XXXXLEAX
Connectors and cables | Power cables | YF2A64-050XXXXLEAX | Description: Power, shielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Power | Cable: 5 m, 4-wire, PUR, halogen-free | Connection systems: Flying leads
SIG350-0006AP100
Network devices | SIG350 | SIG350-0006AP100 | Product category: IO-Link Master | Communication interface: IO-LinkEthernetEtherCAT®REST APIMQTTOPC UA | Supported products: IO-Link DevicesBinary switching sensorsBinary actuators | Scope of delivery: SIG350-0006AP100Marking labelsQuickstart | Further functions: Web server integratedIIoT interface available (dual talk)
DL100-23AB2112
Laser distance sensors | Dx100 | DL100-23AB2112 | Communication interface: PROFINET | Measuring range: 0.15 m ... 300 m, on “diamond grade” reflective tape | Laser class: 2 | Light source: Laser, red | Minimum response time: 2 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x MF1
DAXLVN-0700BA080000M01
Linear encoders | DAX | DAXLVN-0700BA080000M01 | Design: DAX Low Profile | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 700 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01

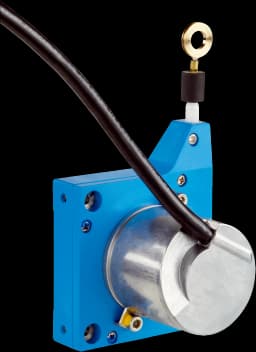

PFG05-A1KM0160
Wire draw encoders | EcoLine | PFG05-A1KM0160 | Measuring range: 0 m ... 1.25 m | Communication interface: Incremental / TTL / RS-422 | Supply voltage: 4.5 V ... 5.5 V | Connection type: Cable, 8-wire, universal, 1.5 m | Mounted encoder: DBS36 Core, DBS36E-SDAK02500, 1064245 | Mounted mechanic: MRA-G055-101D4, 5324019 | Programmable/configurable: no
STE-1204-WZ
Connectors and cables | Field-wireable connectors | STE-1204-WZ | Description: PROFINET, shielded | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Signal type: PROFINET | Cable: CAT5, CAT5e | Connection systems: IDC quick connection | Permitted cross-section: 0.14 mm² ... 0.34 mm²

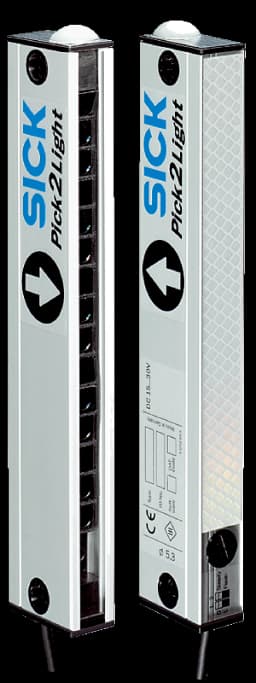

PLG3-120F431
Automation light grids | PLG | PLG3-120F431 | Beam separation: 30 mm | Operating range: 1.3 m | Detection height: 120 mm | Length of cable: 280 mm | Response time: < 80 ms
C2MT-06014BBC03FB0
Safety light curtains | miniTwin | C2MT-06014BBC03FB0 | Usage: miniTwin2 as a standalone device | Mounting system type: O-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 14 mm | Scanning range: 8 m | Protective field height: 600 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, O-Fix bracket, 2 pieces, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions
MLG20S-1340A10501
Automation light grids | MLG-2 | MLG20S-1340A10501 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 1,340 mm | Length of cable: 0.22 m, 0.22 m | Response time: 9 ms | Software feature (default setting - see technical data/features): 01
