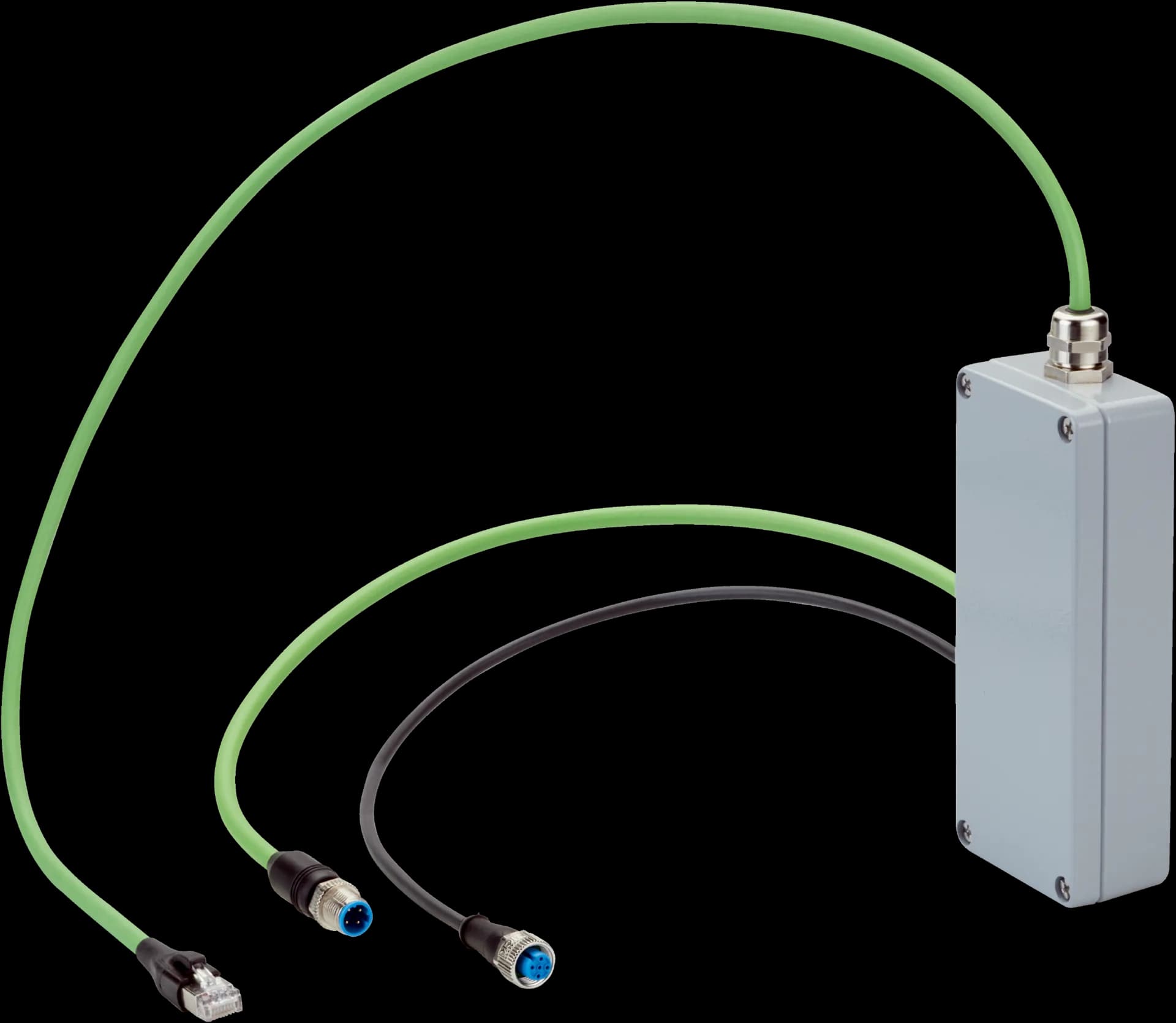

CDE50-02462

Производител: SICK#6078856

Характеристики

Кратко описание: Connection of a SICK sensor in a Power-over-Ethernet (PoE) environment. Splitting of PoE signal into 24 volt supply voltage and Ethernet. A power supply for heating sensors can optionally be connected (e.g., for LMS511, LMS531). Suitable for use in indoor and outdoor applications with a low corrosive environment. The material of the sensor plug and the PoE connection module should be equivalent. The connection module is equipped with cable gland made of nickel-plated brass and PUR cables with nickel-plated zinc die cast M12 male connectors.
Приложение: Outdoor
Поддържани продукти: LMS5xx; LMS1xx; LMS1000; LRS4000; MRS1000; PeopleCounter; picoScan100
Комплект на доставката: PoE connection unit, 2 x M4 x 16 mm hexagon screws for mounting the unit, 1 x RJ45 adapter

Тип на свързване: 1 x “Ethernet” connection, 8-pin RJ45 female connector; 1 x “Supply voltage to sensor” connection, 5-pin M12 female connector, A-coded; 1 x “Ethernet sensor” connection, 5-pin M12 female connector, A-coded
Захранващо напрежение: (42.5 V DC ... 57 V DC), according to PoE, IEEE802.3at Type 2, Class4 / PoE+
Изходна мощност: Max. 25 W
Корпус: Aluminum, polypropylene
Материал на заключващата гайка: Zinc die-cast, nickel-plated
Материал на обвивката: PUR, halogen-free
Степен на защита: IP67
Клас на защита: III
Тегло: 0.7 kg
Размери (Д×Ш×В): 173 mm x 88 mm x 34 mm

Електромагнитна съвместимост (EMC): IEC 61000-6-2:2016-08 / IEC 61000-6-4:2018-02
Работна температура на околната среда: –40 °C ... +60 °C
Температура на съхранение: –40 °C ... +70 °C
Допустима относителна влажност: < 95 %, Non-condensing
