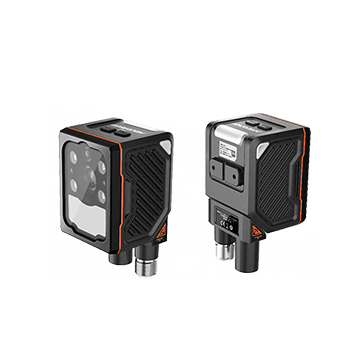

MV-ID3016XM-12M-RBN

Производител: Hikrobot#MV-ID3016XM-12M-RBN

Модел

Поддържани кодове: 1D codes: Code 39, Code 93, Code 128 (include GS1-128), CodaBar, EAN 8, EAN 13, ITF14, ITF25, UPCA, UPCE, Matrix 25, MSI, Code 11, Industrial 2of5, China Post, Pharmacode (one/two-track) 2D matrix codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin, Maxi Code Stacked codes: PDF 417, MicroPDF417
Макс. кадрова честота: 60 fps
Макс. скорост на четене: 110 codes/sec
Тип на сензора: CMOS, global shutter
Размер на пиксела: 3.45 μm × 3.45 μm
Размер на сензора: 1/2.53"
Разделителна способност: 1408 × 1200
Време на експозиция: 25 μs to 30000 μs
Усилване: 0 dB to 24 dB
Монохромна/цветна: Mono
Комуникационен протокол: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP

Интерфейс за данни: Fast Ethernet (100 Mbit/s)
Цифрови I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. Triggering the device is supported via pressing the top button.
Захранване: 24 VDC
Консумирана мощност: Avg.: 6.2 W @ 24 VDC (light source enabled) Max.: 16.8 W @ 24 VDC (light source enabled)

Фокусно разстояние: 12 mm
Байонет на обектива: M12-mount, mechanical focus
Капачка на обектива: Transparent + polarized + diffused lens cap
Светлинен източник: Red point light source + white diffused light source. White/blue/IR/UV point light source is optional.
Система за прицелване: Orange LED
Индикатори: Device body indicator, reading result indicator
Материал на корпуса: Metal
Габаритни размери: Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Тегло: Approx. 195 g (0.4 lb.)
Степен на защита (IP): IP67 (under proper installation of waterproof lens cap)
Температура: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Влажност: 20% RH to 95% RH (no condensation)
Устойчивост на вибрации: Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Устойчивост на удар: Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)

Основни характеристики

Adopts built-in deep learning algorithm to read codes with good robustness.
Adopts CMOS sensor to acquire high-quality images.
Device with liquid lens combined with ToF can achieve fast image settings and real-time focusing.
Supports one-key auto adjustment and easy to operate.
Adopts multiple indicators displaying device status from different sides.
Rotatable cable design for flexible mounting.
Good environmental compatibility with Illuminating system.
Adopts I/O interfaces for input and output signals.
Ingress Protection Rating 67.
