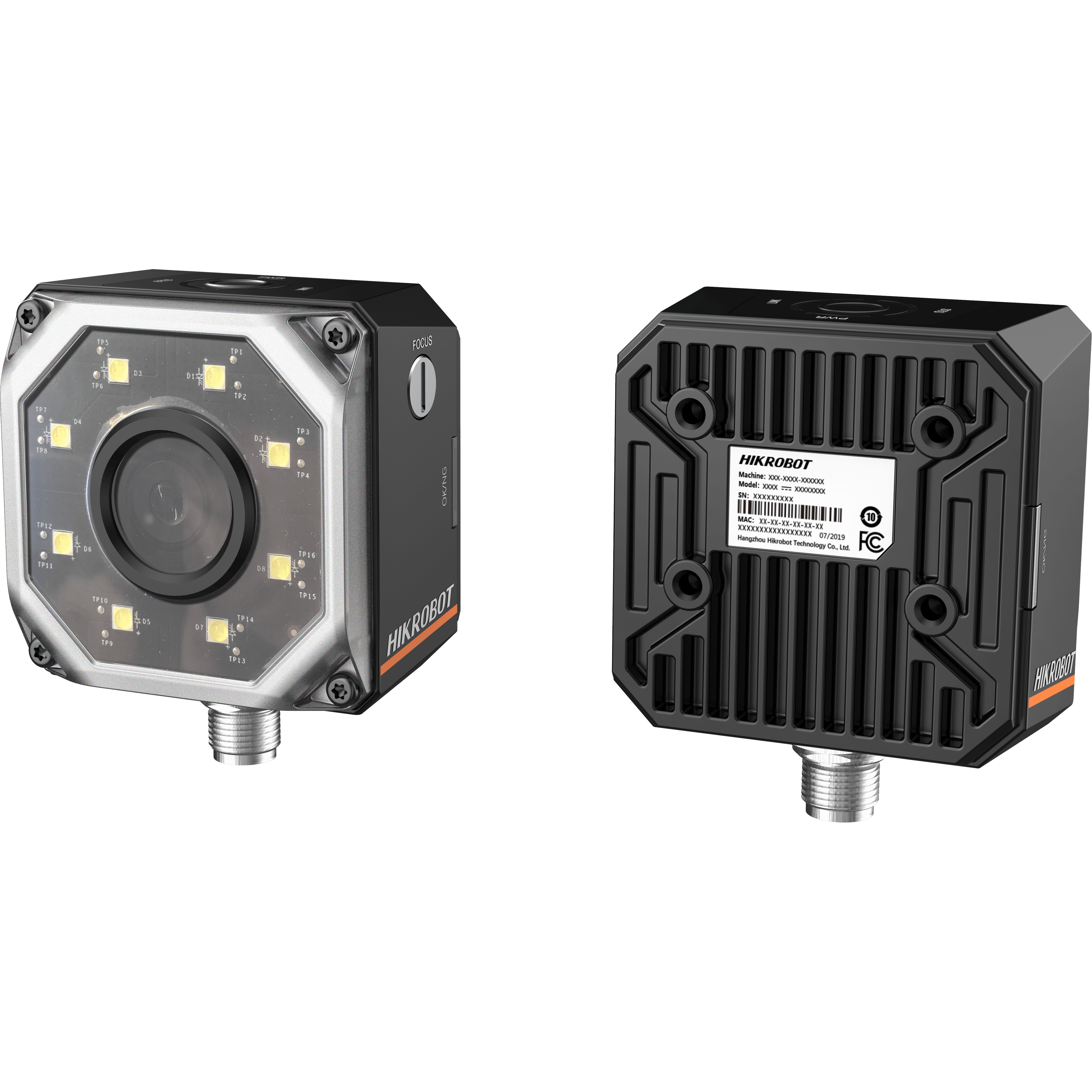

MV-ID3016PM-12M-WBN

Производител: Hikrobot#MV-ID3016PM-12M-WBN

Модел

Модел на продукта: MV-ID3016PM-12M-WBN
Тип: 12mm Mechanical Autofocus len 1.4MP PRO Series Compact Industrial Code Reader

Поддържани кодове: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 25, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code Stacked codes: PDF417, MicroPDF417
Макс. кадрова честота: 60 fps
Макс. скорост на четене: 84 codes/sec
Тип на сензора: Global shutter, mono, 1/2.9", 3.45 μm × 3.45 μm
Разделителна способност: 1408 × 1200
Време на експозиция: 16 μs to 1 sec
Усилване: 0 dB to 45 dB

Интерфейс за данни: Fast Ethernet (100 Mbit/s)
Комуникационен протокол: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, UDP, Fins, Modbus RTU, KV
Цифрови I/O: V3.0: 17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1/2) × 3, isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top. V2.0: 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top.
Захранване: 24 VDC
Консумирана мощност: Avg.: 9 W @ 24 VDC (light source enabled) Max.: 48 W @ 24 VDC (light source enabled)

Фокусно разстояние: 12 mm
Зрително поле: 22° (H) × 16° (V)
Байонет на обектива: M12-mount, mechanical focus supported
Капачка на обектива: Transparent lens cap by default. Fully-polarized lens cap is optional.
Светлинен източник: White light by default. Red/blue/IR light is optional.
Индикатори: Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Материал на корпуса: ADC12
Габаритни размери: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Тегло: Approx. 280 g (0.6 lb.)
Степен на защита (IP): IP67 (under proper installation of waterproof lens cap)
Температура: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Влажност: 20% RH to 95% RH (no condensation)
Устойчивост на вибрации: Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Устойчивост на удар: Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
