Модел
- Модел на продукта

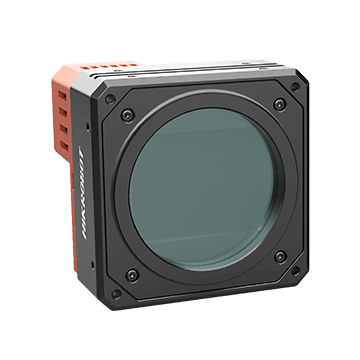

- MV-CH1510-10XC-M72-NF
- Тип
- 151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with fan
Работни характеристики
- Тип на сензора
- CMOS, rolling shutter
- Модел на сензора
- Sony® IMX411
- Размер на пиксела
- 3.76 μm × 3.76 μm
- Размер на сензора
- 66.7 mm
- Разделителна способност
- 14208 × 10640
- Макс. кадрова честота
- 6.2 fps @ 14208 × 10640
- Динамичен обхват
- 78.7 dB
- Отношение сигнал/шум (SNR)
- 46.4 dB
- Усилване
- 0 dB to 36 dB
- Време на експозиция
- 15 μs to 10 sec
- Режим на експозиция
- Off/Once/Continuous exposure mode, supports Global Reset, Rolling
- Монохромна/цветна
- Color
- Формат на пикселите
- Mono 8/10/12/16, Bayer RG 8/10/12/16, RGB 8
- Обединяване на пиксели (binning)
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Децимация
- Not supported
- Огледално изображение
- Supports horizontal reverse image output
Електрически характеристики
- Интерфейс за данни
- CoaXPress with DIN interface
- Цифрови I/O
- 12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
- Захранване
- Camera with fan: 12 VDC to 24 VDC Camera with TEC: 24 VDC
- Консумирана мощност
- Camera with fan: Typ. 21 W @ 24 VDC Camera with TEC non-cooling: Typ. 22 W @ 24 VDC Camera with TEC cooling: Typ. 60 W @ 24 VDC
Механични характеристики
- Байонет на обектива
- M72*0.75, flange back length 19.55 mm
- Габаритни размери
- Camera with fan: 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9") Camera with TEC: 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3")
- Тегло
- Camera with fan: Approx. 1.0 kg (2.2 lb.) Camera with TEC: Approx. 1.9 kg (4.2 lb.)
- Степен на защита (IP)
- IP40 (under proper lens installation and wiring)
- Температура
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
Общи данни
- Клиентски софтуер
- Frame grabber software meeting with CoaXPress Protocol
- Операционна система
- 32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above
- Съвместимост
- CoaXPress, GenlCam
- Сертификати
- CE, RoHS, KC
Основни характеристики
- Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
- Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality image.
- Supports the flat field correction.
- Supports TEC mode, and exposure time of up to 10 seconds.
- Supports 16-bit ADC output with high-precision sampling and high dynamic range.are based on the protocol and standard.
- Adopts CXP-6 interface to transmit data.
