Сензори за налягане
Pressure Sensors
3216 продукта · стр. 29/134

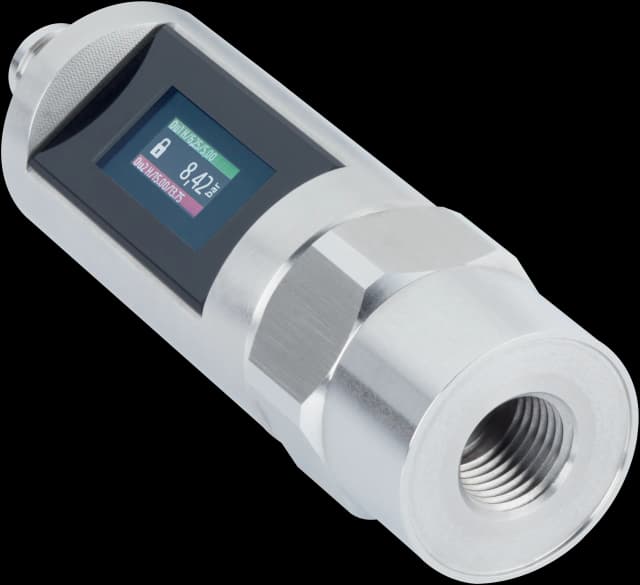

PBST-CB011SG2SSNQMA0Z
Pressure sensors | PBST | PBST-CB011SG2SSNQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: –1 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or ana

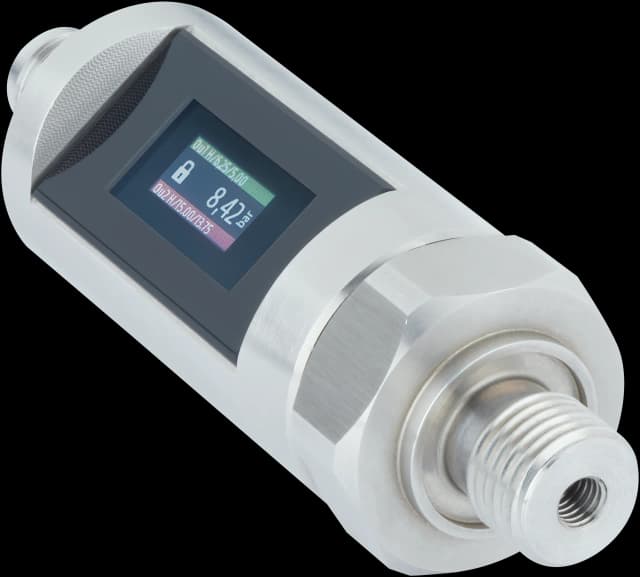

PBST-CB011SN1SSEQMA0Z
Pressure sensors | PBST | PBST-CB011SN1SSEQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up
PBST-CB011SN1SSFQMA0Z
Pressure sensors | PBST | PBST-CB011SN1SSFQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up
PBST-CB011SN1SSNQMA0Z
Pressure sensors | PBST | PBST-CB011SN1SSNQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: –1 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 m
PBST-CB1X1SG1SSEQMA0Z
Pressure sensors | PBST | PBST-CB1X1SG1SSEQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely s
PBST-CB1X1SG1SSFQMA0Z
Pressure sensors | PBST | PBST-CB1X1SG1SSFQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely sc
PBST-CB1X1SG1SSNQMA0Z
Pressure sensors | PBST | PBST-CB1X1SG1SSNQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analo
PBST-CB1X1SG2SSEQMA0Z
Pressure sensors | PBST | PBST-CB1X1SG2SSEQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely
PBST-CB1X1SG2SSFQMA0Z
Pressure sensors | PBST | PBST-CB1X1SG2SSFQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely s
PBST-CB1X1SG2SSNQMA0Z
Pressure sensors | PBST | PBST-CB1X1SG2SSNQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or anal
PBST-CB1X1SN1SSEQMA0Z
Pressure sensors | PBST | PBST-CB1X1SN1SSEQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up
PBST-CB1X1SN1SSFQMA0Z
Pressure sensors | PBST | PBST-CB1X1SN1SSFQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up t
PBST-CB1X1SN1SSNQMA0Z
Pressure sensors | PBST | PBST-CB1X1SN1SSNQMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: –1 bar ... 1 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA
PBST-RB010SG1SSEQMA0Z
Pressure sensors | PBST | PBST-RB010SG1SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scal
PBST-RB010SG1SSFQMA0Z
Pressure sensors | PBST | PBST-RB010SG1SSFQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scala
PBST-RB010SG1SSNQMA0Z
Pressure sensors | PBST | PBST-RB010SG1SSNQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4
PBST-RB010SG2SSEQMA0Z
Pressure sensors | PBST | PBST-RB010SG2SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely sca
PBST-RB010SG2SSFQMA0Z
Pressure sensors | PBST | PBST-RB010SG2SSFQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scal
PBST-RB010SG2SSNQMA0Z
Pressure sensors | PBST | PBST-RB010SG2SSNQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog
PBST-RB010SN1SSEQMA0Z
Pressure sensors | PBST | PBST-RB010SN1SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up to
PBST-RB010SN1SSFQMA0Z
Pressure sensors | PBST | PBST-RB010SN1SSFQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scalable up to m
PBST-RB010SN1SSNQMA0Z
Pressure sensors | PBST | PBST-RB010SN1SSNQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring chamber type: Ceramic (thick film) | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼'' NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: NBR | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0
PBST-RB016SG1SSEQMA0Z
Pressure sensors | PBST | PBST-RB016SG1SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scal
PBST-RB016SG1SSFQMA0Z
Pressure sensors | PBST | PBST-RB016SG1SSFQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scala
