Сензори за налягане
Pressure Sensors
3216 продукта · стр. 22/134
PBS2-RBX40SN1SS0LMA0Z
Pressure sensors | PBS plus | PBS2-RBX40SN1SS0LMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 6 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-L
PBS2-RBX40SN1SS0NMA0Z
Pressure sensors | PBS plus | PBS2-RBX40SN1SS0NMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 6 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-L
PBS2-RBX40SN1SS0Q5A0Z
Pressure sensors | PBS plus | PBS2-RBX40SN1SS0Q5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.4 bar, 0 psi ... 6 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-L
PBS2-RBX60SG1SSDLMA0Z
Pressure sensors | PBS plus | PBS2-RBX60SG1SSDLMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: IO
PBS2-RBX60SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-RBX60SG1SSDNMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: IO
PBS2-RBX60SG1SSDQ5A0Z
Pressure sensors | PBS plus | PBS2-RBX60SG1SSDQ5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: IO
PBS2-RBX60SG2SS0LMA0Z
Pressure sensors | PBS plus | PBS2-RBX60SG2SS0LMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output
PBS2-RBX60SG2SS0NMA0Z
Pressure sensors | PBS plus | PBS2-RBX60SG2SS0NMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output
PBS2-RBX60SG2SS0Q5A0Z
Pressure sensors | PBS plus | PBS2-RBX60SG2SS0Q5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output
PBS2-RBX60SN1SS0LMA0Z
Pressure sensors | PBS plus | PBS2-RBX60SN1SS0LMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-L
PBS2-RBX60SN1SS0NMA0Z
Pressure sensors | PBS plus | PBS2-RBX60SN1SS0NMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-L
PBS2-RBX60SN1SS0Q5A0Z
Pressure sensors | PBS plus | PBS2-RBX60SN1SS0Q5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 0.6 bar, 0 psi ... 9 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-L

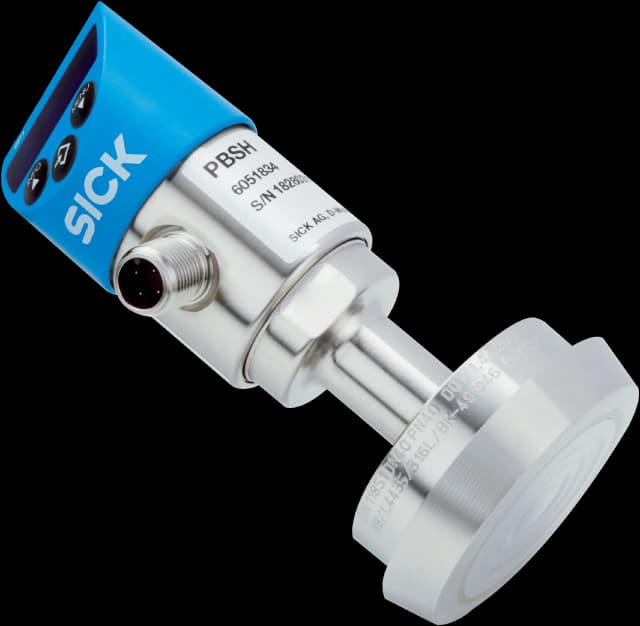

PBSH-AB010S54S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB010S54S0BMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4

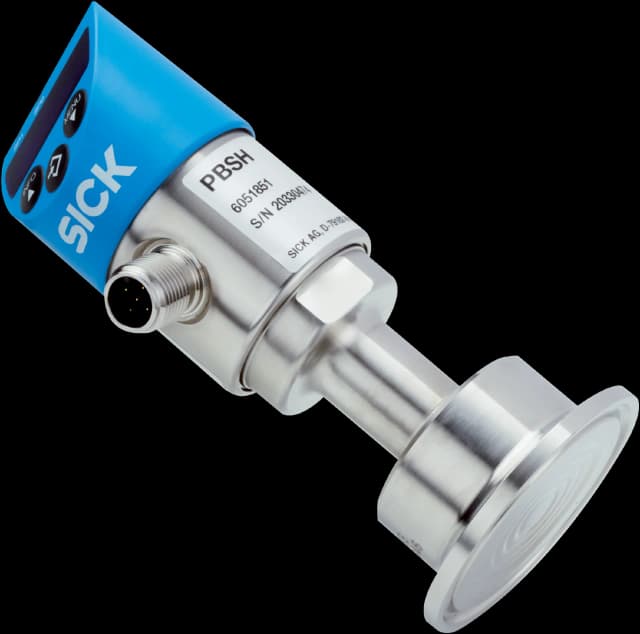

PBSH-AB010ST1S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB010ST1S0BMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connect

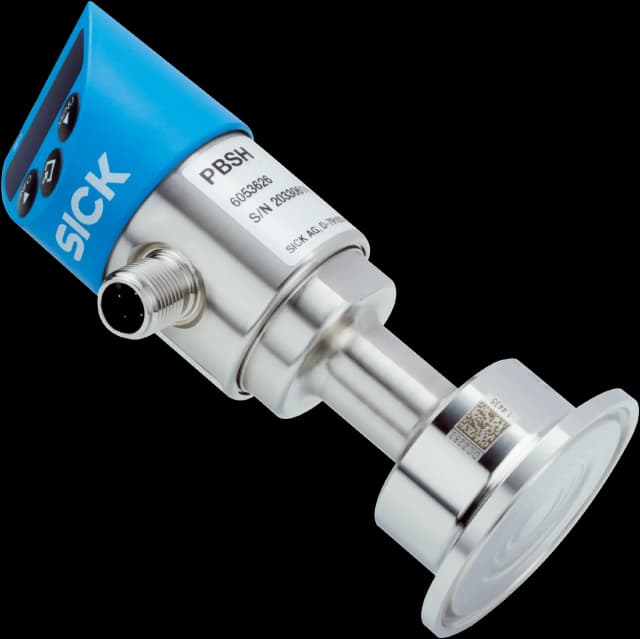

PBSH-AB016SD4S0NMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB016SD4S0NMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Clamp (DIN 32676) DN 40 | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-Link/PNP + 4 mA ... 20 mA |
PBSH-AB025SD3S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB025SD3S0BMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Clamp (DIN 32676) DN 32 | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connection
PBSH-AB025SD4S0NMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB025SD4S0NMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Clamp (DIN 32676) DN 40 | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-Link/PNP + 4 mA ... 20 mA |
PBSH-AB1X0ST1S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB1X0ST1S0BMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connecti
PBSH-AB1X0ST1S0D5A0Z
Pressure sensors | PBS Hygienic | PBSH-AB1X0ST1S0D5A0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 2 x PNP + 4 mA ... 20 mA | Connecti
PBSH-AB1X0ST1S0NMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB1X0ST1S0NMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-Link/PNP + 4 mA ... 20 mA
PBSH-AB2X5SD3S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB2X5SD3S0BMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Clamp (DIN 32676) DN 32 | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connectio

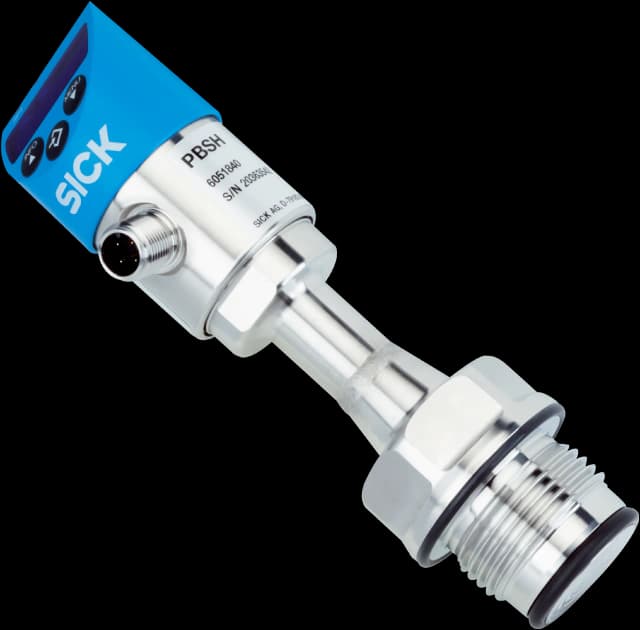

PBSH-CB010SHGEEBMA0Z
Pressure sensors | PBS Hygienic | PBSH-CB010SHGEEBMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 9 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G 1 hygienic flush-mounted | Process temperature: –20 °C ... +125 °C | Seal: EPDM | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connection type
PBSH-CB010SHGEEQ5A0Z
Pressure sensors | PBS Hygienic | PBSH-CB010SHGEEQ5A0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 9 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G 1 hygienic flush-mounted | Process temperature: –20 °C ... +125 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: IO-Link/PNP + PNP + 4 mA ... 20 mA |
PBSH-CB010SHGEFD5A0Z
Pressure sensors | PBS Hygienic | PBSH-CB010SHGEFD5A0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 9 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G 1 hygienic flush-mounted | Process temperature: –20 °C ... +125 °C | Seal: FKM | Communication interface: - | Output signal: 2 x PNP + 4 mA ... 20 mA | Connection type:
