Моторни обратни връзки
Motor Feedback Systems
541 продукта · стр. 1/23

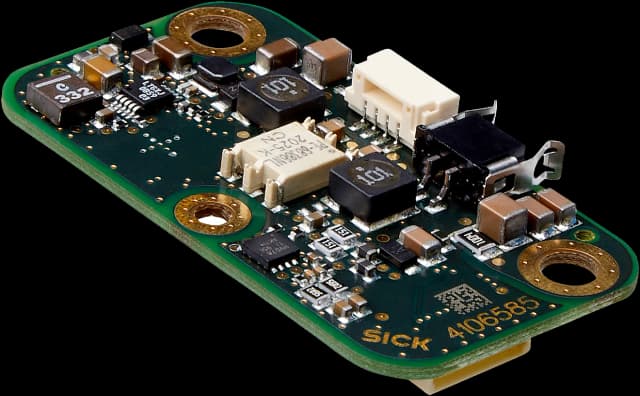

AD-HF2DSL03
Motor feedback systems | sCon | AD-HF2DSL03 | Communication interface: HIPERFACE DSL® | Safety system: no | Connection type: Male connector, 4-pin, output, Male connector, 8-pin, Input | Operating temperature range: –30 °C ... +115 °C | Interpolation factor: 13 bit | Supported products: SES/SEM70, SES/SEM90, STS
EDM35-0KF0A020A
Motor feedback systems | EDS/EDM35 | EDM35-0KF0A020A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 20 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
EDM35-0KF0A024A
Motor feedback systems | EDS/EDM35 | EDM35-0KF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
EDM35-0KF0A0S02
Motor feedback systems | EDS/EDM35 | EDM35-0KF0A0S02 | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 20 bit | Safety system: no | Mechanical design: Customer specific hollow shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery. | Specialty: Customer specific hollow shaft, wi
EDM35-0KF0A0S06
Motor feedback systems | EDS/EDM35 | EDM35-0KF0A0S06 | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery. | Specialty: Customized stator coupling, mounting compatible to
EDM35-0VF0A024A
Motor feedback systems | EDS/EDM35 | EDM35-0VF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 8-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery., Only in combination with <a href="https://www.sick.com/1107310"
EDM35-0ZF0A024A
Motor feedback systems | EDS/EDM35 | EDM35-0ZF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Measuring range: ± 50 g | Technology: Optical | Operating temperature range: –40 °C ... +110 °C | Vibration analysis: Attributes Kurtosis, a-RMS, Peak to peak | Measuring range: 0 –100% relative humidity (% RH) | Items
EDS35-0KF0A020A
Motor feedback systems | EDS/EDM35 | EDS35-0KF0A020A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 20 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
EDS35-0KF0A024A
Motor feedback systems | EDS/EDM35 | EDS35-0KF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
EDS35-0KF0A0S06
Motor feedback systems | EDS/EDM35 | EDS35-0KF0A0S06 | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery. | Specialty: Customized stator coupling, mounting compatible to
EDS35-0ZF0A024A
Motor feedback systems | EDS/EDM35 | EDS35-0ZF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Measuring range: ± 50 g | Technology: Optical | Operating temperature range: –40 °C ... +110 °C | Vibration analysis: Attributes Kurtosis, a-RMS, Peak to peak | Measuring range: 0 –100% relative humidity (% RH) | Items
EEM37-0KF0A015A
Motor feedback systems | EES/EEM37 | EEM37-0KF0A015A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 15 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EEM37-0KF0A017A
Motor feedback systems | EES/EEM37 | EEM37-0KF0A017A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EEM37-0KF0A0S02
Motor feedback systems | EES/EEM37 | EEM37-0KF0A0S02 | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 15 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery. | Specialty: RID 201h, (resource name MANAGEIO): "KTY emulation" from PT1000 to KTY83.
EEM37-0KF0A0S03
Motor feedback systems | EES/EEM37 | EEM37-0KF0A0S03 | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery. | Specialty: RID 201h, (resource name MANAGEIO): "KTY emulation" from PT1000 to KTY83.
EEM37-0KF0B015A
Motor feedback systems | EES/EEM37 | EEM37-0KF0B015A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 15 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EEM37-0KF0B017A
Motor feedback systems | EES/EEM37 | EEM37-0KF0B017A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EES37-0KF0A015A
Motor feedback systems | EES/EEM37 | EES37-0KF0A015A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 15 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EES37-0KF0A017A
Motor feedback systems | EES/EEM37 | EES37-0KF0A017A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EES37-0KF0A0S02
Motor feedback systems | EES/EEM37 | EES37-0KF0A0S02 | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 15 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery. | Specialty: RID 201h, (resource name MANAGEIO): "KTY emulation" from PT1000 to KTY83
EES37-0KF0A0S03
Motor feedback systems | EES/EEM37 | EES37-0KF0A0S03 | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery. | Specialty: RID 201h, (resource name MANAGEIO): "KTY emulation" from PT1000 to KTY83
EES37-0KF0B015A
Motor feedback systems | EES/EEM37 | EES37-0KF0B015A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 15 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EES37-0KF0B017A
Motor feedback systems | EES/EEM37 | EES37-0KF0B017A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 17 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for encoder housing not included with delivery.
EKM36-0KF0B018A
Motor feedback systems | EKS/EKM36 | EKM36-0KF0B018A | Communication interface: HIPERFACE DSL® | Model: Absolute Multiturn | Type: For integration | Resolution per revolution: 18 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –20 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
