Линейни енкодери
Linear Encoders
1319 продукта · стр. 55/55
MAX48N-32V41MP0350
Linear encoders | MAX | MAX48N-32V41MP0350 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 350 mm | Output signal: 9 V DC ... 1 V DC
MAX48N-71A10K10350
Linear encoders | MAX | MAX48N-71A10K10350 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 12 V DC (+8 V DC ... +16 V DC) | Communication interface: - / Current | Connection type: Connecting cable, 3-wire, 300 mm | Measuring range: 0 mm ... 350 mm | Output signal: 0.5 V DC ... 4.5 V DC
MAX48N-71V10BA0350
Linear encoders | MAX | MAX48N-71V10BA0350 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 12 V DC (+8 V DC ... +16 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 350 mm | Output signal: 0.5 V DC ... 4.5 V DC
MAX48N-71V10MA0350
Linear encoders | MAX | MAX48N-71V10MA0350 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 12 V DC (+8 V DC ... +16 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 350 mm | Output signal: 0.5 V DC ... 4.5 V DC

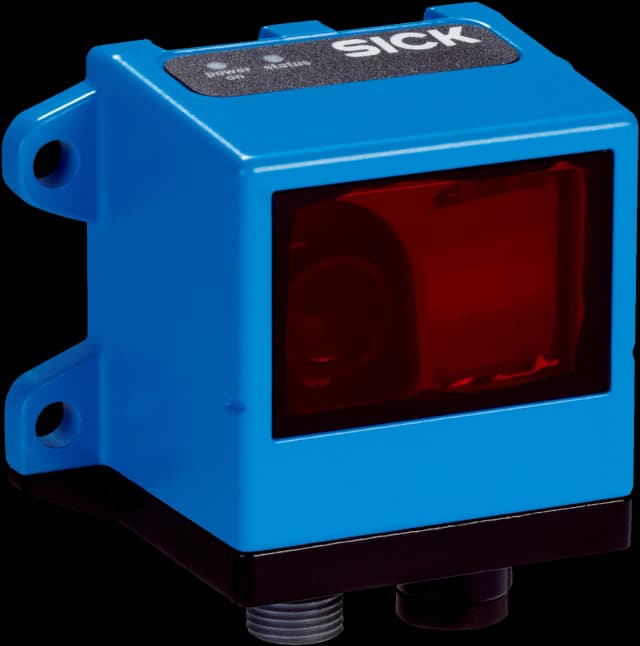

OLM100-1001
OLM | OLM100-1001 | Communication interface: SSI | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
OLM100-1003
OLM | OLM100-1003 | Communication interface: Serial | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 5 ms | Resolution: 0.1 mm, 1 mm
OLM100-1005
OLM | OLM100-1005 | Communication interface: Serial | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 5 ms | Resolution: 0.1 mm, 1 mm
OLM100-1005S01
OLM | OLM100-1005S01 | Communication interface: Serial | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 5 ms | Resolution: 1 mm
OLM100-1006
OLM | OLM100-1006 | Communication interface: CANopen | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
OLM100-1051
OLM | OLM100-1051 | Communication interface: SSI | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 130 mm ± 20 mm | Barcode width: 40 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
OLM100-1201
OLM | OLM100-1201 | Communication interface: SSI | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
OLM100-1201S03
OLM | OLM100-1201S03 | Communication interface: SSI | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Resolution: 0.1 mm, 1 mm
OLM100-1203
OLM | OLM100-1203 | Communication interface: Serial | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 5 ms | Resolution: 0.1 mm, 1 mm
OLM100-1206
OLM | OLM100-1206 | Communication interface: CANopen | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm

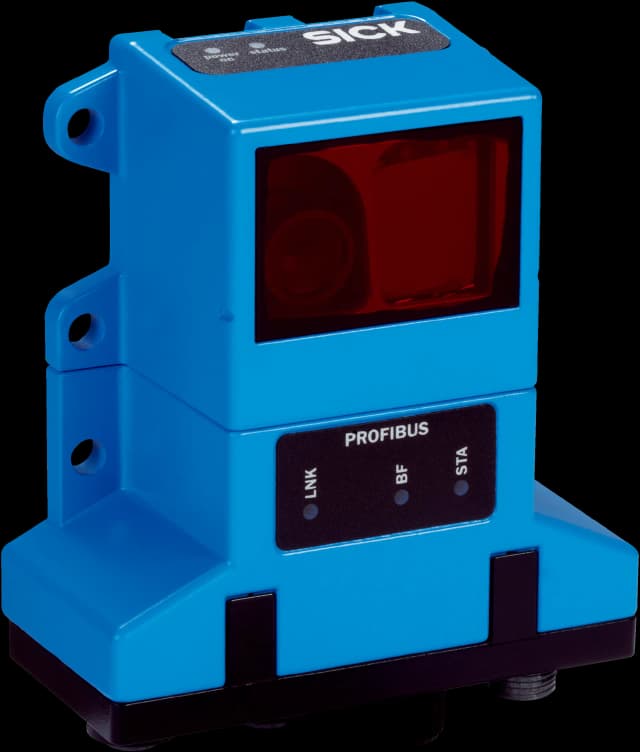

OLM200-1002
OLM | OLM200-1002 | Communication interface: PROFIBUS DP | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 2.5 ms | Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm

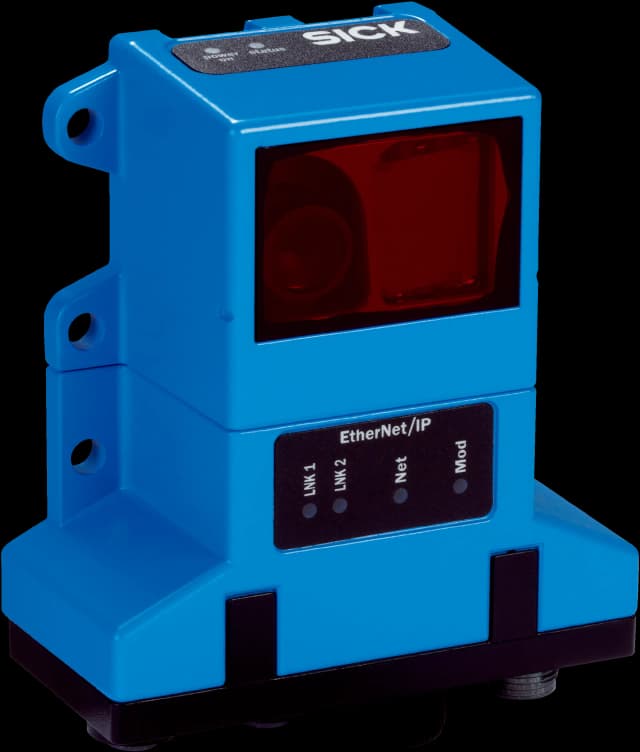

OLM200-1008
OLM | OLM200-1008 | Communication interface: EtherNet/IP™ | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 2.5 ms | Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm

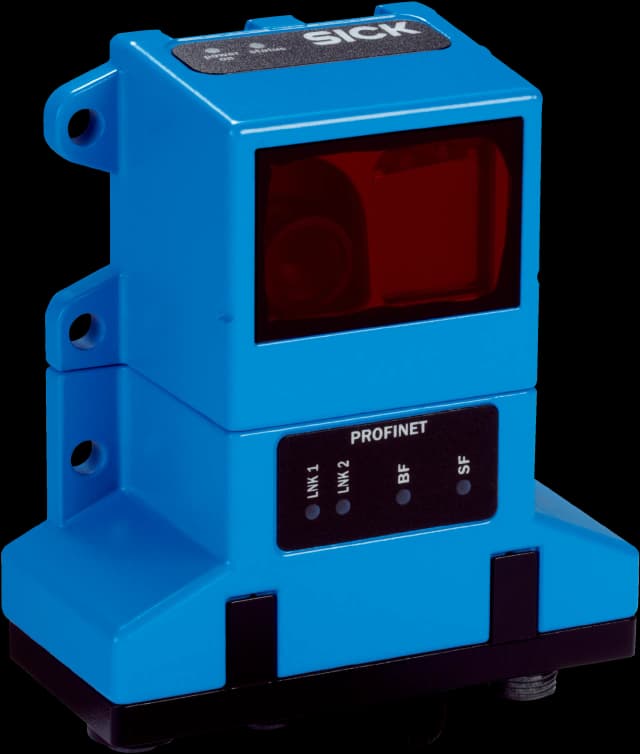

OLM200-1009
OLM | OLM200-1009 | Communication interface: PROFINET | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 2.5 ms | Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm
STL70-0HA8
Linear encoders | STL/ETL70 | STL70-0HA8 | Communication interface: HIPERFACE® | Resolution: 0.448 µm | Safety system: no | Connection type: Male connector, M12, 8-pin, universal | System part: Read head | Technology: Magnet-coded
TTK50-HXJ0-K02
Motor feedback systems | TTK50 | TTK50-HXJ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
TTK50-HXQ0-K02
Motor feedback systems | TTK50 | TTK50-HXQ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 2 m | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
TTK70-AXA0-K02
Linear encoders | TTK70 | TTK70-AXA0-K02 | Communication interface: SSI | Resolution: 1 µm | Safety system: no | Connection type: Male connector, M12, 12-pin | System part: Read head | Technology: Magnet-coded
TTK70-HXA0-K02
Linear encoders | TTK70 | TTK70-HXA0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Male connector, M12, 8-pin | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
TTK70-HXJ0-K02
Linear encoders | TTK70 | TTK70-HXJ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
