Инкрементални енкодери
Incremental Encoders
10229 продукта · стр. 181/427
DBS60E-TECQD1024
Incremental encoders | DBS60 | DBS60E-TECQD1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-TEEA00100
Incremental encoders | DBS60 | DBS60E-TEEA00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEAC0500
Incremental encoders | DBS60 | DBS60E-TEEAC0500 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 500 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-TEEAC1024
Incremental encoders | DBS60 | DBS60E-TEEAC1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-TEEAD1024
Incremental encoders | DBS60 | DBS60E-TEEAD1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-TEEADS149
Incremental encoders | DBS60 | DBS60E-TEEADS149 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 256 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-TEEC02048
Incremental encoders | DBS60 | DBS60E-TEEC02048 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEC05000
Incremental encoders | DBS60 | DBS60E-TEEC05000 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEECC1024
Incremental encoders | DBS60 | DBS60E-TEECC1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-TEECD1024
Incremental encoders | DBS60 | DBS60E-TEECD1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-TEECD2048
Incremental encoders | DBS60 | DBS60E-TEECD2048 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DBS60E-TEEJ00100
Incremental encoders | DBS60 | DBS60E-TEEJ00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEJ01024
Incremental encoders | DBS60 | DBS60E-TEEJ01024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEJC1024
Incremental encoders | DBS60 | DBS60E-TEEJC1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-TEEJD1024
Incremental encoders | DBS60 | DBS60E-TEEJD1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm

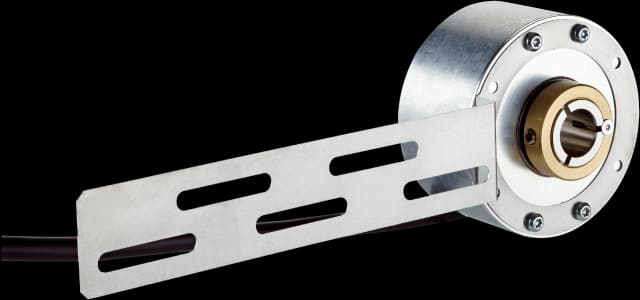

DBS60E-TEEJE0100
Incremental encoders | DBS60 | DBS60E-TEEJE0100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: One-sided stator coupling, slots, slot radius 32.25–142.55 mm, slot width 4.5 mm
DBS60E-TEEK00100
Incremental encoders | DBS60 | DBS60E-TEEK00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEK00360
Incremental encoders | DBS60 | DBS60E-TEEK00360 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 360 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEK01024
Incremental encoders | DBS60 | DBS60E-TEEK01024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEK02500
Incremental encoders | DBS60 | DBS60E-TEEK02500 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEK03600
Incremental encoders | DBS60 | DBS60E-TEEK03600 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 3,600 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEK05000
Incremental encoders | DBS60 | DBS60E-TEEK05000 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TEEKC1000
Incremental encoders | DBS60 | DBS60E-TEEKC1000 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-TEEL00600
Incremental encoders | DBS60 | DBS60E-TEEL00600 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 600 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
