Инкрементални енкодери
Incremental Encoders
10229 продукта · стр. 17/427

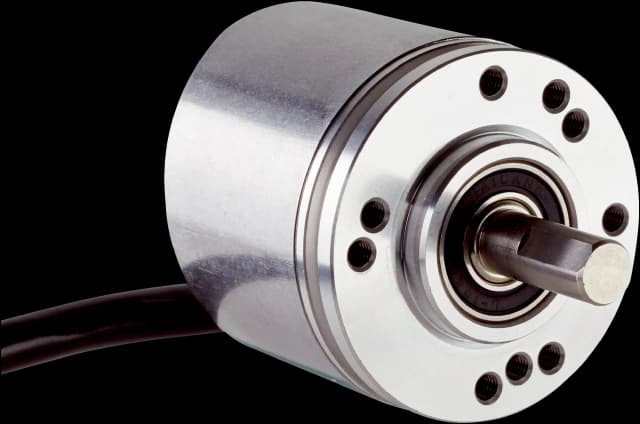

DBS36E-S8AK01024
Incremental encoders | DBS36/50 | DBS36E-S8AK01024 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
DBS36E-S8AL02500
Incremental encoders | DBS36/50 | DBS36E-S8AL02500 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 2,500
DBS36E-S8AP00500
Incremental encoders | DBS36/50 | DBS36E-S8AP00500 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 500
DBS36E-S8AZ00S33
Incremental encoders | DBS36/50 | DBS36E-S8AZ00S33 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Special version | Pulses per revolution: 1,000 | Specialty: Customized encoder flange (replace LD20), AMP-connector, 5-pin, cable, 8-wire, universal 68.8 cm
DBS36E-S8CK02500
Incremental encoders | DBS36/50 | DBS36E-S8CK02500 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500
DBS36E-S8EJ00250
Incremental encoders | DBS36/50 | DBS36E-S8EJ00250 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 250
DBS36E-S8EJ01024
Incremental encoders | DBS36/50 | DBS36E-S8EJ01024 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024
DBS36E-S8EK00200
Incremental encoders | DBS36/50 | DBS36E-S8EK00200 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 200
DBS36E-S8EK01000
Incremental encoders | DBS36/50 | DBS36E-S8EK01000 | Mechanical design: Solid shaft face mount flange 1/4″ x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000

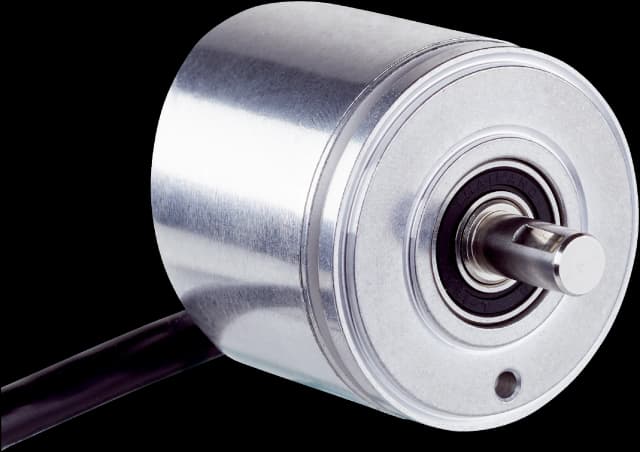

DBS36E-SDAK01000
Incremental encoders | DBS36/50 | DBS36E-SDAK01000 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDAK01500
Incremental encoders | DBS36/50 | DBS36E-SDAK01500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDAK02500
Incremental encoders | DBS36/50 | DBS36E-SDAK02500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDAM02500
Incremental encoders | DBS36/50 | DBS36E-SDAM02500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 2,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDAP02500
Incremental encoders | DBS36/50 | DBS36E-SDAP02500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 2,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDEK01000
Incremental encoders | DBS36/50 | DBS36E-SDEK01000 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDEK01024
Incremental encoders | DBS36/50 | DBS36E-SDEK01024 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDEK01200
Incremental encoders | DBS36/50 | DBS36E-SDEK01200 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,200 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDEK01500
Incremental encoders | DBS36/50 | DBS36E-SDEK01500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDEK02500
Incremental encoders | DBS36/50 | DBS36E-SDEK02500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SDEM02500
Incremental encoders | DBS36/50 | DBS36E-SDEM02500 | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (with feather key groove) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 2,500 | Specialty: For adaption on 1.25 m wire draw
DBS36E-SZAZ0S117
Incremental encoders | DBS36/50 | DBS36E-SZAZ0S117 | Mechanical design: Special version | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Special version | Pulses per revolution: 1,000 | Specialty: Customized encoder flange, customer-specific shaft, Cable, 8-wire, with male connector, SUB-D (without screws), 9-pin, universal, 0.25 m
DBS36E-SZEMZ0S63
Incremental encoders | DBS36/50 | DBS36E-SZEMZ0S63 | Mechanical design: Special version | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 60 | Flange type / stator coupling: Special version | Specialty: 60 pulses per revolution, customized stator coupling, customer-specific shaft, cable, 8-wire, 5 m
DBS36E-SZEZZ0S62
Incremental encoders | DBS36/50 | DBS36E-SZEZZ0S62 | Mechanical design: Special version | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Special version | Pulses per revolution: 60 | Flange type / stator coupling: Special version | Specialty: 60 pulses per revolution, customized stator coupling, customer-specific shaft, Cable, 5-wire, with plug, M16-5p, 0.3 m

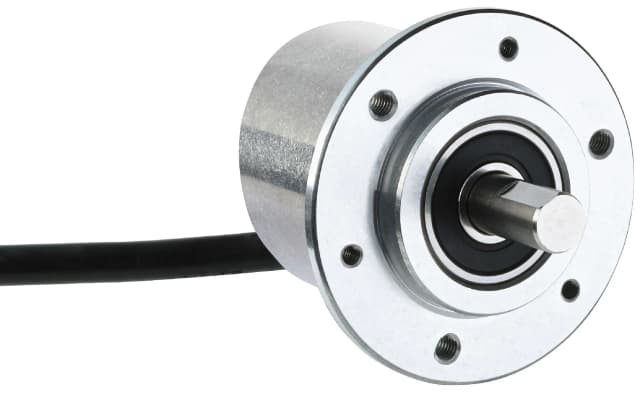

DBS50E-S5AJ00100
Incremental encoders | DBS36/50 | DBS50E-S5AJ00100 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100
