Абсолютни енкодери
Absolute Encoders
3383 продукта · стр. 82/141

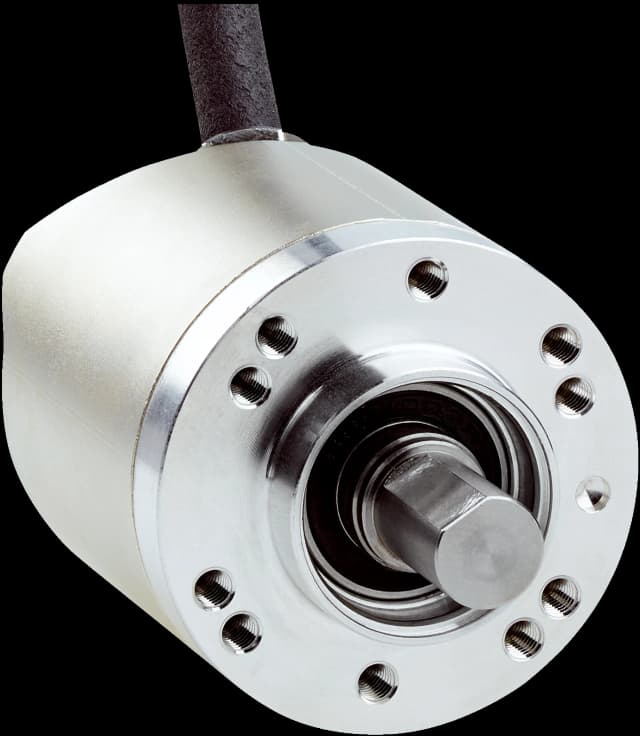

AHM36A-S3PZ000S10
Absolute encoders | AHS/AHM36 | AHM36A-S3PZ000S10 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit (6,680 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: ATM60-A1A0-K19 successor:, premounted adapter flange BEF-FA-020-050 (2072297), Cable, 8-wire, with male connector, M23, univer
AHM36A-S3PZ000S20
Absolute encoders | AHS/AHM36 | AHM36A-S3PZ000S20 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit (6,646 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: ATM60-A1A0-K20 successor:, premounted adapter flange BEF-FA-020-050 (2072297), Cable, 8-wire, with male connector, M23, univer
AHM36A-S3PZ000S21
Absolute encoders | AHS/AHM36 | AHM36A-S3PZ000S21 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit (8,000 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: ATM60-A1A0-K18 successor:, premounted adapter flange BEF-FA-020-050 (2072297), Cable, 8-wire, with male connector, M23, univer
AHM36A-S3PZ000S22
Absolute encoders | AHS/AHM36 | AHM36A-S3PZ000S22 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit (4,900 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: ATM60-A1A0-K21 successor:, Cable, 8-wire, with male connector, M23, universal, 0.1 m, Preconfiguration:- Max. resolution: 4,90
AHM36A-S3PZ000S23
Absolute encoders | AHS/AHM36 | AHM36A-S3PZ000S23 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit (8,000 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: ATM60-A1A00S06 successor:, Cable, 8-wire, with male connector, M23, universal, 0.1 m, Preconfiguration:- Max. resolution: 8000
AHM36A-S3PZ000S24
Absolute encoders | AHS/AHM36 | AHM36A-S3PZ000S24 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit (4,176 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: ATM60-A1A00S10, 1095215 successor:, premounted adapter flange BEF-FA-020-050 (2072297), Cable, 8-wire, with male connector, M2

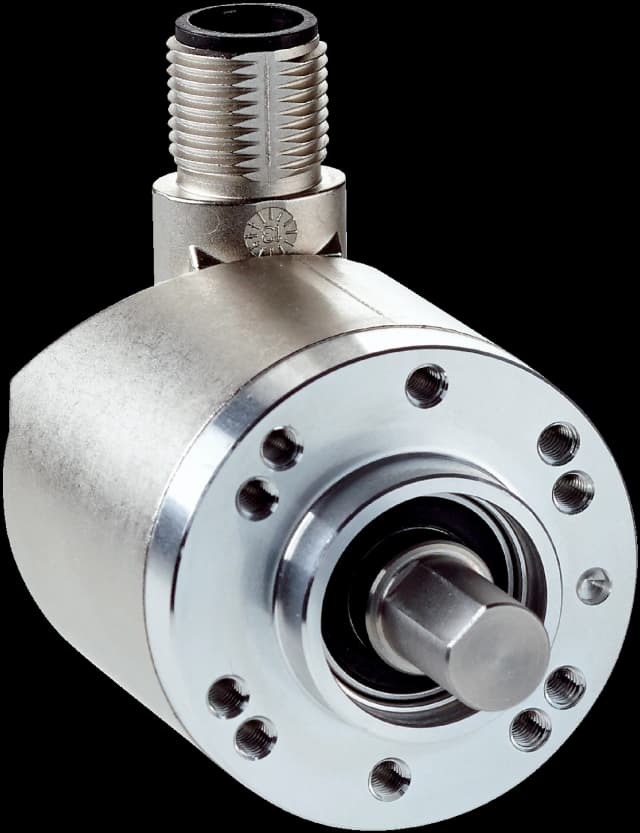

AHM36A-S3QC000A30
Absolute encoders | AHS/AHM36 | AHM36A-S3QC000A30 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis, Smart Task (length measu
AHM36A-S3QC014x12
Absolute encoders | AHS/AHM36 | AHM36A-S3QC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
AHM36A-S3QJ014x12
Absolute encoders | AHS/AHM36 | AHM36A-S3QJ014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Cable, 4-wire, universal, 0.5 m | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
AHM36A-S3QK014x12
Absolute encoders | AHS/AHM36 | AHM36A-S3QK014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Cable, 4-wire, universal, 1.5 m | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
AHM36A-S3QL014x12
Absolute encoders | AHS/AHM36 | AHM36A-S3QL014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Cable, 4-wire, universal, 3 m | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
AHM36A-S3QM014x12
Absolute encoders | AHS/AHM36 | AHM36A-S3QM014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Cable, 4-wire, universal, 5 m | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
AHM36A-S4AC013x12
Absolute encoders | AHS/AHM36 | AHM36A-S4AC013x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, universal
AHM36A-S4AC014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4AC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, universal
AHM36A-S4AK012x12
Absolute encoders | AHS/AHM36 | AHM36A-S4AK012x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m
AHM36A-S4CC000S40
Absolute encoders | AHS/AHM36 | AHM36A-S4CC000S40 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: CANopen, programmable | Connection type: Male connector, M12, 5-pin, universal | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool | Specialty: Preprogrammings as descriped in table
AHM36A-S4CC014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4CC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: CANopen, programmable | Connection type: Male connector, M12, 5-pin, universal | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool
AHM36A-S4PC000S01
Absolute encoders | AHS/AHM36 | AHM36A-S4PC000S01 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 24 mm (With flat) | Communication interface: SSI, programmable | Connection type: Male connector, M12, 8-pin, universal | Programming interface: Over handheld programming tool, over SOPAS | Specialty: Max. resolution: 13 bit x 12 bit (8,192 x 4,096)
AHM36A-S4PC014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4PC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Male connector, M12, 8-pin, universal | Programming interface: Over handheld programming tool, over SOPAS
AHM36A-S4PK014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4PK014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Programming interface: Over handheld programming tool, over SOPAS
AHM36A-S4PL014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4PL014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 3 m | Programming interface: Over handheld programming tool, over SOPAS
AHM36A-S4PM014x12
Absolute encoders | AHS/AHM36 | AHM36A-S4PM014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 5 m | Programming interface: Over handheld programming tool, over SOPAS
AHM36A-S4PZ000S01
Absolute encoders | AHS/AHM36 | AHM36A-S4PZ000S01 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Special version | Programming interface: Over handheld programming tool, over SOPAS | Specialty: Cable, PUR, with male connector, M12, 0.2 m, Max. resolution: 13 bit x 12 bit (8,192 x 4,096)
AHM36A-S4QC000A30
Absolute encoders | AHS/AHM36 | AHM36A-S4QC000A30 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis, Smart Task (length meas
