LiDAR сензори
LiDAR Sensors
126 продукта · стр. 1/6

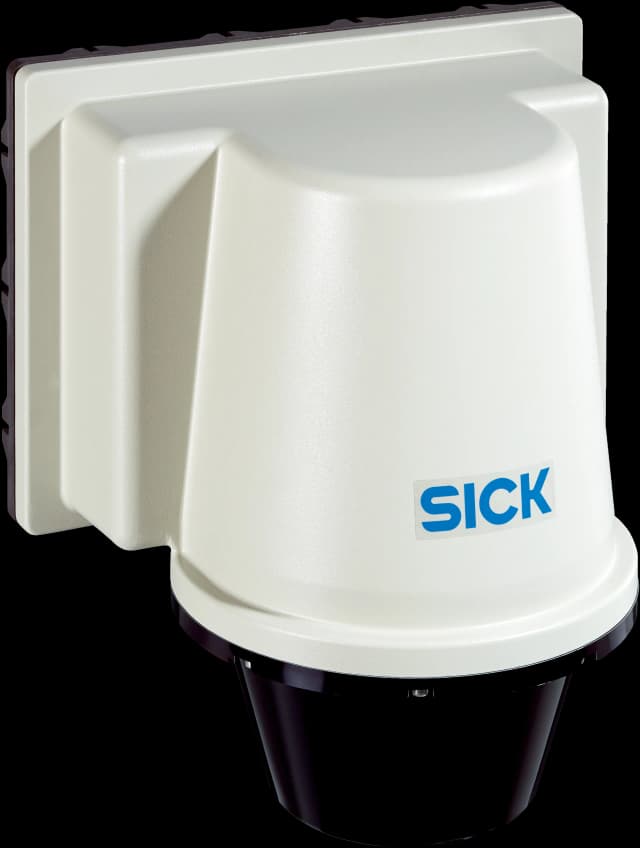

LD-LRS3600
LiDAR sensors | LD-LRS | LD-LRS3600 | Working range: 2.5 m ... 250 m | Enclosure rating: IP67 | Color: Gray (RAL 7032) | Integrated application: Field evaluation | Connection type: 1 x 20-pin Harting plug | Scanning frequency: 5 Hz ... 15 Hz
LD-LRS3601
LiDAR sensors | LD-LRS | LD-LRS3601 | Working range: 2.5 m ... 250 m | Enclosure rating: IP67 | Color: Gray (RAL 7032) | Connection type: 1 x 20-pin Harting plug | Scanning frequency: 5 Hz ... 15 Hz
LD-LRS3611
LiDAR sensors | LD-LRS | LD-LRS3611 | Working range: 5 m ... 250 m | Enclosure rating: IP67 | Color: Gray (RAL 7032) | Connection type: 1 x 20-pin Harting plug | Scanning frequency: 5 Hz ... 15 Hz

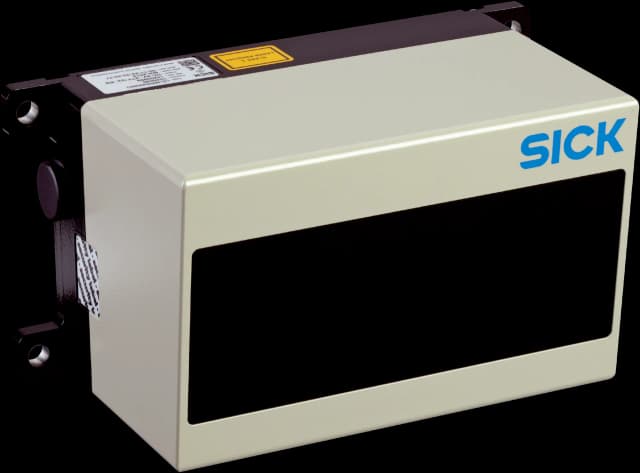

LD-MRS400001
LiDAR sensors | LD-MRS | LD-MRS400001 | Application: Outdoor, Indoor | Integrated application: Field evaluation | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layers | Vertical aperture angle: 3.2° | Amount of evaluated echoes: 3 | Number of field sets: 16 fields | Scanning frequency: 12.5 Hz ... 50 Hz | Enclosure rating: IP69K | Weight: 1 kg
LD-MRS400001S01
LiDAR sensors | LD-MRS | LD-MRS400001S01 | Application: Outdoor, Indoor | Integrated application: Object tracking | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layers | Vertical aperture angle: 3.2° | Amount of evaluated echoes: 3 | Scanning frequency: 12.5 Hz ... 50 Hz, object tracking at 12.5 Hz | Enclosure rating: IP69K | Weight: 1 kg
LD-MRS400102 HD
LiDAR sensors | LD-MRS | LD-MRS400102 HD | Application: Outdoor, Indoor | Integrated application: Field evaluation | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layers | Vertical aperture angle: 3.2° | Amount of evaluated echoes: 3 | Number of field sets: 16 fields | Scanning frequency: 12.5 Hz ... 50 Hz | Enclosure rating: IP69K | Weight: 1 kg
LD-MRS400102S01 HD
LiDAR sensors | LD-MRS | LD-MRS400102S01 HD | Application: Outdoor, Indoor | Integrated application: Object tracking | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layers | Vertical aperture angle: 3.2° | Amount of evaluated echoes: 3 | Scanning frequency: 12.5 Hz ... 50 Hz, object tracking at 12.5 Hz | Enclosure rating: IP69K | Weight: 1 kg

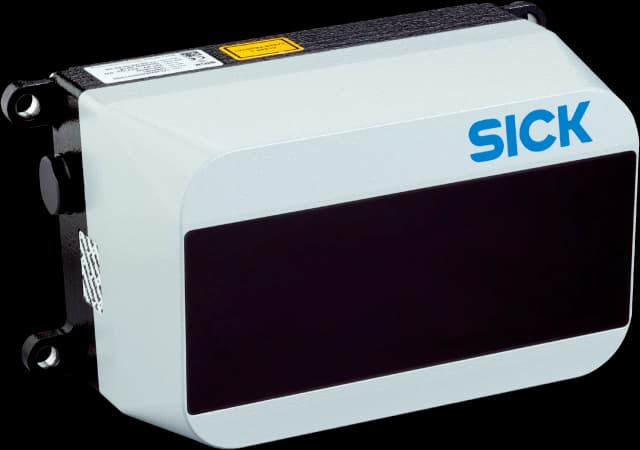

LD-MRS420201
LiDAR sensors | LD-MRS | LD-MRS420201 | Application: Outdoor, Indoor | Integrated application: Object tracking | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layers | Vertical aperture angle: 3.2° | Amount of evaluated echoes: 3 | Scanning frequency: 12.5 Hz ... 50 Hz, object tracking at 12.5 Hz | Enclosure rating: IP69K | Weight: 0.77 kg
LD-MRS800001S01
LiDAR sensors | LD-MRS | LD-MRS800001S01 | Application: Outdoor, Indoor | Integrated application: Object tracking | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 8 scan layers, 25° extension of working range to a total of 110° with 4 scan layers | Vertical aperture angle: 4.2° ... 6.4°, ± 0,2° | Amount of evaluated echoes: 3 | Scanning frequency: 12.5 Hz ... 50 Hz, object tracking at 12.5 Hz | Enclosure rating: IP69K | Weight: 1 kg
LD-MRS820301
LiDAR sensors | LD-MRS | LD-MRS820301 | Application: Outdoor, Indoor | Integrated application: Output of measurement data | Working range: 0.5 m ... 320 m | Horizontal aperture angle: 85°, Working range with 8 scan layers, 25° extension of working range to a total of 110° with 4 scan layers | Vertical aperture angle: 4.2° ... 6.4°, ± 0,2° | Amount of evaluated echoes: 2 | Scanning frequency: 12.5 Hz ... 50 Hz | Enclosure rating: IP69K | Weight: 0.77 kg

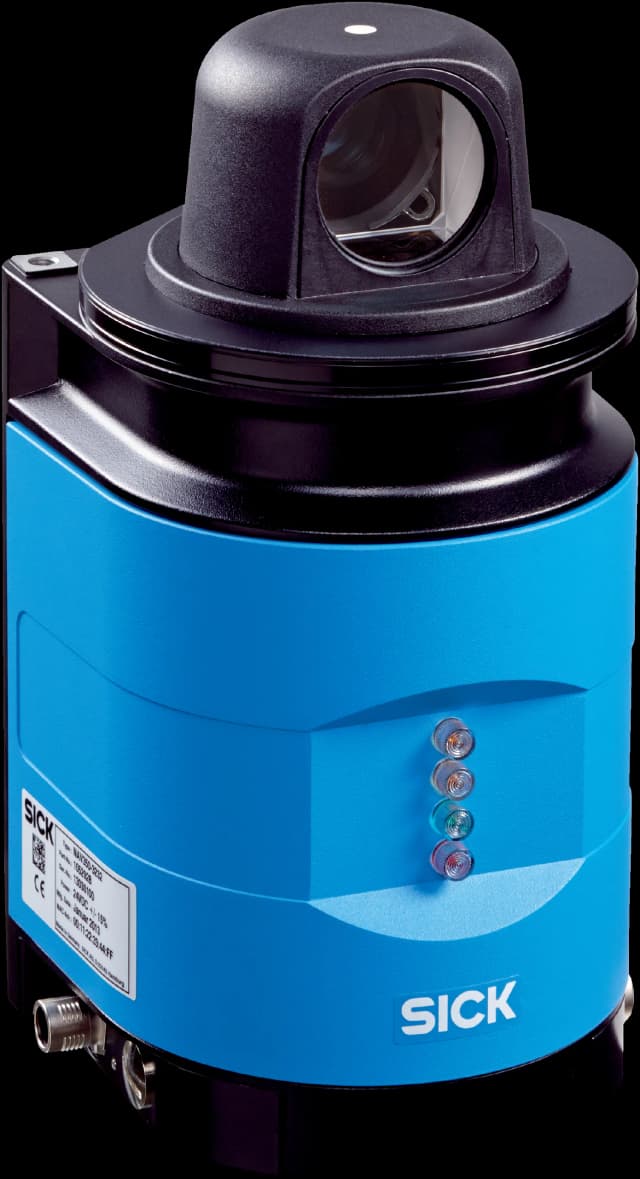

LD-OEM1500
LiDAR sensors | LD-OEM | LD-OEM1500 | Working range: 0.5 m ... 250 m | Enclosure rating: IP65 | Color: Light blue (RAL 5012) | Integrated application: Field evaluation | Connection type: 3 x M12 male connector/female connector | Scanning frequency: 5 Hz ... 20 Hz
LD-OEM1501
LiDAR sensors | LD-OEM | LD-OEM1501 | Working range: 0.5 m ... 250 m | Enclosure rating: IP65 | Color: Light blue (RAL 5012) | Connection type: 3 x M12 male connector/female connector | Scanning frequency: 5 Hz ... 20 Hz

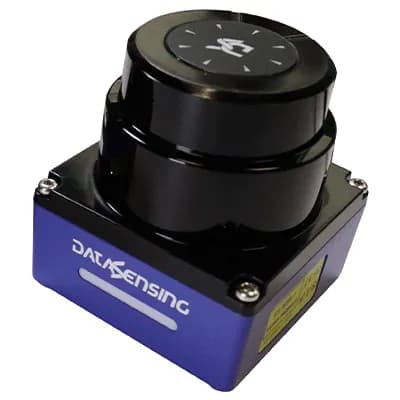

LGS-A10
Compact lidar for collision avoidance and 2D object detection

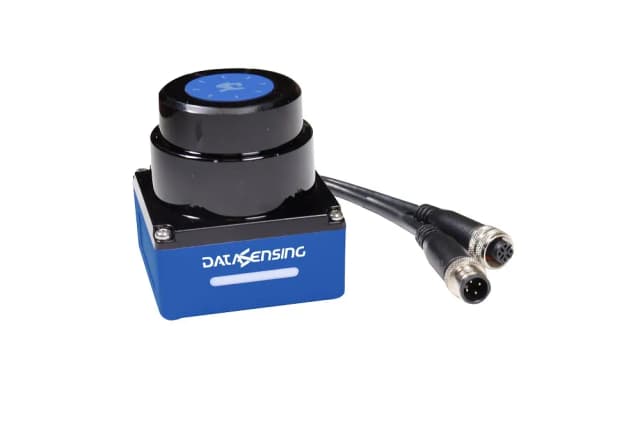

LGS-N25
Compact Lidar for navigation and guidance 25 m
LGS-N50
Lidar for navigation and guidance 50 m
LMC121-11000 VdS
LiDAR sensors | LMC1xx | LMC121-11000 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP65 | Color: Gray (RAL 7032) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x system plug with screw terminal block | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS12x VdS (Indoor), Mounting protection bracket VdS 1 (long)
LMC121-11001 VdS
LiDAR sensors | LMC1xx | LMC121-11001 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP65 | Color: Gray (RAL 7032) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x system plug with screw terminal block | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS12x VdS (Indoor), Mounting protection bracket VdS 2 (short)
LMC122-11000 VdS
LiDAR sensors | LMC1xx | LMC122-11000 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP65 | Color: Black (RAL 9005) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x system plug with screw terminal block | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS12x VdS (Indoor), Mounting protection bracket VdS 1 (long)
LMC123-11000 VdS
LiDAR sensors | LMC1xx | LMC123-11000 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP65 | Color: Signal white (RAL 9003) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x system plug with screw terminal block | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS12x VdS (Indoor), Mounting protection bracket VdS 1 (long)
LMC131-11101 VdS
LiDAR sensors | LMC1xx | LMC131-11101 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP67 | Color: Gray (RAL 7032) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x M12 round connector | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS13x VdS (Outdoor), Mounting protection bracket VdS 2 (short)
LMC132-11101 VdS
LiDAR sensors | LMC1xx | LMC132-11101 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP67 | Color: Black (RAL 9005) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x M12 round connector | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS13x VdS (Outdoor), Mounting protection bracket VdS 2 (short)
LMC133-11101 VdS
LiDAR sensors | LMC1xx | LMC133-11101 VdS | Working range: 0.5 m ... 20 m | Enclosure rating: IP67 | Color: Signal white (RAL 9003) | Integrated application: Field evaluation, security conform parameterization | Connection type: 1 x M12 round connector | Scanning frequency: 50 Hz | Switching mode: 4 digital | Items supplied: LMS13x VdS (Outdoor), Mounting protection bracket VdS 2 (short)
LMS100-10000
LiDAR sensors | LMS1xx | LMS100-10000 | Working range: 0.5 m ... 20 m | Enclosure rating: IP65 | Color: Light blue (RAL 5012) | Integrated application: Field evaluation | Connection type: 1 x system plug with screw terminal block | Scanning frequency: 25 Hz, 50 Hz
LMS101-10000
LiDAR sensors | LMS1xx | LMS101-10000 | Working range: 0.5 m ... 20 m | Enclosure rating: IP65 | Color: Gray (RAL 7032) | Integrated application: Field evaluation | Connection type: 1 x system plug with screw terminal block | Scanning frequency: 25 Hz, 50 Hz
