Серия TiM
24 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
TIM100-3010200
LiDAR sensors | TiM | TIM100-3010200 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 3 m | Number of field sets: 1 | Enclosure rating: IP65 | Digital outputs: 2 (Push-Pull) | Connection type: 1 x 5-pin M12 male device connector (rotatable)
TiM150-3010300
LiDAR sensors | TiM | TiM150-3010300 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Number of field sets: 1 | Enclosure rating: IP65 | Digital outputs: 2 (Push-Pull) | Connection type: 1 x 5-pin M12 male device connector (rotatable)
TiM240-2050300
LiDAR sensors | TiM | TiM240-2050300 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Enclosure rating: IP65 | Digital outputs: 1 (Push-pull, "Device Ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 5-pin, M12 male connector

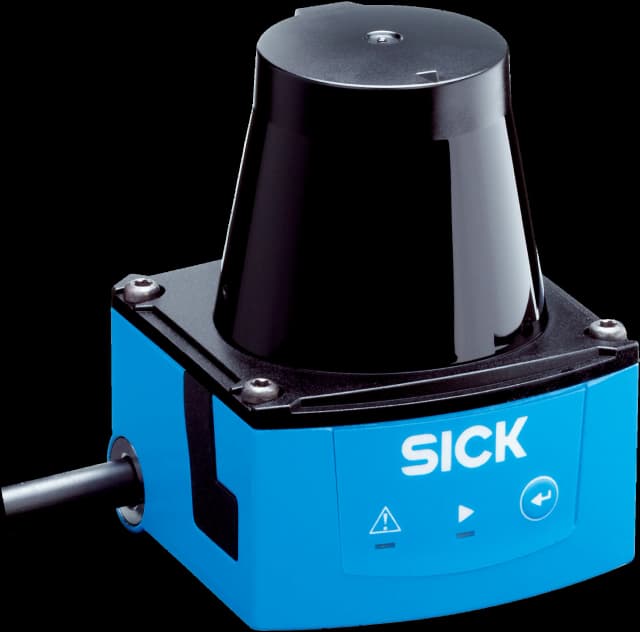

TIM310-0130000S02
LiDAR sensors | TiM | TIM310-0130000S02 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (NPN, additional 1 x “Device Ready”) | Connection type: Open wires (2.0 m)
TIM310-1030000
LiDAR sensors | TiM | TIM310-1030000 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x 15-pin D-sub HD male connector (0.9 m)
TIM310-1030000S02
LiDAR sensors | TiM | TIM310-1030000S02 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (NPN, additional 1 x “Device Ready”) | Connection type: 1 x 15-pin D-sub HD male connector (0.9 m)
TIM310-1130000
LiDAR sensors | TiM | TIM310-1130000 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x M12 12-pin male connector (0.8 m)
TIM320-0131000S02
LiDAR sensors | TiM | TIM320-0131000S02 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (NPN, additional 1 x “Device Ready”) | Connection type: Open wires (2.0 m)
TIM320-1031000
LiDAR sensors | TiM | TIM320-1031000 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x 15-pin D-sub HD male connector (0.9 m)
TIM320-1131000
LiDAR sensors | TiM | TIM320-1131000 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x M12 12-pin male connector (0.8 m)
TIM320-1131000S02
LiDAR sensors | TiM | TIM320-1131000S02 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (NPN, additional 1 x “Device Ready”) | Connection type: 1 x M12 12-pin male connector (0.8 m)

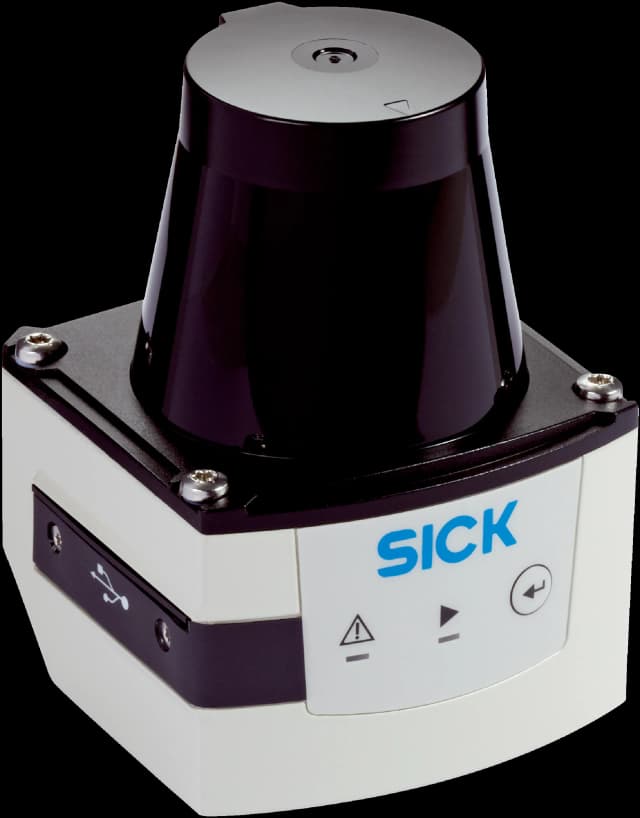

TIM351-2134001
LiDAR sensors | TiM | TIM351-2134001 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
TIM351-2134001S02
LiDAR sensors | TiM | TIM351-2134001S02 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (NPN, additional 1 x “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
TIM361-2134101
LiDAR sensors | TiM | TIM361-2134101 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
TIM361-2134101S02
LiDAR sensors | TiM | TIM361-2134101S02 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (NPN, additional 1 x “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
TIM510-9950000S01
LiDAR sensors | TiM | TIM510-9950000S01 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Enclosure rating: IP65 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x cable with 12-pin M12 male connector (0,3 m), 1 x Micro USB female connector, type B
TIM551-2050001
LiDAR sensors | TiM | TIM551-2050001 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
TiM561-2050101
LiDAR sensors | TiM | TiM561-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
TIM561-2050101S80
LiDAR sensors | TiM | TIM561-2050101S80 | Integrated application: Output of measurement data | Measurement principle: HDDM | Working range: 0.05 m ... 10 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
TiM571-2050101
LiDAR sensors | TiM | TiM571-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM | Working range: 0.05 m ... 25 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
TiM571-9950101S01
LiDAR sensors | TiM | TiM571-9950101S01 | Integrated application: Output of measurement data | Measurement principle: HDDM | Working range: 0.05 m ... 25 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, cable, with RJ45 male connector (1 m), 1 x “Power/Synchronization output” connection, 5-wire cable with open end (1 m), 1 x Micro USB female connector, type B
TiM581-2050101
LiDAR sensors | TiM | TiM581-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 25 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
TIM781-2174101
LiDAR sensors | TiM | TIM781-2174101 | Integrated application: Field evaluation, output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 25 m | Number of field sets: 16 | Enclosure rating: IP67 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
TiM881P-2100101
LiDAR sensors | TiM | TiM881P-2100101 | Integrated application: Programmable | Measurement principle: HDDM+ | Working range: 0.05 m ... 25 m | Enclosure rating: IP67 | Digital outputs: 4 (PNP) | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power”, 12-pin, M12 male connector, 1 x Micro USB female connector, type B
