Серия Mirror

62 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

Показани 1–48 · страница 1 от 2

5309029

BL-M18-ST03

SICK

Reflectors and optics | Mirror | BL-M18-ST03 | Description: Right Angle Mirror for VL18 and VS/VE18

2133805

Cover for Lector mirror module

SICK

Reflectors and optics | Mirror | Cover for Lector mirror module | Description: Cover for Lector mirror module

2148192

Reflectors and optics | Mirror | Deflector mirror | Description: The deflector mirror is used whenever the installation space is insufficient to maintain sufficient working distance. The mirror deflects the light by approx. 90°. | Description: The deflector mirror is used whenever the installation space is insufficient to maintain sufficient working distance. The mirror deflects the light by approx. 90°.

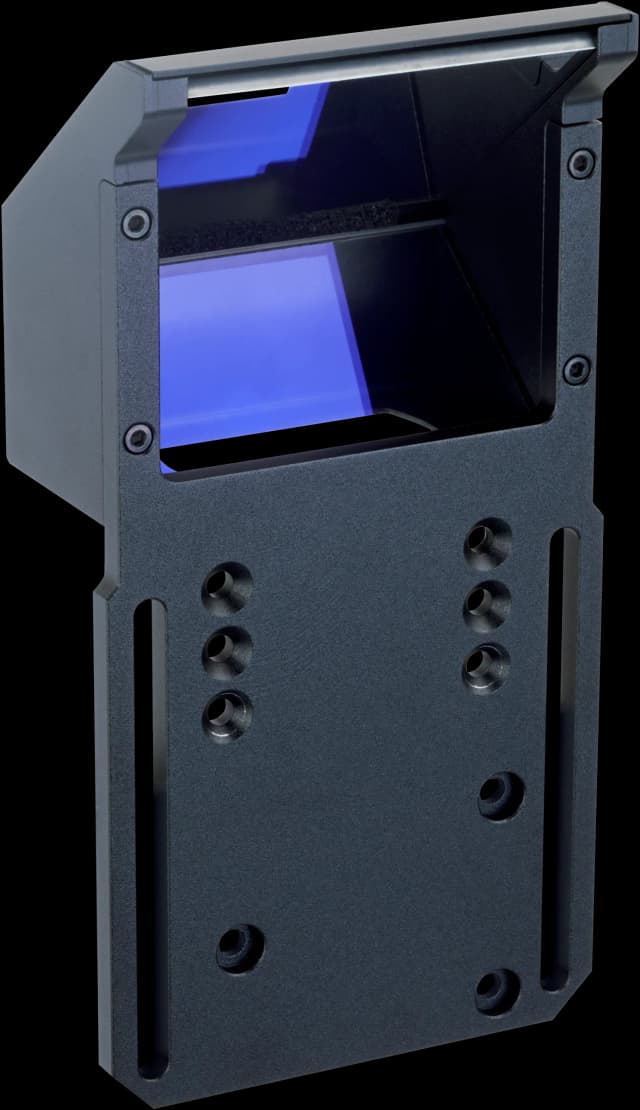

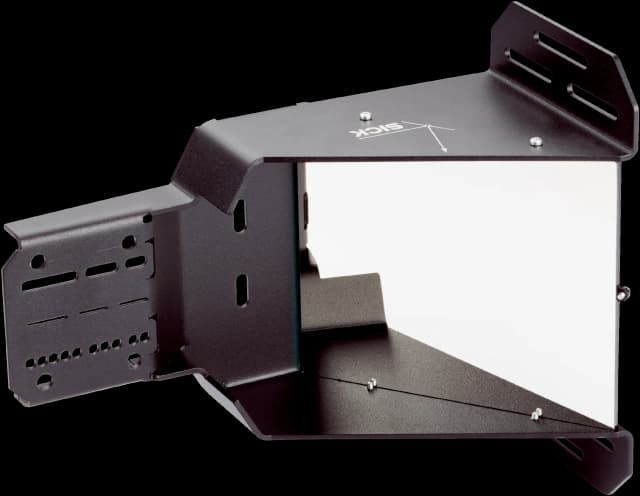

2096970

Deflector mirror

SICK

Reflectors and optics | Mirror | Deflector mirror | Description: The deflector mirror enables the use of cameras even in applications with very limited installation space. If the working distance required for the camera is not possible due to the design, the mirror deflects the optical beam path by approx. 90°. This allows the camera to be mounted flexibly without restricting the required field of view. | Description: The deflector mirror enables the use of cameras even in applications with very

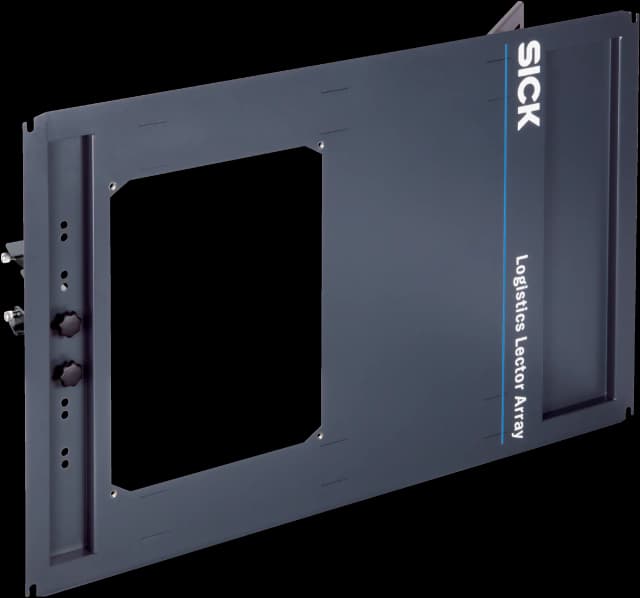

2149116

Lector mirror module 800 mm 2 camera

SICK

Reflectors and optics | Mirror | Lector mirror module 800 mm 2 camera | Description: Lector mirror module 800 mm 2 camera | Mirror length: 800 mm

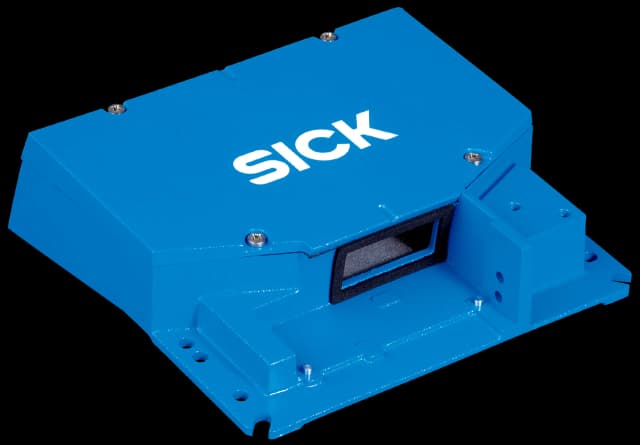

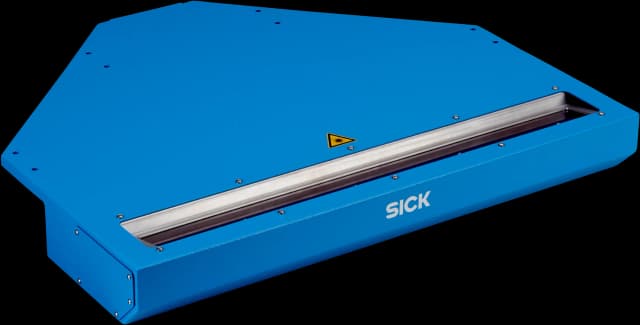

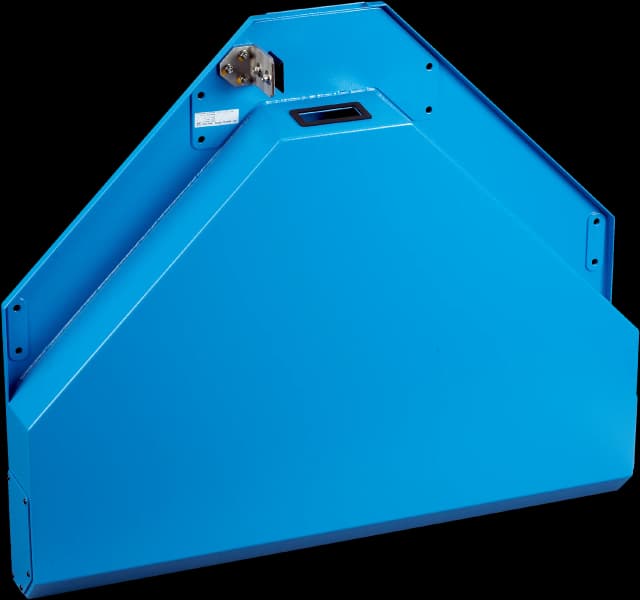

2046811

Mirror hood

SICK

Reflectors and optics | Mirror | Mirror hood | Description: External mirror hood (105°) for reducing reading distance between two closely spaced conveyor belts

2055917

Mirror hood

SICK

Reflectors and optics | Mirror | Mirror hood | Description: Mirror shield with plastic front window (for reducing the mounting area)

2074535

Mirror hood

SICK

Reflectors and optics | Mirror | Mirror hood | Description: External mirror hood (0°) for shortening the reading distance when used between two conveyors located next to each other

2032070

Mirror hood

SICK

Reflectors and optics | Mirror | Mirror hood | Description: Standard mirror shield with glass front window (for reducing the mounting area)

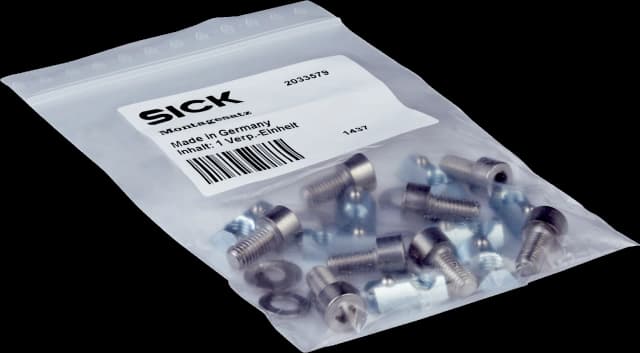

2033579

Mounting set mirror hood

SICK

Reflectors and optics | Mirror | Mounting set mirror hood | Description: Quick-action lock system for mirror hood frame mounting

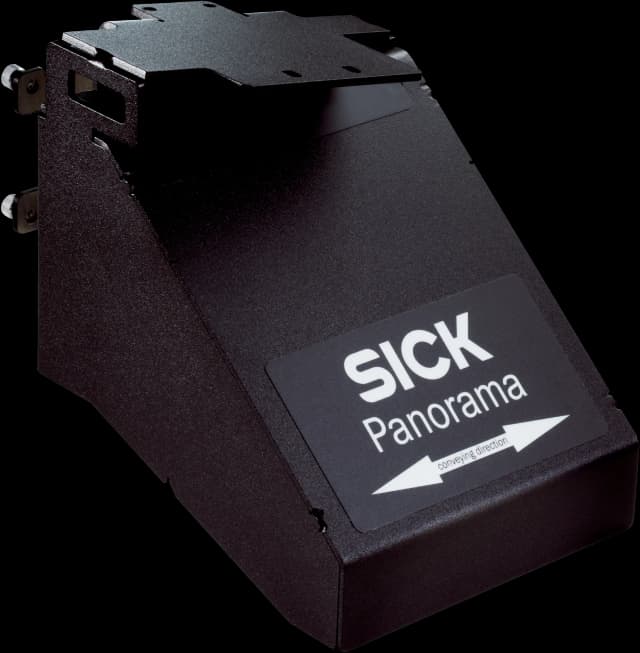

2076621

Panorama 25 mm

SICK

Reflectors and optics | Mirror | Panorama 25 mm | Description: Panorama mirror hood to extend the field of view, useable with lens focal length 25 mm

2076622

Panorama 35 mm/ 40 mm

SICK

Reflectors and optics | Mirror | Panorama 35 mm/ 40 mm | Description: Panorama mirror hood to extend the field of view, useable with lens focal length 35 mm and 40 mm

2076623

Panorama 50 mm / 54 mm

SICK

Reflectors and optics | Mirror | Panorama 50 mm / 54 mm | Description: Panorama mirror hood to extend the field of view, useable with lens focal length 50 mm or 54 mm

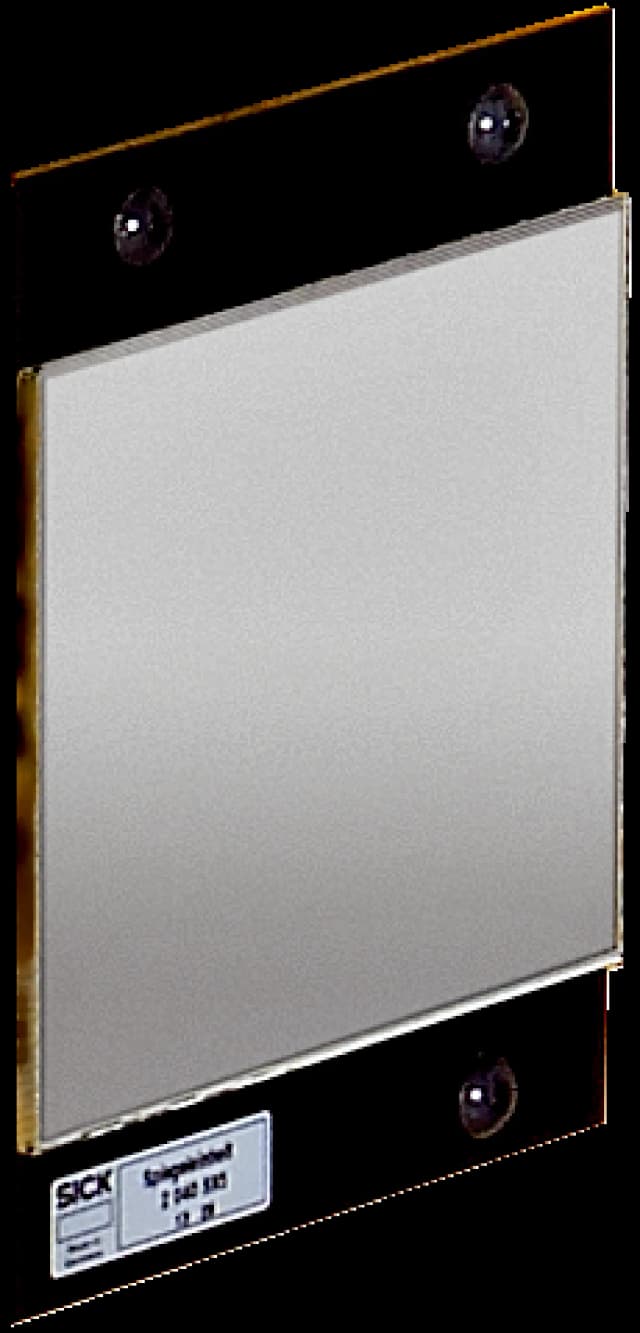

2040593

PM3S mirror unit

SICK

Reflectors and optics | Mirror | PM3S mirror unit | Description: Replacement mirror for PM3S (mirror columns with individual mirrors) | Mirror length: 90 mm

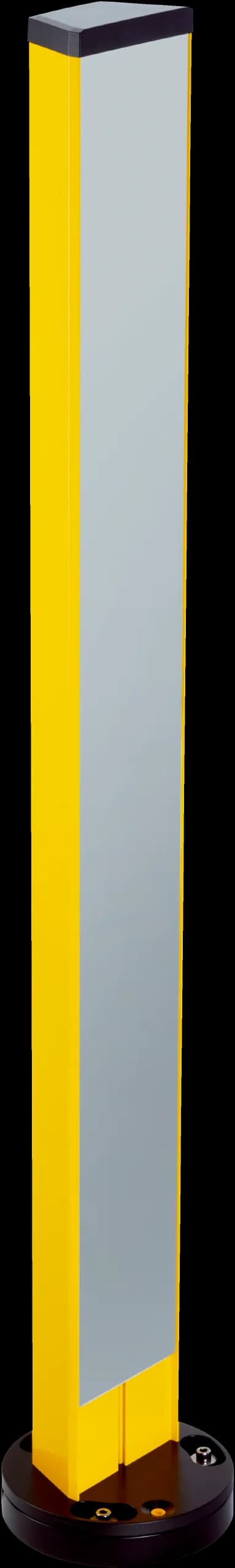

1138910

PM4-A099110000000

SICK

Reflectors and optics | Mirror | PM4-A099110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 994.5 mm | Mirror length: 802 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 2 beams, distance of lowest

1138911

PM4-A109110000000

SICK

Reflectors and optics | Mirror | PM4-A109110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,094.5 mm | Mirror length: 952 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 3 beams, distance of lowes

1138912

PM4-A119110000000

SICK

Reflectors and optics | Mirror | PM4-A119110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,194.5 mm | Mirror length: 1,102 mm | Suitable for deTec safety light curtain: Protective field height ≤ 900 mm | Suitable for deTem safety light-beam sensor: 3 beams, distance of low

1138913

PM4-A129110000000

SICK

Reflectors and optics | Mirror | PM4-A129110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,294.5 mm | Mirror length: 1,102 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,050 mm | Suitable for deTem safety light-beam sensor: 4 beams, distance of l

1138914

PM4-A147110000000

SICK

Reflectors and optics | Mirror | PM4-A147110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,474.5 mm | Mirror length: 1,402 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,200 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:

1138915

PM4-A162110000000

SICK

Reflectors and optics | Mirror | PM4-A162110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,625.5 mm | Mirror length: 1,552 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,350 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:

1138916

PM4-A177110000000

SICK

Reflectors and optics | Mirror | PM4-A177110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,774.5 mm | Mirror length: 1,702 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,500 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:

1138917

PM4-A192110000000

SICK

Reflectors and optics | Mirror | PM4-A192110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,924.5 mm | Mirror length: 1,852 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,650 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:

1138918

PM4-A207110000000

SICK

Reflectors and optics | Mirror | PM4-A207110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 2,074.5 mm | Mirror length: 2,002 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,800 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:

1138919

PM4-A222110000000

SICK

Reflectors and optics | Mirror | PM4-A222110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 2,224.5 mm | Mirror length: 2,152 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,950 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:

1138920

PM4-A237110000000

SICK

Reflectors and optics | Mirror | PM4-A237110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 2,374.5 mm | Mirror length: 2,213 mm | Suitable for deTec safety light curtain: Protective field height ≤ 2,100 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied:
